Radium BMW E36 Fuel Pump Hanger

Radium BMW E36 Fuel Pump Hanger

Application: BMW E36 (1990-1999) – 316i, 318i, 318is, 320i, 323i, 325i, 328i and M3
Part Type: In-tank fuel pump hanger, feed and return sides – fuel pumps not included
Part Number: 20-1170

The Radium E36 fuel pump hanger replaces both the RH and LH fuel hat assemblies and supports one or two aftermarket fuel pumps. It reuses the OEM passive-side and active-side fuel level sensors, keeps a true saddle-tank crossover using new, improved components, and needs no cutting or modification of the vehicle.

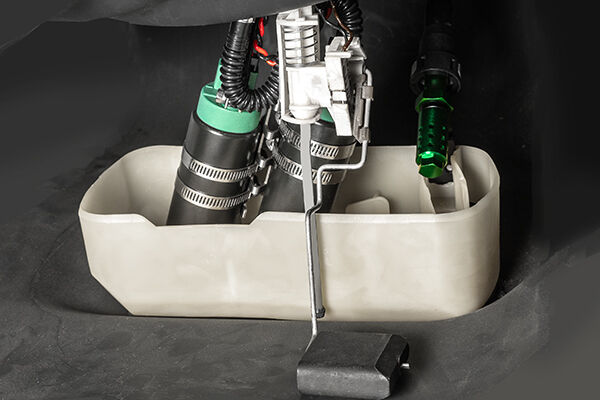

The integrated collector is fed from the OEM collector bowl and its labyrinth, constant low-pressure return fuel from the regulator, and crossover fuel scavenged from the passive side. A new PRV venturi jet pump replaces the OEM unit – its built-in pressure relief valve limits excess return flow that could otherwise pop the OEM connection and strand the car, and it allows low static fuel pressures.

Key Features

• Drop-In Installation: Replaces both fuel hat assemblies with no cutting or modification
• 1 or 2 Pumps: Runs one or two 2-wire brushed or 3-4 wire brushless pumps
• PRV Venturi Jet Pump: Built-in pressure relief valve protects the OEM connection and allows low static pressures
• Starvation Protection: Collector fed by the OEM bowl labyrinth, regulator return and passive-side crossover

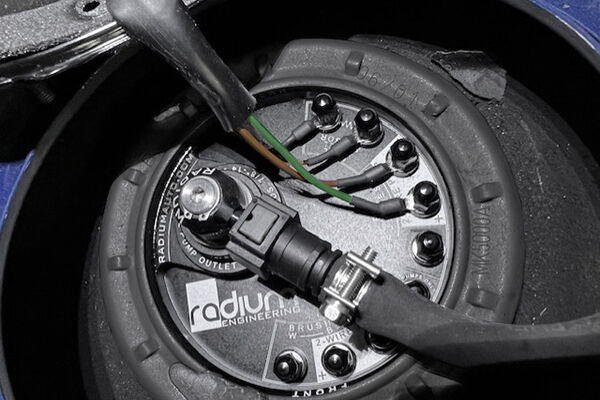

• Pump Outlet: Merged 10AN ORB (7/8"-14) female port with SAE quick-connect barb for the OEM feed line

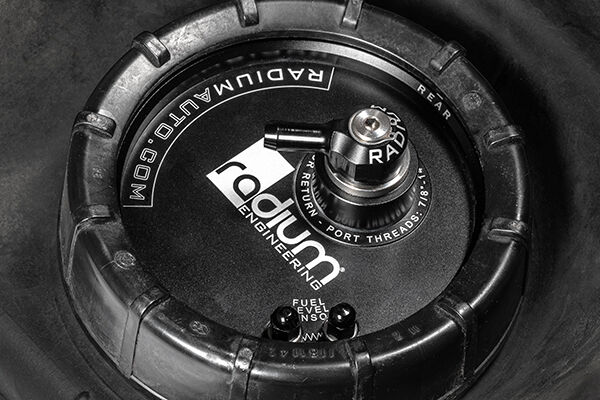

• Return Inlet: 10AN ORB (7/8"-14) female port with 8.5mm barbed adapter for the OEM return line
• Reuses OEM Senders: OEM passive and active-side fuel level sensors are retained
• High-Current Electrical: Hermetically sealed, anti-rotation stainless studs with non-conductive acorn nuts and ETFE wiring
• Fuel Compatibility: Petrol, methanol and E85 compliant

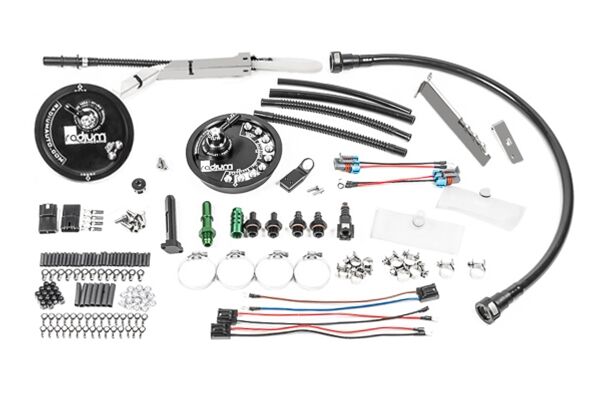

What's Included

• Feed-side and return-side hanger tops, partially assembled
• Complete new jet pump system
• All parts to install 1 or 2 compatible pumps
• Electrical parts kit for external wiring at the hanger top
• Fuel pump filter socks

Optional Parts

• Radium Engineering Check Valve - 6AN ORB to 10mm Barb (20-1534) – replaces the fittings under the fuel hat where a check valve is needed for F90000295 or E5LM pumps
• Radium DIY Fuel Pump Hard Wiring Kit (17-0031) – wiring kit – one per aftermarket pump

Important Notes

• Fuel pumps are not included
• Compatible with OEM BMW (VDO) fuel level senders – not compatible with aftermarket Bosch senders
• Walbro F90000295 and Ti Automotive E5LM pumps have no integrated check valve
• A single pump can reuse the OEM wiring, but upgrading is recommended; a second pump needs its own relay and fuse
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• BMW E36 316i (1990-1999)
• BMW E36 318i (1990-1998)
• BMW E36 318is (1992-1998)
• BMW E36 320i (1991-1998)
• BMW E36 323i (1995-1998)
• BMW E36 325i (1991-1995)
• BMW E36 328i (1995-1998)
• BMW E36 M3 (1992-1999)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
