Radium Toyota Injector Seats, Singles

Radium Toyota Injector Seats, Singles

Application: Toyota 2JZ-GTE, 2JZ-GTE VVT-i, 1JZ-GTE (non VVT-i)
Part Type: Injector seat for top feed conversion (single)
Part Number: 20-0216

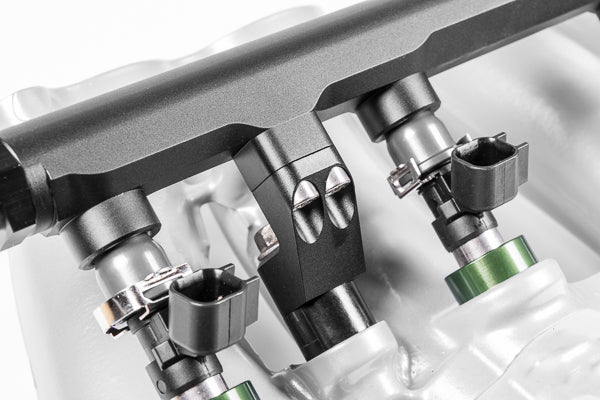

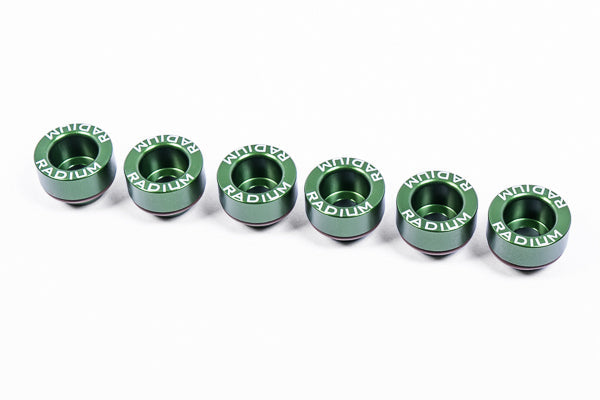

The Radium Toyota Injector Seat is the same machined aluminium seat used in many Radium fuel rails, converting side-feed injector ports to accept top-feed injectors.

The seat press-fits into the intake manifold injector port without modification and seals the counterbore with the included FKM O-ring to prevent vacuum or boost leaks. The bore suits a common 14mm lower injector O-ring. Seats are sold individually – order one per injector.

Key Features

• Top Feed Conversion: Converts side-feed injector ports to top-feed
• Press-Fit Install: No manifold modification required
• FKM O-Ring: Seals against vacuum and boost leaks
• 14mm Lower Bore: Suits common aftermarket top-feed injectors
• CNC 6061 Aluminium: Green anodised with laser etched logo

What's Included

• 1x Toyota injector seat
• 1x FKM O-ring

Important Notes

• Sold individually – one seat is required per injector
• Other Toyota engines may fit but have not been tested by Radium – measure the injector bores against the seat dimensions before ordering
• Clean the injector seat bores and lubricate the O-ring with O-ring lube, petroleum jelly or engine oil, then press in until fully seated (a small rubber mallet may be used)
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Toyota 2JZ-GTE
• Toyota 2JZ-GTE VVT-i
• Toyota 1JZ-GTE (non VVT-i)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
