Radium Top Feed Upgrade Fuel Rails w/Bottom FPD Port - Subaru WRX/STI/Liberty/Forester

Radium Top Feed Upgrade Fuel Rails w/Bottom FPD Port - Subaru WRX/STI/Liberty/Forester

Application: Subaru EJ with OEM top feed injectors – WRX, WRX STI, Forester XT, Legacy GT, Outback XT, Saab 9-2X Aero (see Vehicle Fitment)
Part Type: Top feed upgrade fuel rails (centre lower port)
Part Number: 20-0567-02

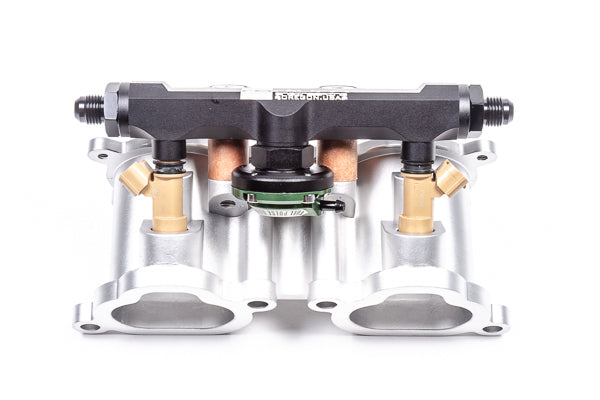

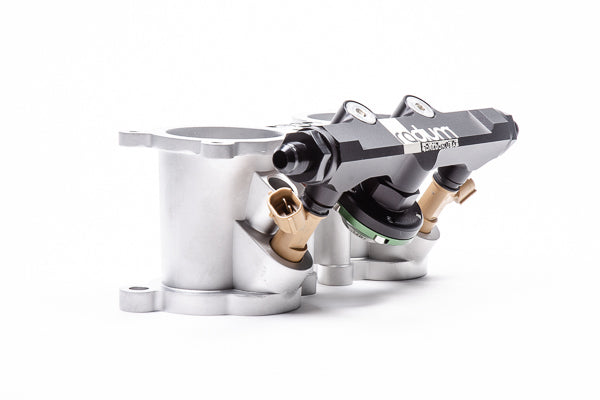

Radium Engineering top feed upgrade rails fit Subaru EJ intake manifolds that already use top feed injectors, and retain the OEM or OEM-equivalent injectors. This version features a centre lower port.

Each rail is machined from 6061 aluminium, black anodised and laser etched, and uses thermal insulating press-in spacers to help insulate the rails from intake manifold heat. The ports are tapped for 8AN ORB fittings, giving flexibility to plumb the regulator, pulse damper and gauge to suit your fuel system.

Key Features

• Top Feed Upgrade: Retains OEM or OEM-equivalent top feed injectors
• Centre Lower Port: Accessory port on the underside of each rail
• Billet Construction: 6061 aluminium, black anodised and laser etched
• 8AN ORB Ports: Flexible fuel system plumbing
• Thermal Spacers: 20mm insulating press-in spacers
• Stainless Hardware: Stainless steel mounting hardware

What's Included

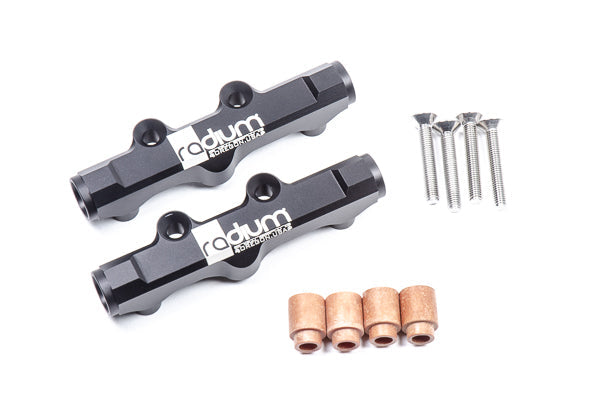

• Black anodised, laser-etched aluminium fuel rails
• 20mm thermal insulating press-in spacers
• Stainless steel hardware

Important Notes

• This is an upgrade rail – OEM or OEM-equivalent injectors must be used (same height and matching upper and lower O-ring diameters and styles)
• Fuel injectors are not included
• Radium does not make injector recommendations – consult your tuner for brand and flow rate
• 8AN ORB fittings are sold separately and must be selected to suit your application
• Allow ample space around the ports for regulators, gauges and pulse dampers – check clearance using Radium's dimensional drawings

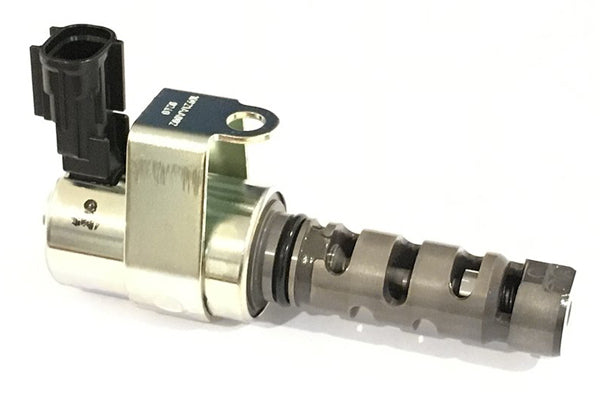

• Not suitable where clearance for the early AVCS solenoid is required (EJ207, JDM EJ205) – use 20-0577-02 for those engines
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Subaru Impreza WRX (USDM) 2002-2014
• Subaru Impreza WRX (JDM/EDM) 2007-2014
• Subaru Impreza WRX STI 2007-2021
• Subaru Forester XT 2006-2013
• Subaru Legacy GT (JDM) 2001-2003
• Subaru Legacy GT 2007-2012
• Subaru Outback XT 2007-2012
• Saab 9-2X Aero 2005-2006

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
