Radium Top Feed Upgrade Fuel Rails - Subaru Liberty/Outback 04-19 (EZ30/36 H6)

Application: Subaru Phase-II EZ30 and EZ36 H6 – Legacy, Outback and Tribeca (see Vehicle Fitment)
Part Type: Top feed upgrade fuel rails (H6)
Part Number: 20-0765-02

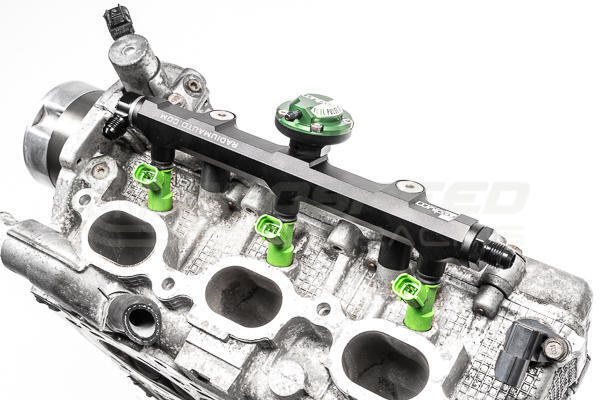

Radium Engineering H6 fuel rails are a high-performance upgrade for the Subaru Phase-II EZ30 and EZ36 flat-six engines. CNC-machined from solid 6061 aluminium and black anodised and laser etched, they feature a large internal bore to support high power levels and are compatible with all fuel types including E85.

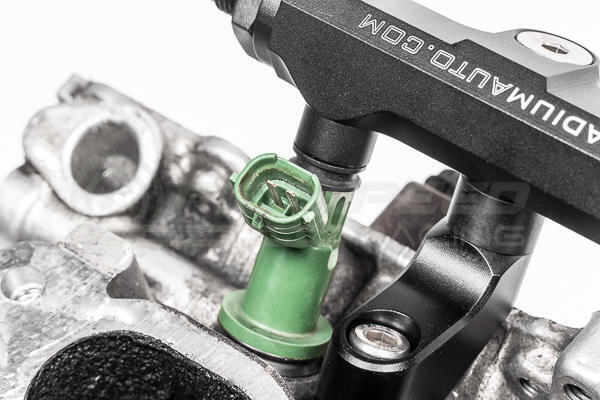

Each rail has three ports tapped for 8AN ORB fittings (six in total), and machined thermal insulating spacers provide injector height flexibility and insulate the rails from engine heat. As an upgrade rail, it retains the OEM or OEM-equivalent injectors.

Key Features

• Large Internal Bore: Supports high power levels
• CNC Billet: Solid 6061 aluminium, black anodised and laser etched
• 8AN ORB Ports: Three per rail, six in total
• Thermal Spacers: 11mm insulating press-in spacers
• Upgrade Rail: Retains OEM or OEM-equivalent injectors
• Fuel Compatibility: Suits all fuel types including E85

What's Included

• Aluminium fuel rails
• 11mm thermal insulating press-in spacers
• Stainless steel mounting hardware

Optional Parts

• Radium 14-0150 8AN ORB Plug, Round Internal Hex (14-0150) – required to plug the front RH head port on EZ30 engines

Important Notes

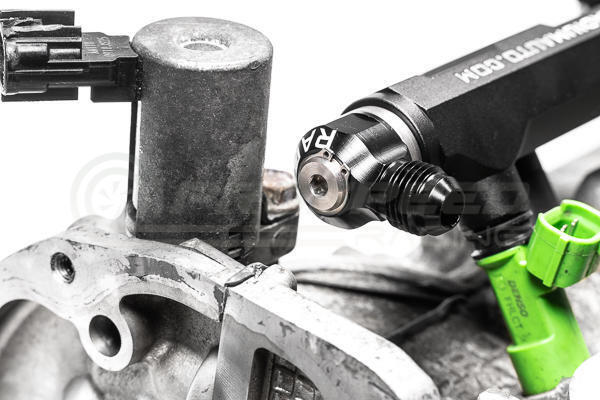

• EZ30 only: the front RH head port sits close to the AVCS solenoid and must be plugged with an 8AN ORB plug (14-0150) – the rails are otherwise AVCS compatible
• This is an upgrade rail – OEM or OEM-equivalent injectors must be used (same height and matching O-ring diameters and styles)
• Fuel injectors are not included. Radium does not make injector recommendations
• 8AN ORB fittings are sold separately and must be selected to suit your application
• Allow ample space around the ports for regulators, gauges and pulse dampers
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Subaru Legacy 3.0R 2004-2009 (EZ30 Phase-II)
• Subaru Outback 3.0R 2004-2009 (EZ30 Phase-II)
• Subaru Legacy 3.6R 2010-2019 (EZ36)
• Subaru Outback 3.6R 2010-2019 (EZ36)
• Subaru Tribeca 2006-2014

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.
