Radium Secondary Fuel Rail 6 Port - Mazda Cosmo JC (20B-REW)
Tax included. Shipping calculated at checkout
Description
Radium Secondary Fuel Rail 6 Port - Mazda Cosmo JC (20B-REW)
Application: Mazda / Eunos Cosmo JC (1990-1995) – 20B-REW with aftermarket 6-port intake manifold
Part Type: Secondary fuel rail, 6-port intake
Part Number: 20-0466

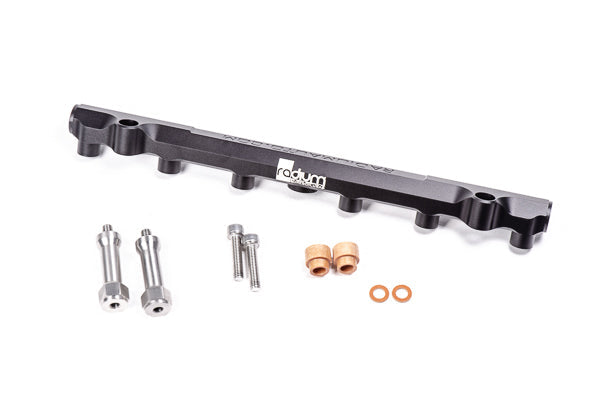

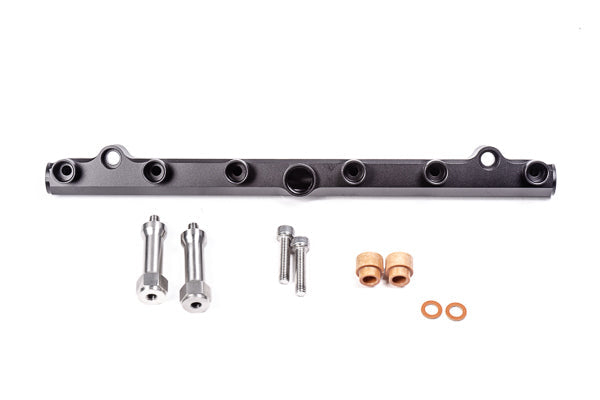

The Radium Engineering secondary fuel rail is designed for aftermarket 6-port intake manifolds on the Mazda 20B-REW three-rotor engine. The aluminium rail is anodised black for compatibility with all popular fuel types including E85, and its large internal bore supports all necessary engine power requirements.

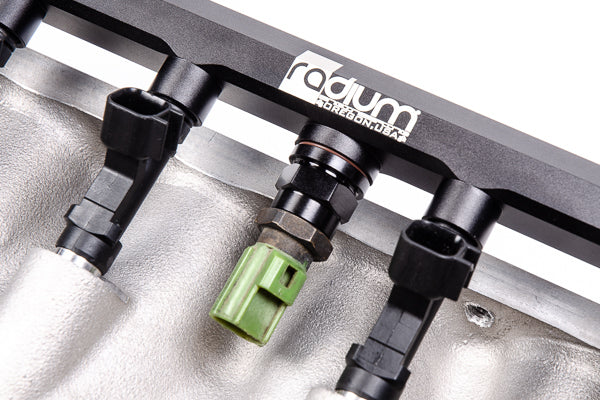

The ports are tapped for 8AN ORB fittings, and the extra centre port accepts accessories such as the OEM fuel temperature sensor, a pressure transducer or a fuel pulse damper.
Key Features

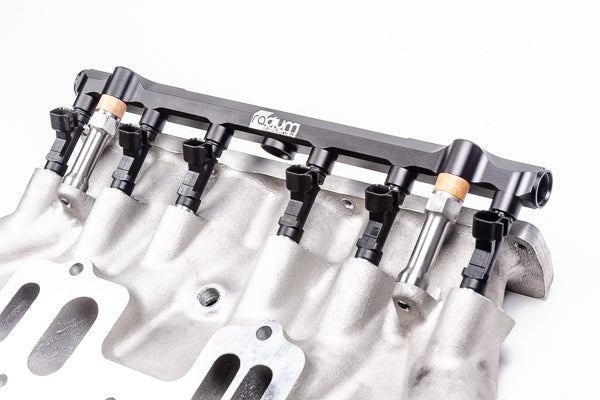

- 6-Port Intake Specific: Designed for aftermarket 6-port 20B-REW intake manifolds
- Large Internal Bore: Supports all necessary engine power requirements
- Aluminium Construction: Anodised black
- 8AN ORB Ports: Including a centre accessory port
- Fuel Compatibility: Suits all popular fuels including E85
Important Notes
- Requires universal top feed injectors 60mm tall with 14mm upper and lower O-rings – e.g. Injector Dynamics 1050-XDS (1050.60.14.14), 1300-XDS (1300.60.14.14), 1700-XDS (1700.60.14.14), 2000-XDS (2000.60.14.14) or 2600-XDS (2600.60.14.14). Many other manufacturers offer compatible injectors
- Not for the OEM intake manifold – an aftermarket 6-port intake manifold is required
- 8AN ORB fittings are sold separately and must be selected to suit your application
- Allow ample space around the ports for regulators, gauges and pulse dampers – check clearance using Radium's dimensional drawings
- Installation instructions are available in the Instructions tab
Vehicle Fitment
- Mazda / Eunos Cosmo JC (1990-1995) – 20B-REW with aftermarket 6-port intake manifold
Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
