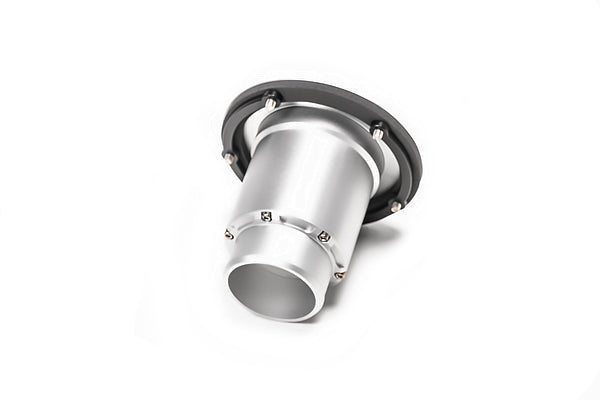

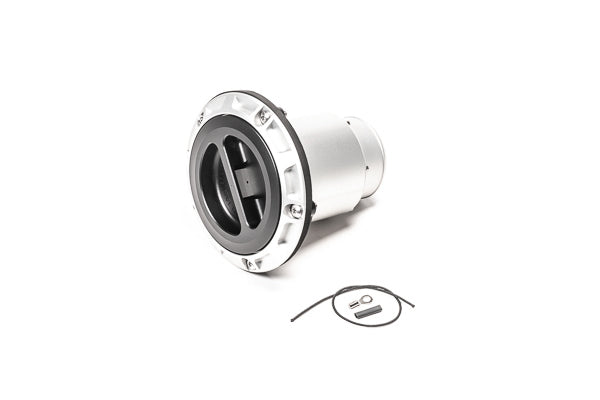

Radium Remote Mount Fuel Filler, 2.25", Vented

Radium Remote Mount Fuel Filler, 2.25", Vented

Application: Universal – remote mounted fuel filler for fuel cells or tanks using 2.25in ID filler hose
Part Type: Remote mount vented standard fuel filler
Part Number: 20-1205-V

A remote mounted fuel filler is not located directly on the fuel tank or fuel cell but somewhere else on the vehicle, such as a guard. The system has three main parts: the remote filler (the housing and cap on the outside of the vehicle), the remote fill neck (the barb or AN connection on the fuel cell or FCST) and the filler hose that joins them.

This Radium Engineering filler uses a threaded vented fuel cap with roll-over protection in case the vehicle is ever inverted. It mounts to the vehicle body and has a machined hose barb for 2.25in filler hose.

Key Features

• Cap: Threaded vented cap with roll-over protection
• Outlet: Machined hose barb for 2.25in ID filler hose
• Mounting: 77mm (3.03in) hole, five stainless M5 bolts on a 108mm (4.25in) PCD with anodised aluminium nut ring
• Flange: 121mm (4.75in) OD
• Height: 104mm (4.1in)
• Swappable Outlet: Outlet adapter can be changed by removing six screws (adapters sold separately)

What's Included

• Vented cap with roll-over protection
• Flanged fill neck for 2.25in ID hose
• Gasket
• Nut ring
• M5 bolts
• Tether components

Optional Parts

• Radium Fuel Cap, Remote Mount, Vented (20-0548-V) – replacement vented cap
• Radium Dry Break, 1.5In, Female, Vented (20-0549-V) – dry break upgrade
• Radium Remote Mount Filler Adapter, 1.5" (20-1015) – outlet adapter for 1.5in hose
• Radium Engineering Remote Mount Filler Adapter - 24AN (20-1008) – 24AN outlet adapter

Important Notes

• Fill necks, hose and other tank-side accessories are not included
• Mount on a relatively flat surface higher than the fuel tank fill point; Radium's instructions call for a 77mm (3.03in) hole and five 6mm (1/4in) bolt holes
• Can be upgraded to a dry break filler with the Radium 20-0549-V
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
