Radium Remote Mount Fill Neck - Straight - 1.5" Barb

Radium Remote Mount Fill Neck - Straight - 1.5" Barb

Application: Radium FCST fuel cell surge tanks with 6-bolt fill neck (20-014X-XX, 20-049X-XX, 20-069X-XX, 20-099X-XX)
Part Type: 6-bolt remote mount fill neck, straight 1.5" barb
Part Number: 20-0527

A remote-mounted fuel filler sits away from the fuel cell, typically on a guard or body panel, and is made up of three parts: the remote filler on the vehicle's exterior, the remote fill neck on the fuel cell, and the filler hose joining the two.

This Radium Engineering fill neck bolts to the 6-bolt fill flange on Radium FCST fuel cell surge tanks and connects to 1.5" ID filler hose via a straight barb. It is sealed with an FKM gasket and fitted with an FKM flapper valve, and is used together with a body-mounted remote filler.

Key Features

• FCST 6-Bolt Flange: Bolts to the 6-bolt fill flange on Radium FCST tanks
• Straight 1.5" Barb: Suits 1.5" (38mm) ID filler hose
• FKM Flapper Valve: Integrated flapper valve in the fill neck
• FKM Gasket Seal: Fuel-resistant flange seal
• Stainless Hardware: Stainless steel mounting hardware
• Fuel Compatibility: Petrol (leaded and unleaded), diesel, AV gas, methanol, ethanol, E15 and E85

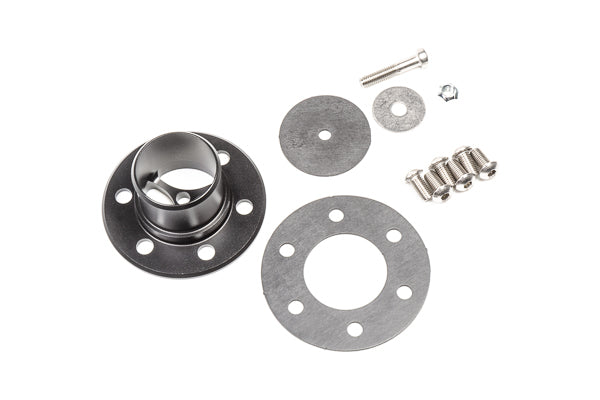

What's Included

• 1x Flanged fill neck for 1.5" ID hose
• 1x FKM gasket flange seal
• 1x FKM flapper valve
• Stainless steel hardware

Optional Parts

• Radium Fuel Fill Neck Hose Kit - 1.5" ID (20-0597) – reinforced black 1.5" filler hose with T-bolt clamps
• Radium Fuel Fill Neck Hose Kit, 1.5in, Clear (20-0602) – clear 1.5" filler hose with T-bolt clamps
• Radium Gasket For 6-Bolt Fill Neck, 2.18" BC (18-0019) – replacement FKM gasket for the 6-bolt fill neck
• Radium FCST Fuel Cell Surge Tank Fill Neck Block Off Kit (20-0360) – blocks the FCST 6-bolt fill hole if a fill neck is not used

Important Notes

• For the original Radium FCST only – not compatible with the FCST-X, which uses 3-bolt fill necks (20-1027 / 20-1047)
• Used with a body-mounted remote filler, which is not included
• Filler hose is sold separately
• Radium remote fillers require a 77mm (3.03") hole to be fabricated in the body panel
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Radium FCST 20-014X-XX
• Radium FCST 20-049X-XX
• Radium FCST 20-069X-XX
• Radium FCST 20-099X-XX

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
