Radium Primary Top Feed Conversion Fuel Rail - Mazda Cosmo JC (20B-REW)

Radium Primary Top Feed Conversion Fuel Rail - Mazda Cosmo JC (20B-REW)

Application: Mazda / Eunos Cosmo JC (1990-1995) – 20B-REW
Part Type: Top feed conversion primary fuel rail
Part Number: 20-1120

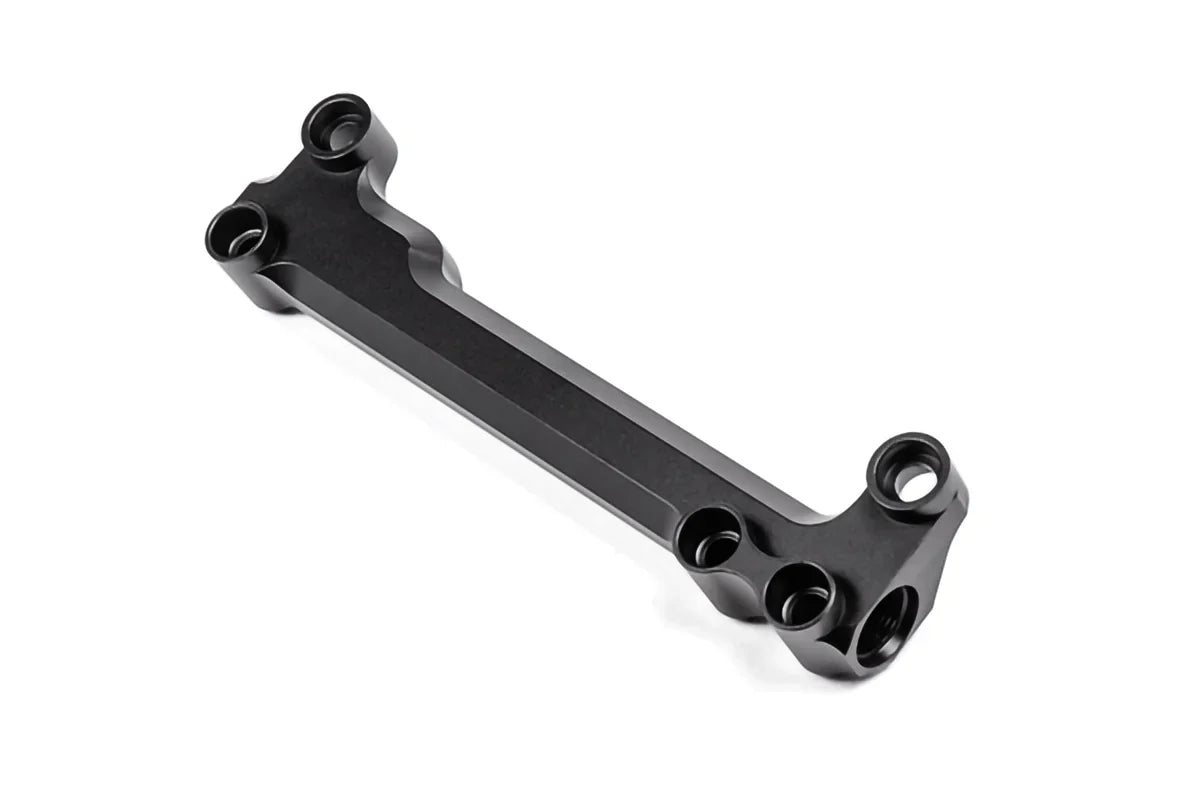

The Radium Engineering high-flow primary fuel rail suits the 20B-REW three-rotor engine found in the 1990-1995 Mazda/Eunos Cosmo. The aluminium rail is anodised black for compatibility with all popular fuel types including E85, and its large internal bore supports all necessary engine power requirements.

Thermal insulating spacers and washers are included with stainless steel hardware to help prevent heat conducting into the fuel. The included 14mm lower injector seats are designed to work with or without the OEM diffusers in place, and use FKM O-rings suitable for boosted applications. Three 8AN ORB ports are provided – the extra centre port accepts accessories such as the OEM fuel temperature sensor, a pressure transducer or a Radium fuel pulse damper.

Key Features

• Large Internal Bore: Supports all necessary engine power requirements
• Billet Aluminium: Anodised black, compatible with all popular fuels including E85
• 8AN ORB Ports: Three ports including a centre accessory port
• Thermal Insulation: Insulating spacers and washers with stainless steel hardware
• Injector Seats: 14mm lower seats work with or without the OEM diffusers
• Boost Ready: FKM O-rings suitable for boosted applications

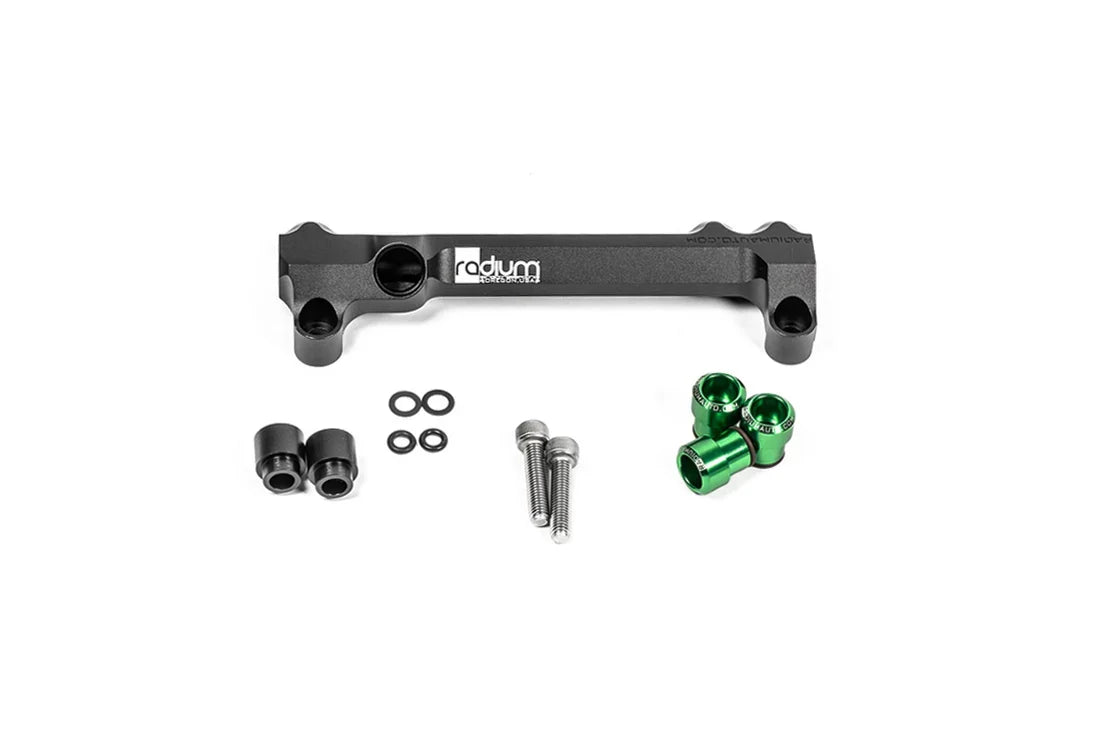

What's Included

• Anodised billet aluminium fuel rail
• Anodised billet aluminium injector seats
• Thermal spacers
• Mounting hardware

Optional Parts

• Radium 14-0421 8AN ORB to M12x1.5mm Female Fitting (14-0421) – fits the OEM fuel temperature sensor to the centre port

Important Notes

• Fuel injectors are NOT included
• Requires universal top feed injectors 34mm tall with 14mm O-rings – e.g. Injector Dynamics 1050-XDS (1050.34.14.14), 1300-XDS (1300.34.14.14), 1700-XDS (1700.34.14.14) or 2600-XDS (2600.34.14.14)
• 8AN ORB adapter fittings are sold separately and must be selected to suit your application
• Allow ample space around the ports for regulators, gauges and pulse dampers – check clearance using Radium's dimensional drawings
• Radium part 20-1120 replaces the earlier 20-0464
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Mazda / Eunos Cosmo JC (1990-1995) – 20B-REW

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
