Radium Port Injection Kit, EcoBoost

Radium Port Injection Kit, EcoBoost

Application: Ford EcoBoost – Focus ST, Focus RS, Mustang EcoBoost and Ranger 2.3L
Part Type: Port injection kit (adapter plate and fuel rail)
Part Number: 20-0326

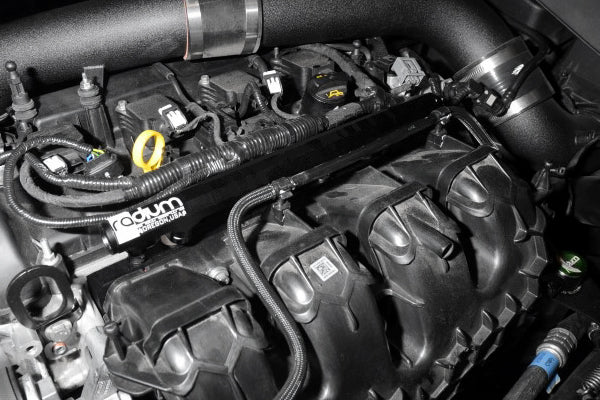

The Radium Port Injection Kit (PIK) mounts between the intake manifold and cylinder head to add port injectors, supplying additional fuel for high-horsepower Ford EcoBoost builds. It does not replace the OEM direct injection system – it works alongside it.

The CNC-machined 6061 aluminium adapter has a smoothed port divider for laminar flow, so injector spray divides evenly across the runners, and its angled air passages are CAD-matched to the intake ports and manifold to minimise any flow impact. Pressed-in stainless steel dowels ease alignment, and on the Focus the OEM engine covers can be retained for a stealth look. Compatible with all fuel types including E85.

Key Features

• Supplements OEM DI: Adds port injection without replacing the direct injection system

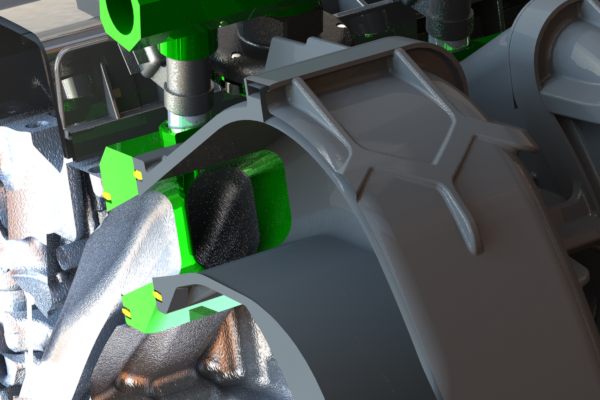

• CAD-Matched Passages: Angled air passages matched to the intake ports and manifold

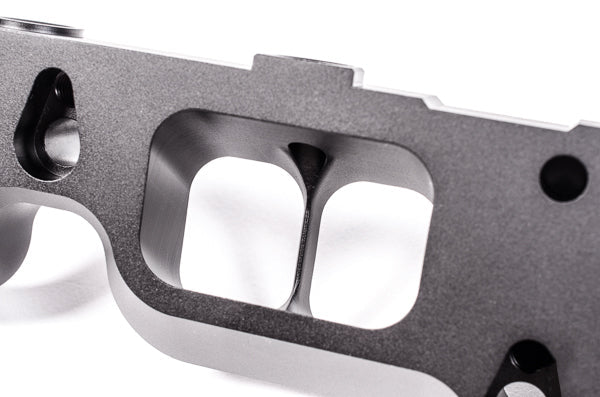

• Even Spray Distribution: Smoothed port divider and injectors mounted at maximum angle
• Custom Fuel Rail: Three 8AN ORB ports – both ends and centre
• Heat Isolation: Machined insulating spacers and washers isolate the fuel rail from the head

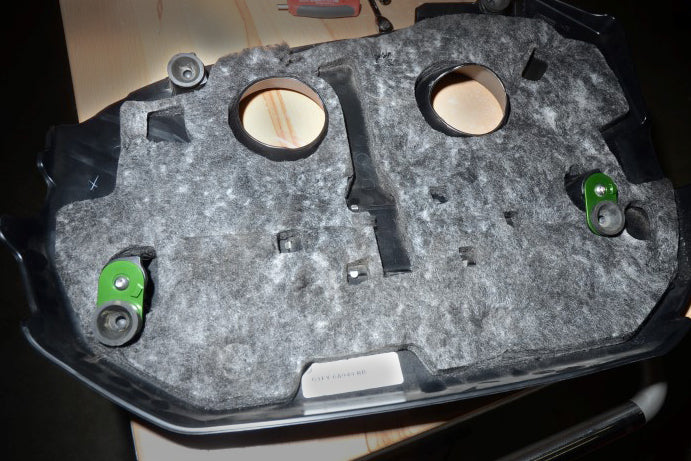

• OEM Engine Cover Retained: Adapter brackets relocate the Focus engine cover grommets
• All Fuel Types: Compatible with alcohol blends including E85

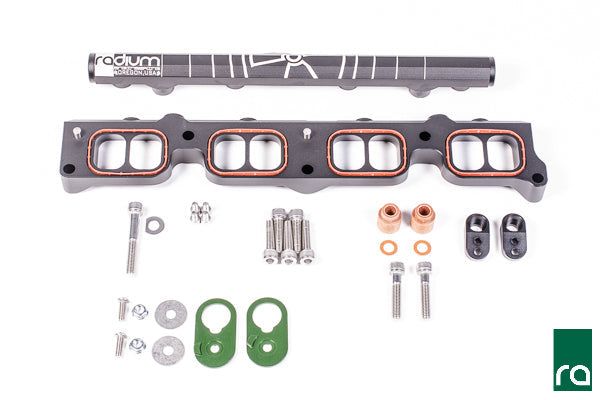

What's Included

• PIK adapter plate (CNC-machined 6061 aluminium) with pressed stainless steel dowels
• Custom fuel rail
• Fuel rail mounting hardware
• OEM Ford gaskets
• Machined insulating mounting spacers and washers
• CNC-machined aluminium adapter brackets (relocate OEM Focus engine cover grommets)

Optional Parts

• Injector Dynamics XDS Fuel Injectors- Universal Fitment- ID1050 / 1300 / 1750 / 2600cc Options (1050.34.14.14 / 1300.34.14.14 / 2600.34.14.14) – Compatible 34mm, 14mm O-ring injectors listed by Radium

Important Notes

• Fuel injectors, port fittings, fuel hose, wiring and injector controller are not included
• Injectors must have 14mm upper and lower O-rings and the short 34mm body height – Radium lists Injector Dynamics ID1050-XDS, ID1300-XDS, ID1700-XDS and ID2600-XDS as compatible
• Ford Ranger installations require a slight tweak to the HPFP fuel line bend for clearance
• Allow enough clearance around the fuel rail ports for regulators and gauges
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Ford Focus ST EcoBoost (2013-on)
• Ford Focus RS EcoBoost (2016-on)
• Ford Mustang EcoBoost (2015-on)
• Ford Ranger 2.3L EcoBoost (2019-2023)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
