Radium Engineering Port Injection Fuel Rail Kit for Audi R8 V10 06-15/Lamborghini Gallardo 2008-2013

Radium Port Injection Fuel Rail Kit - Audi R8 V10 06-15/Lamborghini Gallardo 08-13

Application: Audi R8 Type 42 V10 (2006–2015) and Lamborghini Gallardo LP 5.2L V10 (2008–2013)
Part Type: Port injection kit (adapter plates and fuel rails)
Part Number: 20-0865

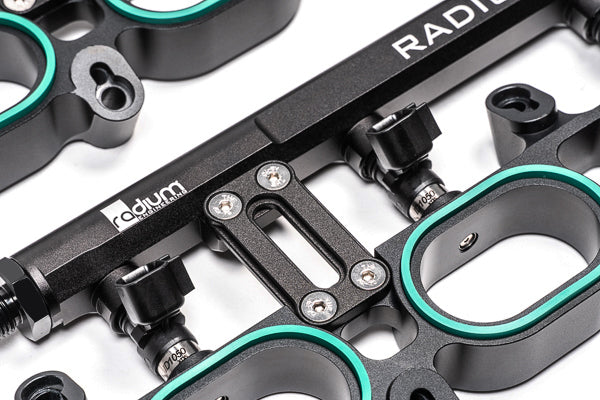

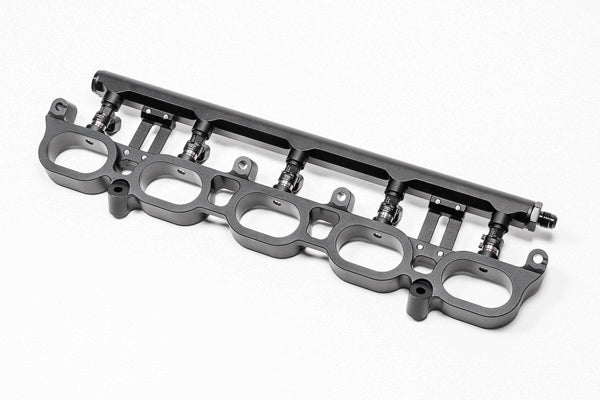

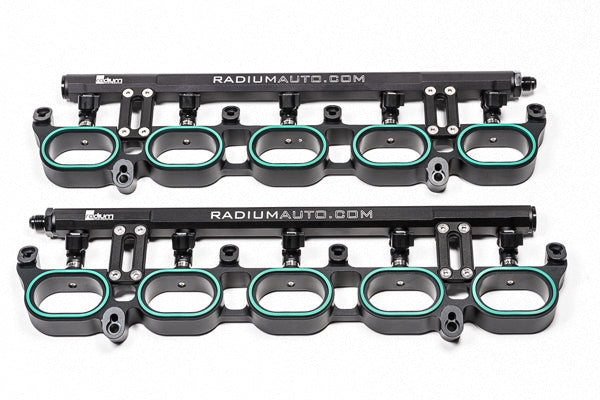

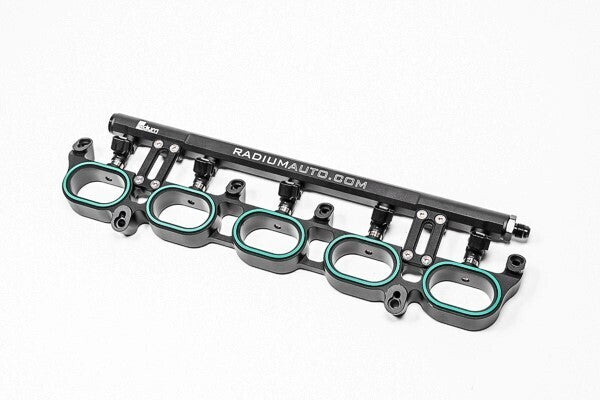

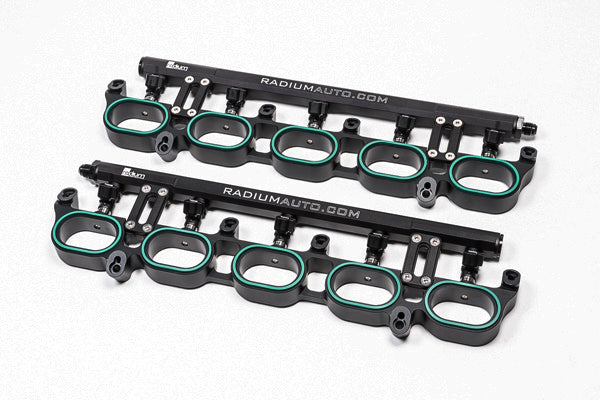

The Radium Port Injection Kit (PIK) mounts between the intake manifold and the lower cylinder head runners, adding port injectors to supply the extra fuel needed by highly modified 5.2L V10 engines. It supplements the OEM direct injection system rather than replacing it.

The kit includes anodised aluminium adapter plates and big-bore fuel rails. The adapter plates can also be used on their own as an intake manifold spacer without the fuel rails. It is compatible with all fuel types, including E85 and other alcohol blends.

Key Features

• Supplements DI: Adds port injection alongside the OEM direct injection system
• Big-Bore Rails: Anodised aluminium fuel rails
• Adapter Plates: Fit between the intake manifold and lower cylinder head runners
• Spacer Option: Plates can be used as an intake manifold spacer without the rails
• All Fuels: Compatible with E85 and other alcohol blends

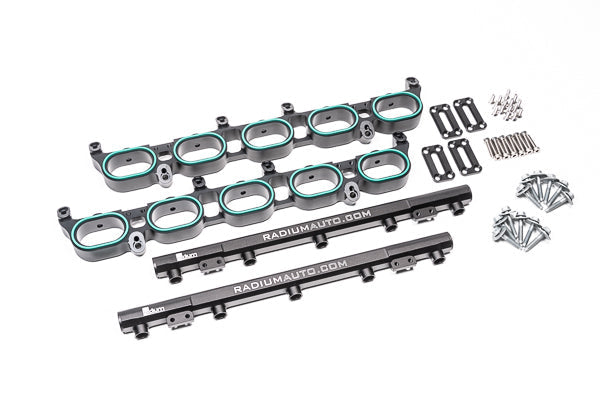

What's Included

• Anodised aluminium PIK adapter plates
• Big-bore fuel rails
• Fuel rail mounts
• Intake manifold gaskets
• Stainless steel hardware

Optional Parts

• Radium Engineering Port Injection Plumbing Kit - Lamborghini Gallardo LP 550/560/570 (2008-2013) (20-0967-03 / 20-0967-05) – independent port fuel system plumbing for the Gallardo LP (not R8)
• Radium Fuel Hanger Surge Tank (FHST), Audi R8 / Lamborghini Gallardo / Huracan (20-0860) – recommended for high-horsepower port injection and to feed the 20-0967 system
• Injector Dynamics XDS Fuel Injectors Lamborghini 1050 / 1300 / 1750 / 2600cc (ID1050/1300/1700/2600-XDS .34.14.14) – direct-fit port injectors suggested by Radium
• Radium 14-0427 2AN ORB Plug, Round Internal Hex (14-0427) – plugs the adapter ports when used as a spacer only

Important Notes

• Not included: fuel injectors, port fittings, fuel hose, wiring, injector controller and charge pipe
• Injectors must be top feed with 14mm upper and lower O-rings and a short 34mm body
• The spacer effect may require a minor throttle body coupler adjustment
• Not compatible with the 1st generation Gallardo 5.0L, or the R8 Type 4S / Huracan upper or lower intake manifold
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Audi R8 Type 42 (2006–2015), all Gen 1 V10 trims
• Lamborghini Gallardo LP550-2 (2008–2013), all trims
• Lamborghini Gallardo LP560-4 (2008–2013), all trims
• Lamborghini Gallardo LP570-4 (2008–2013), all trims
