Radium Engineering Fuel Surge Tank Install Kit for Ford F150 Raptor 2017-2020

Radium Fuel Surge Tank Install Kit - Ford F150 Raptor 2017-2020

Application: Ford F-150 EcoBoost V6 (2015-2020) and F-150 Raptor (2017-2020)
Part Type: Fuel surge tank install kit (FST-R sold separately)
Part Number: 20-0487

The Radium Fuel Surge Tank Install Kit contains everything needed to install a Radium FST-R regulated fuel surge tank in an EcoBoost F-150 or Raptor – the surge tank itself is sold separately. Some compatible FST-R pump options outflow the OEM Raptor fuel pump by more than 23%.

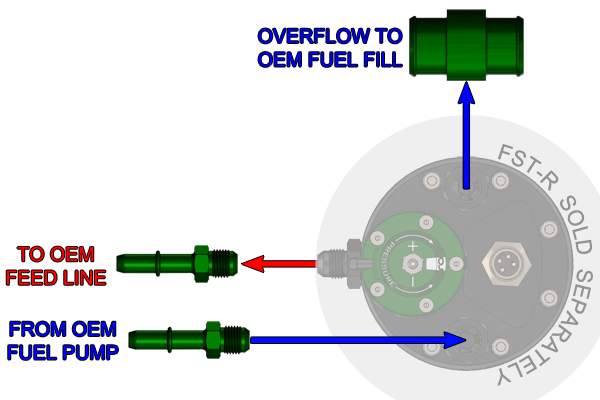

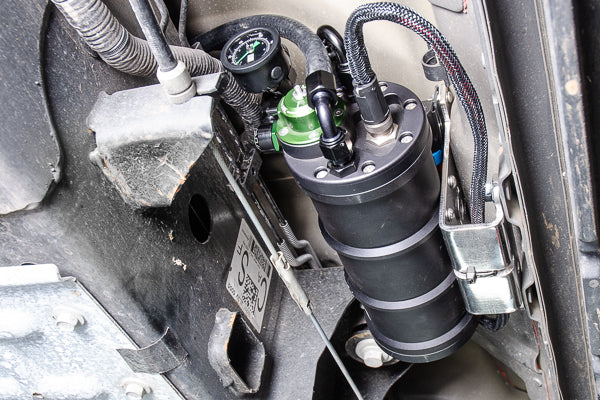

The OEM fuel pump is repurposed to keep the surge tank full, with excess fuel returning to the main tank, while the new surge tank pump feeds the engine through the FST-R's integrated fuel pressure regulator – maintaining supply even if the OEM pump is momentarily starved. The included gauge is used to set pressure, and the regulator can be vacuum referenced for 1:1 fuel pressure or run static to mimic the stock system. The surge tank mounts in a collision-safe area under the LH side of the truck on a polished stainless steel bracket that bolts to OEM mounting points.

Key Features

• Repurposed OEM Pump: OEM pump keeps the surge tank full; surge tank pump feeds the engine
• Regulated Supply: Uses the FST-R integrated FPR, vacuum referenced (1:1) or static
• Gauge Included: For setting and monitoring fuel pressure
• Stainless Mount: Polished stainless bracket bolts to OEM points, under the LH side

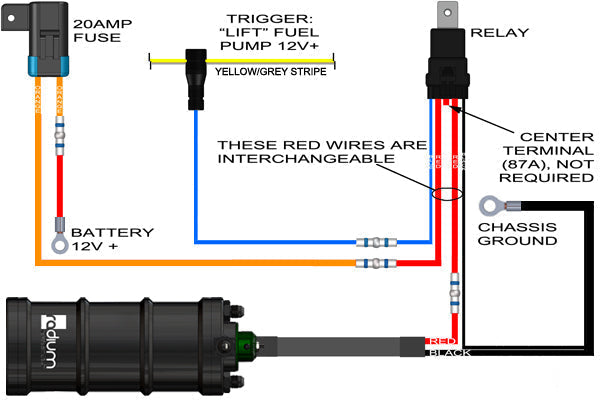

• Solderless Wiring: Flying leads, Raychem butt splices and weatherproof fuse and relay – under 30 minutes, no soldering

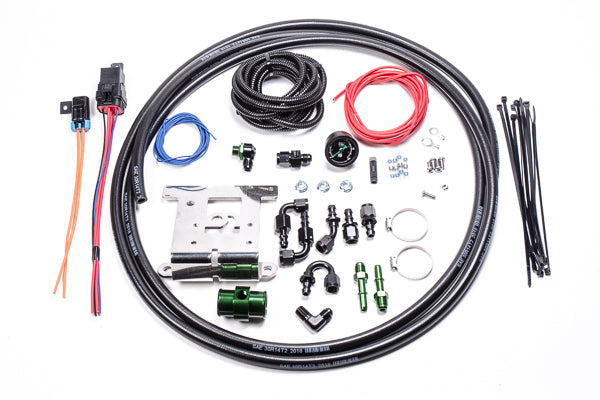

What's Included

• Stainless steel F-150 FST mount
• Fuel pressure gauge
• Aluminium Push Lok 6AN hose ends
• AN and OEM-style adapter fittings
• Vapor Shield 3/8" (6AN) EFI hose
• Wiring components with relay and fuse
• Stainless steel hardware

Optional Parts

• Radium FSTR RA Fuel Surge Tank w/Integrated FPR Fuel Pressure Regulator (20-1933) – the FST-R surge tank this kit installs (required)

Important Notes

• Requires the Radium FST-R surge tank (20-1933) and a surge tank fuel pump – both sold separately; order the kit, surge tank and one pump together for a complete system
• A drop-in main-tank pump may be needed – as a rough guide it should flow about 40-50% of the surge tank pump

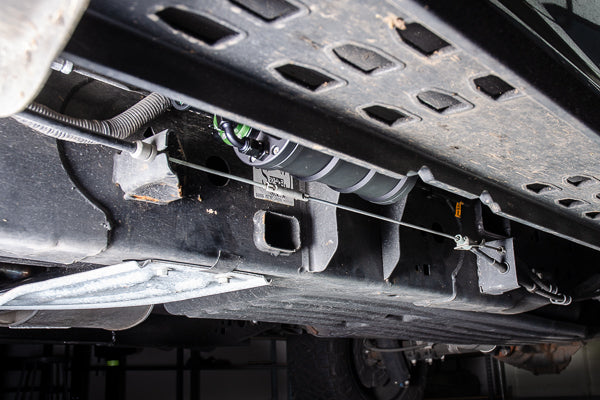

• The surge tank mounts under the LH side of the truck
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Ford F-150 EcoBoost V6 (2015-2020)
• Ford F-150 Raptor EcoBoost V6 (2017-2020)

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.

Installation
