Radium Engineering Fuel Rails for VW/Audi/Bentley 6.0L W12

Radium Fuel Rails, VW/Audi/Bentley 6.0L W12

Application: VW / Audi / Bentley 6.0L W12
Part Type: Billet aluminium fuel rails (pair)
Part Number: 20-0876

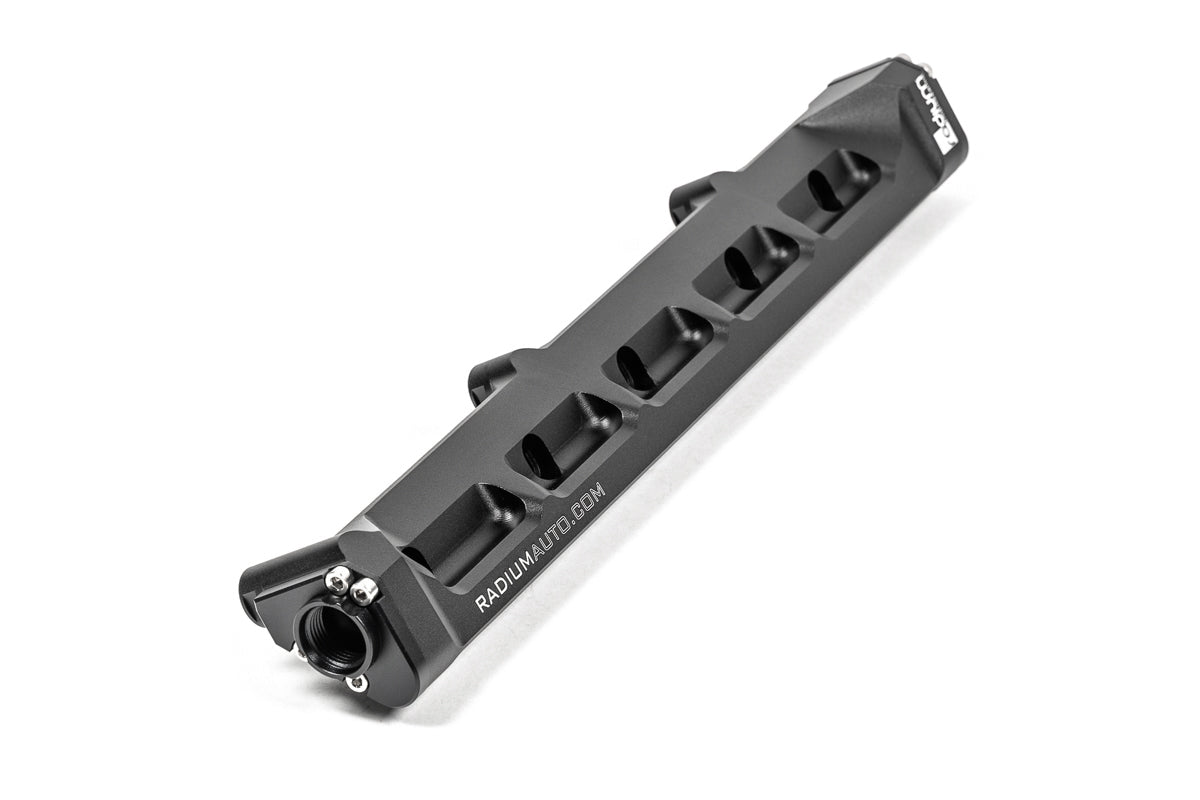

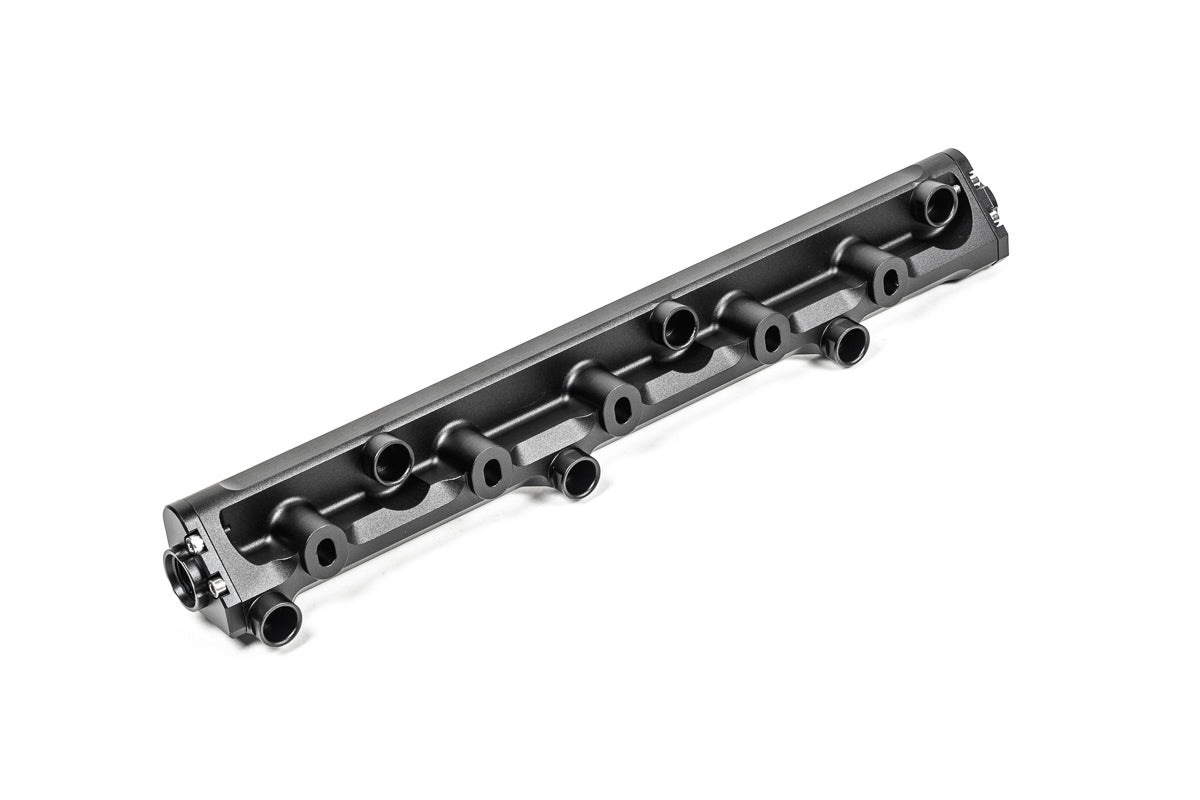

The Radium 20-0876 billet aluminium fuel rails suit the VW, Audi and Bentley 6.0L W12. Each rail is machined with dual 3/8in (6AN) internal bores that connect internally to all injectors – combined, the two bores are 12% larger than a single 1/2in (8AN) bore – supporting all necessary engine power requirements, and the rails are compatible with all alternative fuels.

The O-ring sealed billet end cap ports are tapped 3/4in-16, compatible with 8AN ORB fittings, with a single port at each end of each rail.

Key Features

• Dual 6AN Bores: Two 3/8in internal bores per rail, 12% larger combined than a single 8AN bore
• 8AN ORB End Caps: O-ring sealed billet end caps, ports tapped 3/4in-16
• Alternative Fuels: Compatible with all alternative fuels
• Anodised Finish: Lightweight aluminium, anodised for wear and corrosion resistance
• Easy Install: No special tools required

What's Included

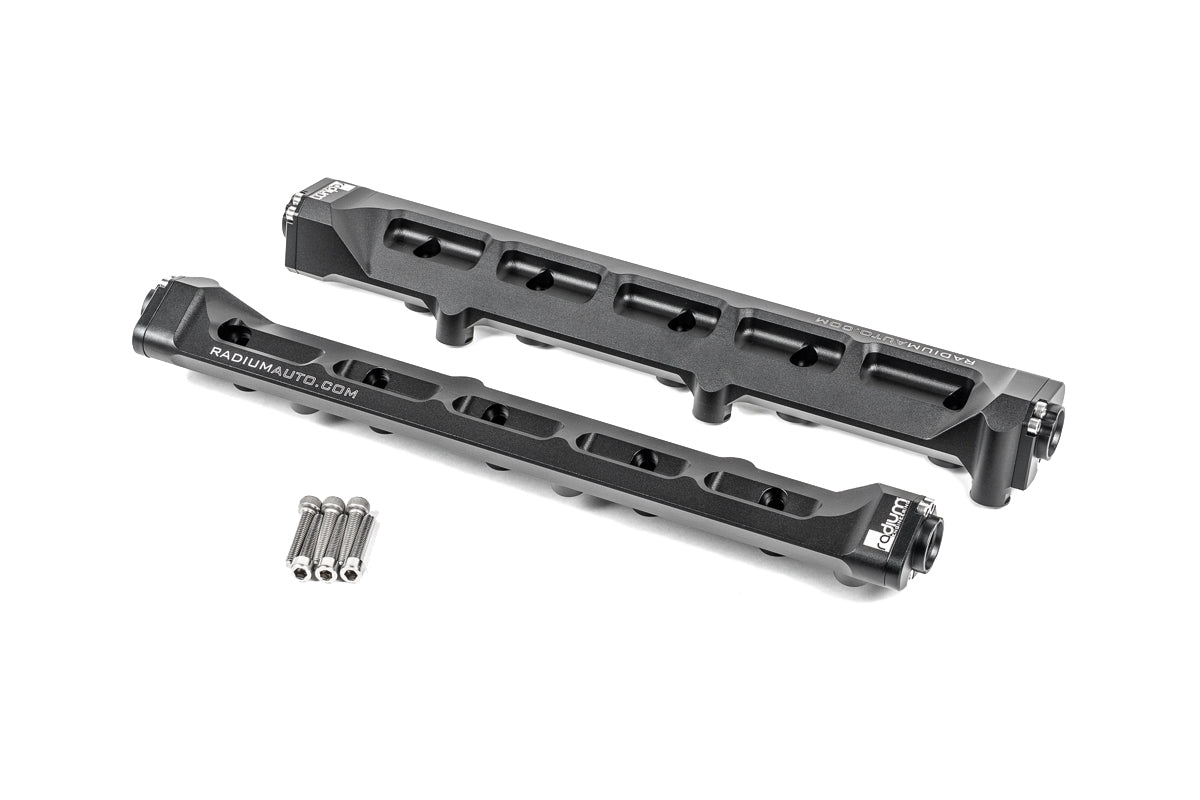

• Billet 6.0L W12 fuel rails (x2)
• Preassembled O-ring sealed end caps (x4)
• M6x1mm stainless steel hardware (x6)

Optional Parts

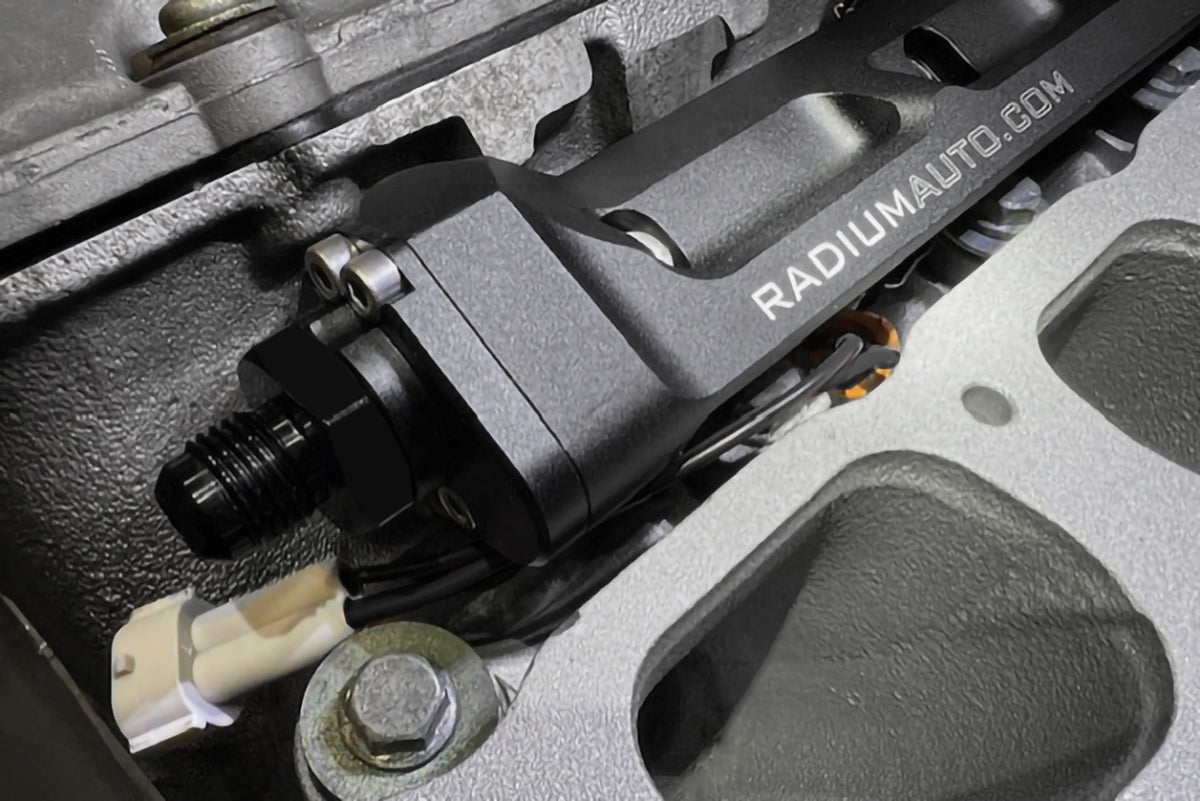

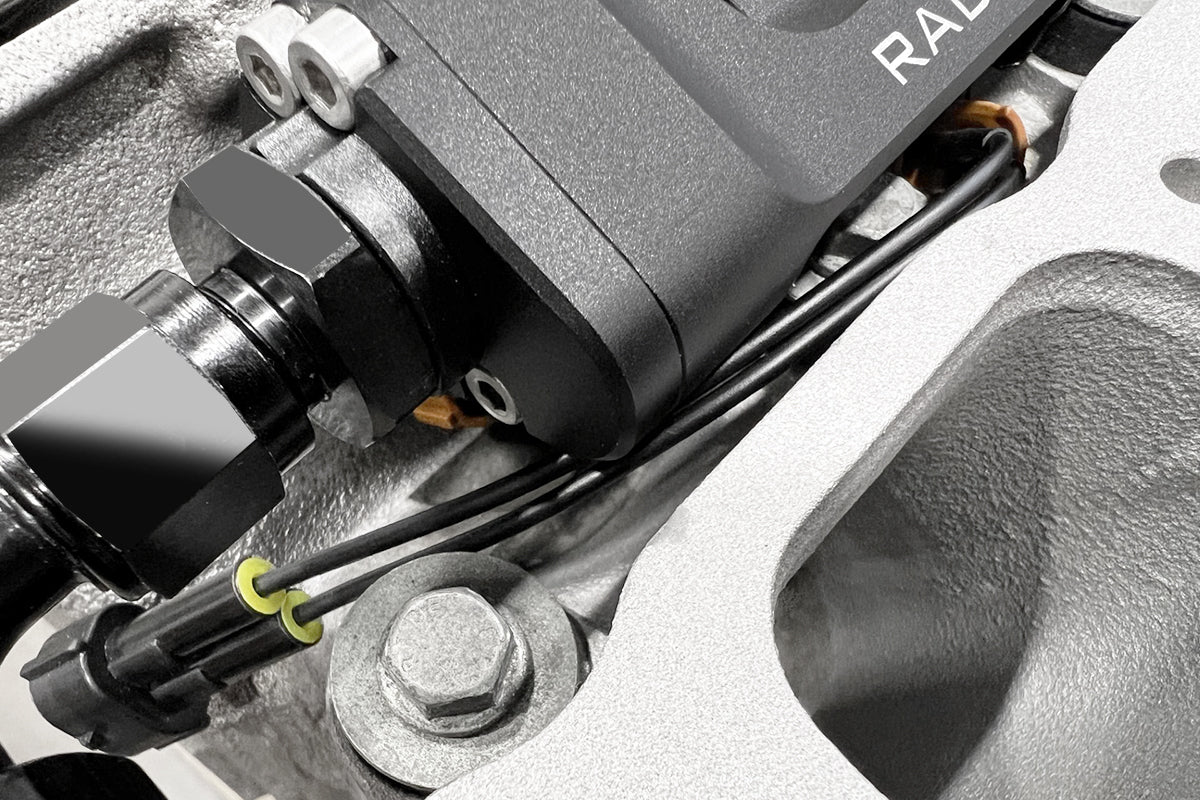

• Radium Denso Injector Connector Adapter (17-0065) – sold individually – needed where injector connectors interfere with the lower intake manifold

Important Notes

• This is an upgrade rail: OEM or OEM-equivalent injectors must be used (same height and the same upper and lower O-ring diameters and styles). Radium does not make injector recommendations – ask your tuner about brand and flow rate, and the injector manufacturer for a dimensionally correct part number
• Radium 17-0065 Denso injector connector adapters may be required if the injectors interfere with the lower intake manifold – with OEM injectors Radium recommends 6, for the inner injectors (cylinders 2, 4, 6, 7, 9, 11)
• Fittings are not included – select 8AN ORB fittings to suit your application
• Leave enough space around the ports for accessories such as fuel pressure regulators, gauges and fuel pulse dampers – contact iilumolab for Radium's dimensional drawings to check clearance
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Audi A8L W12 2002–2010
• Bentley Continental GT 2003–2018
• Bentley Continental GTC 2006–2018
• Bentley Continental Flying Spur 2005–2013
• Bentley Supersports 2009–2011
• VW Phaeton W12 2002–2011

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.
