Radium Fuel Rail, VW/Audi 1.8T 20V

Radium Fuel Rail, VW/Audi 1.8T 20V

Application: VW / Audi / Seat 1.8L 20V (turbo and non-turbo)
Part Type: Billet aluminium fuel rail
Part Number: 20-0872

The Radium 20-0872 fuel rail suits the VW/Audi 1.8L 20V, turbo and non-turbo. It is machined with a large 0.7in internal bore that supports all necessary engine power requirements, and the ports are tapped for 8AN ORB fittings. The rail can also be used to convert a returnless system.

Correctly sized low, mid and high thermal insulating spacers, rubber spacer retainers and stainless steel hardware are included, making the rail compatible with many different intake manifolds. The OEM injectors can be reused.

Key Features

• Large Bore: 0.7in (17.8mm) internal bore
• Insulating Spacers: Low, mid and high spacers included to suit many intake manifolds
• 8AN ORB Ports: Plumb to suit with 8AN ORB fittings
• Return Conversion: Can be used to convert a returnless system
• Anodised Finish: Lightweight aluminium, anodised; no special tools required

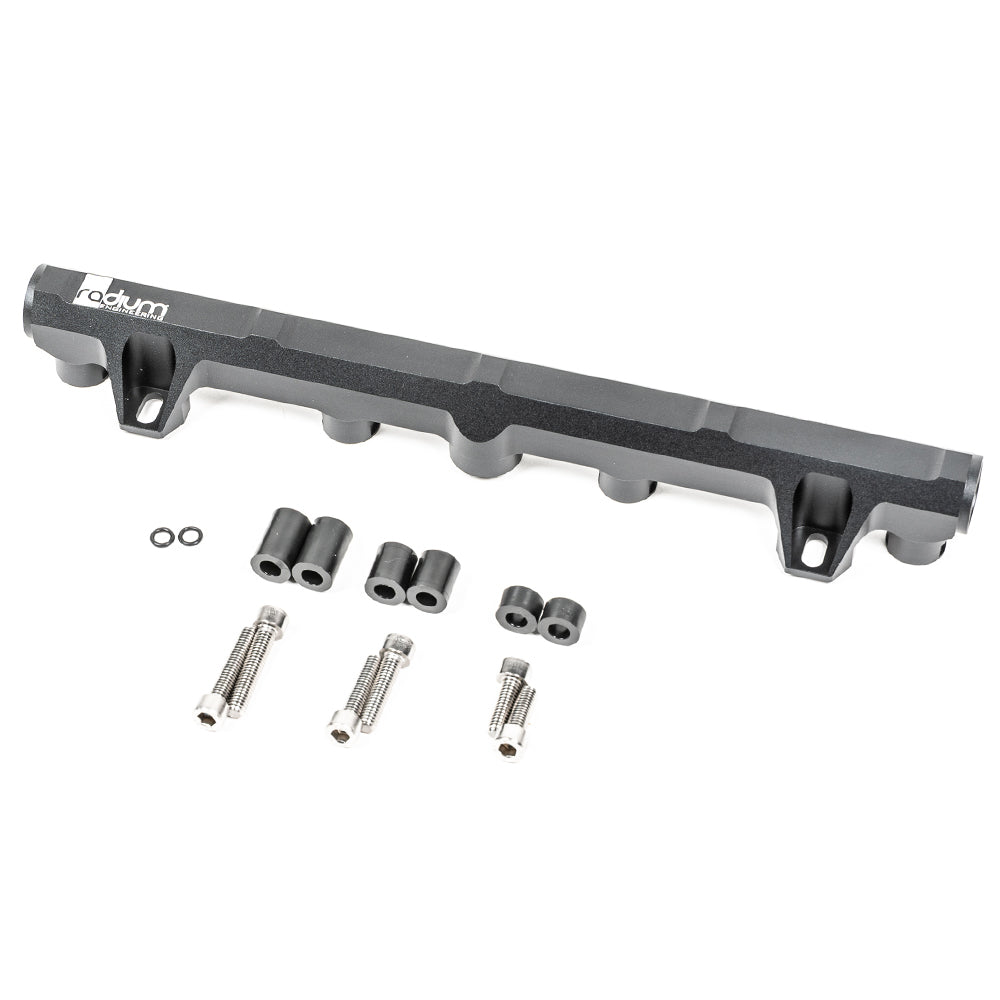

What's Included

• 1.8T 20V fuel rail
• Insulating spacers – low, mid and high
• Rubber spacer retainers
• Stainless steel mounting hardware

Optional Parts

• Radium V2 FPD-R Fuel Pulse Damper, 8AN ORB (20-0776) – direct-mount 8AN ORB fuel pulse damper for the rail ports

Important Notes

• This is an upgrade rail: OEM or OEM-equivalent injectors must be used (same height and the same upper and lower O-ring diameters and styles). Radium does not make injector recommendations – ask your tuner about brand and flow rate, and the injector manufacturer for a dimensionally correct part number
• Fittings are not included – select 8AN ORB fittings to suit your application
• Leave enough space around the ports for accessories such as fuel pressure regulators, gauges and fuel pulse dampers – contact Coore for Radium's dimensional drawings to check clearance
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Audi TT 1998–2006
• Audi A3 1996–2003
• Audi A4 1996–2006
• Audi A6 1998–2004
• Audi S3 1999–2003
• Seat Ibiza Cupra 1999–2008
• Seat Exeo 2008–2010
• VW Golf 1999–2005
• VW Jetta 2000–2005
• VW Passat 1998–2005
• VW Polo GTI 2006–2008
• VW Beetle 1999–2005
• 1.8L 20V engines, turbo and non-turbo

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
