Radium Fuel Rail Plumbing Kit, Honda B / D / F / H-Series

Radium Fuel Rail Plumbing Kit, Honda B / D / F / H-Series

Application: Honda B, D, F and H-Series engines with a Radium fuel rail
Part Type: Fuel rail plumbing kit
Part Number: 20-1270-PK

The Radium 20-1270-PK Fuel Rail Plumbing Kit connects a Radium Honda fuel rail to the factory feed with a 6AN hose. It is designed to be used with the factory fuel pressure regulator (FPR), although an aftermarket FPR can be used instead.

Two different FPR adapters are included so the kit suits all OEM Honda FPRs, along with plugs for any unused fuel rail ports and an adapter for the OEM pulse damper.

Key Features

• 6AN Feed: Easy connection to the factory feed with a 6AN hose and PushLok hose ends
• OEM FPR Adapters: Two different FPR adapters to suit all OEM Honda regulators
• Aftermarket FPR: An aftermarket regulator can be used instead of the factory unit
• Port Plugs: Plugs supplied for unused fuel rail ports

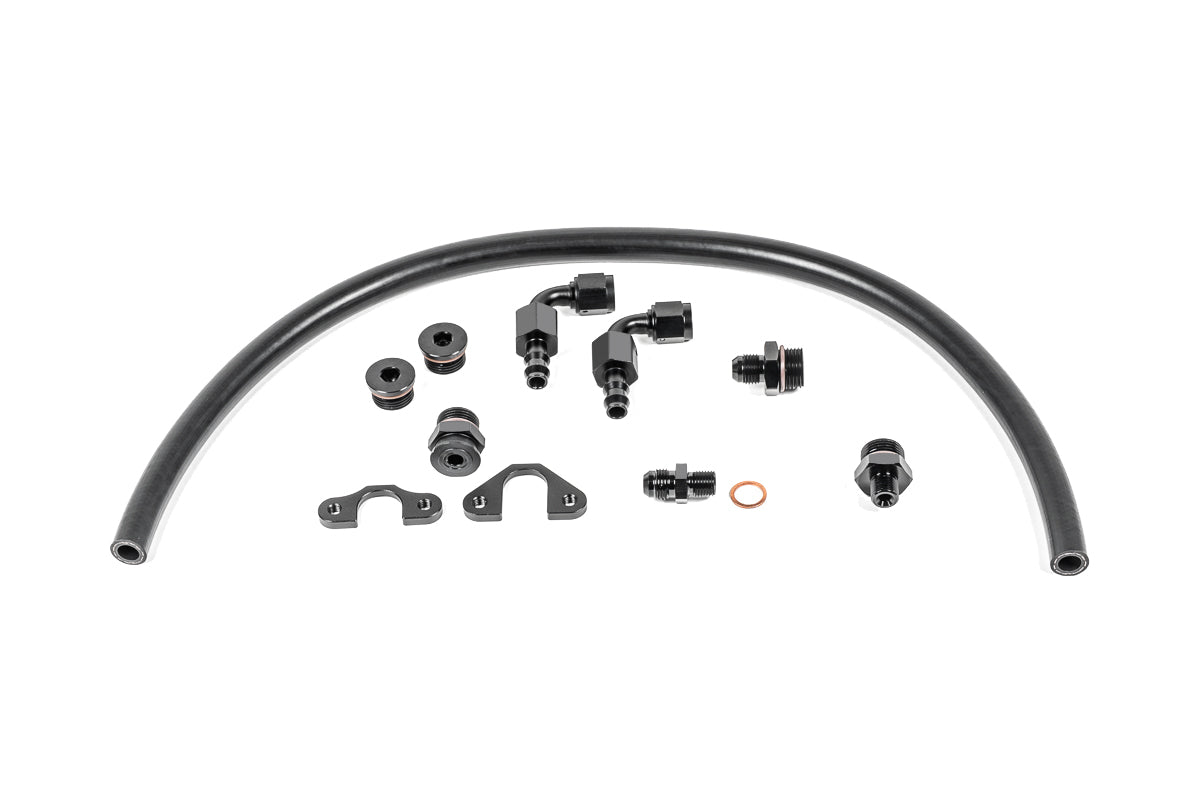

What's Included

• 8AN ORB to M12x1mm adapter (for a female-threaded OEM fuel pulse damper)
• 8AN ORB plugs for unused rail ports
• 2 x 6AN FPR adapter fittings (different flanges to suit all OEM Honda FPRs)
• 6AN adapter fitting for EGR-equipped engines
• 6AN male to M12x1.25mm adapter with crush washer (fuel filter outlet)
• 2 x PushLok hose ends
• Fuel hose (cut to length)

Optional Parts

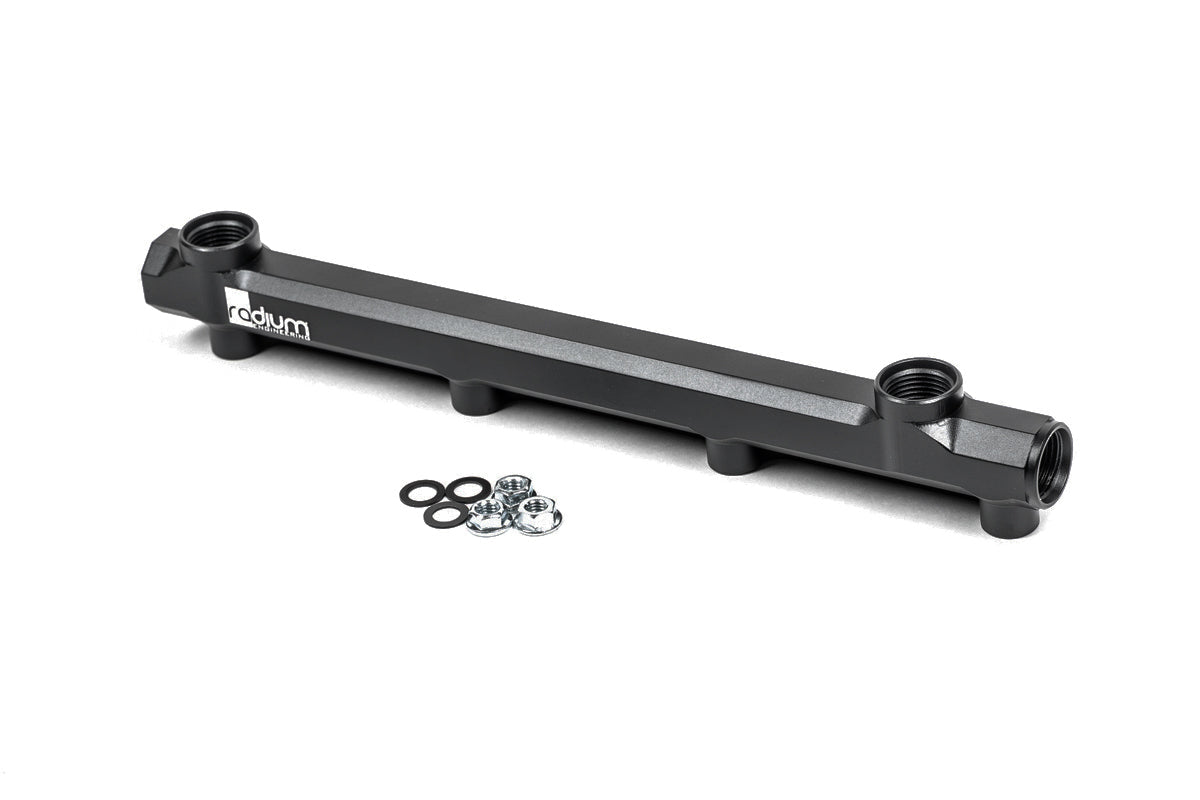

• Radium Fuel Rail, Honda D-Series (20-1070) – Radium D-Series rail this kit is designed to plumb

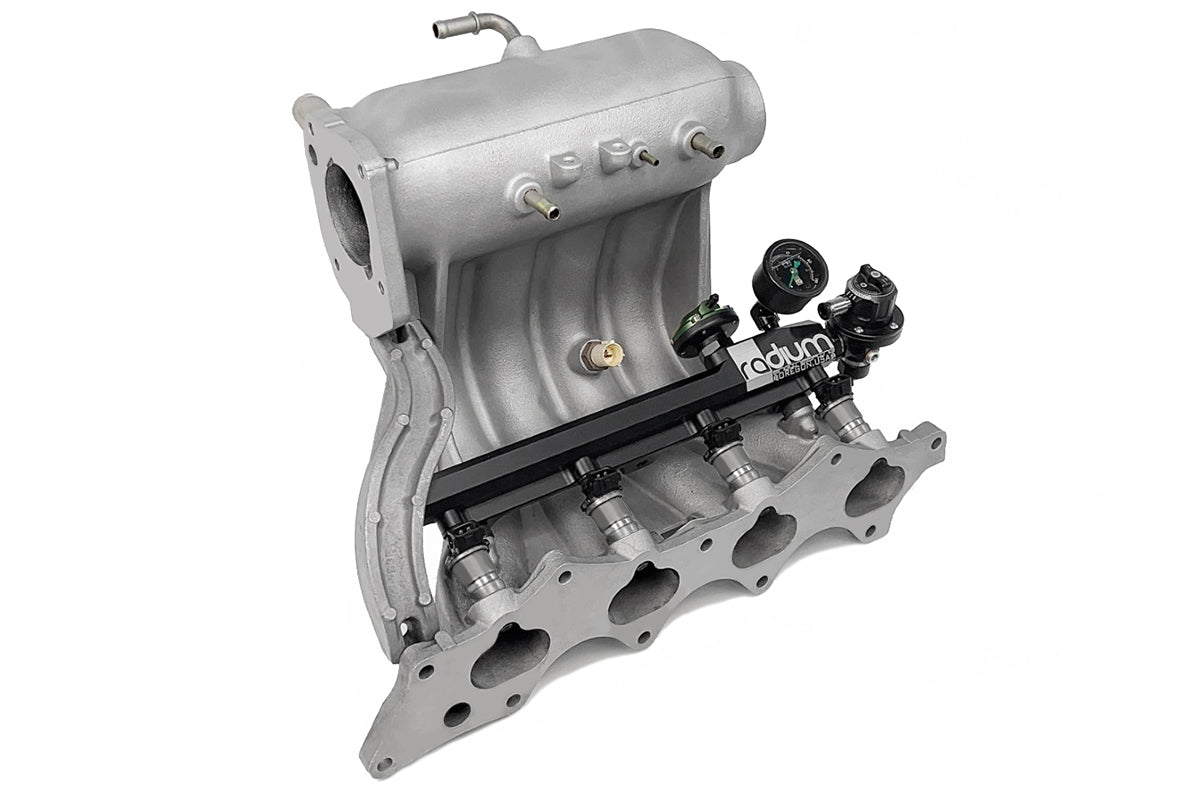

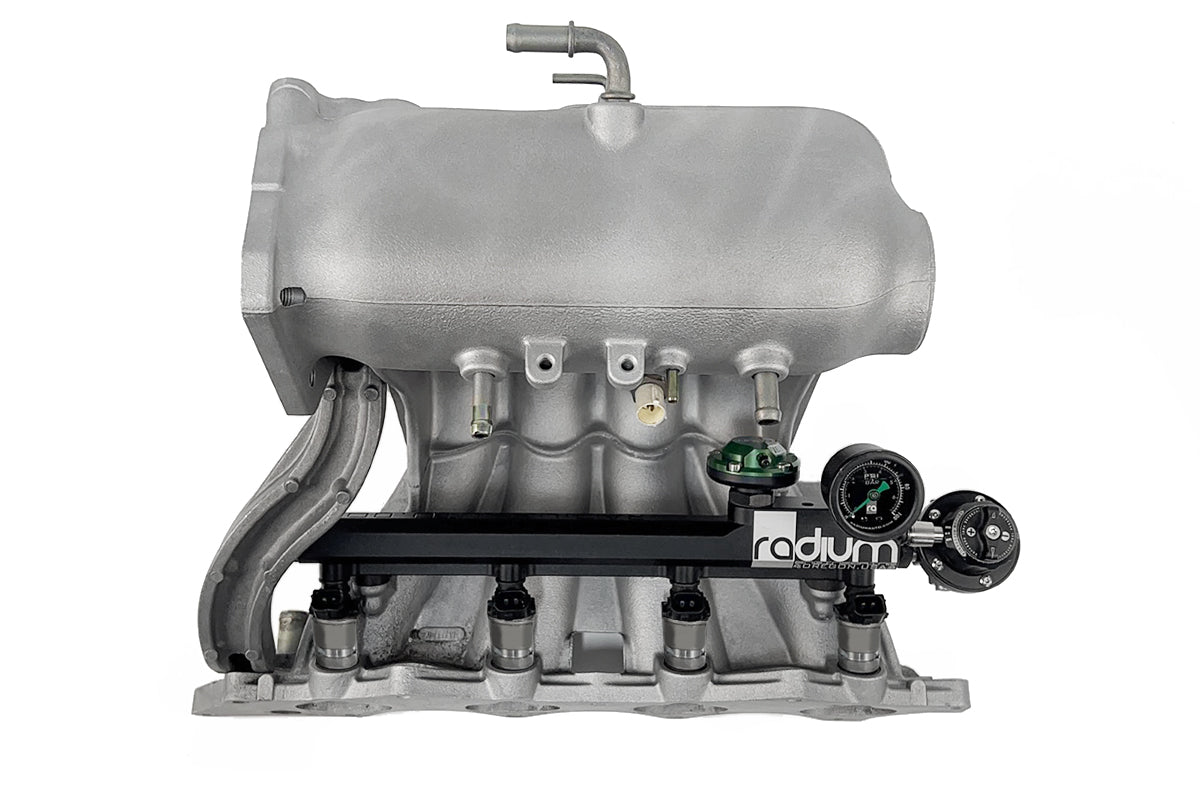

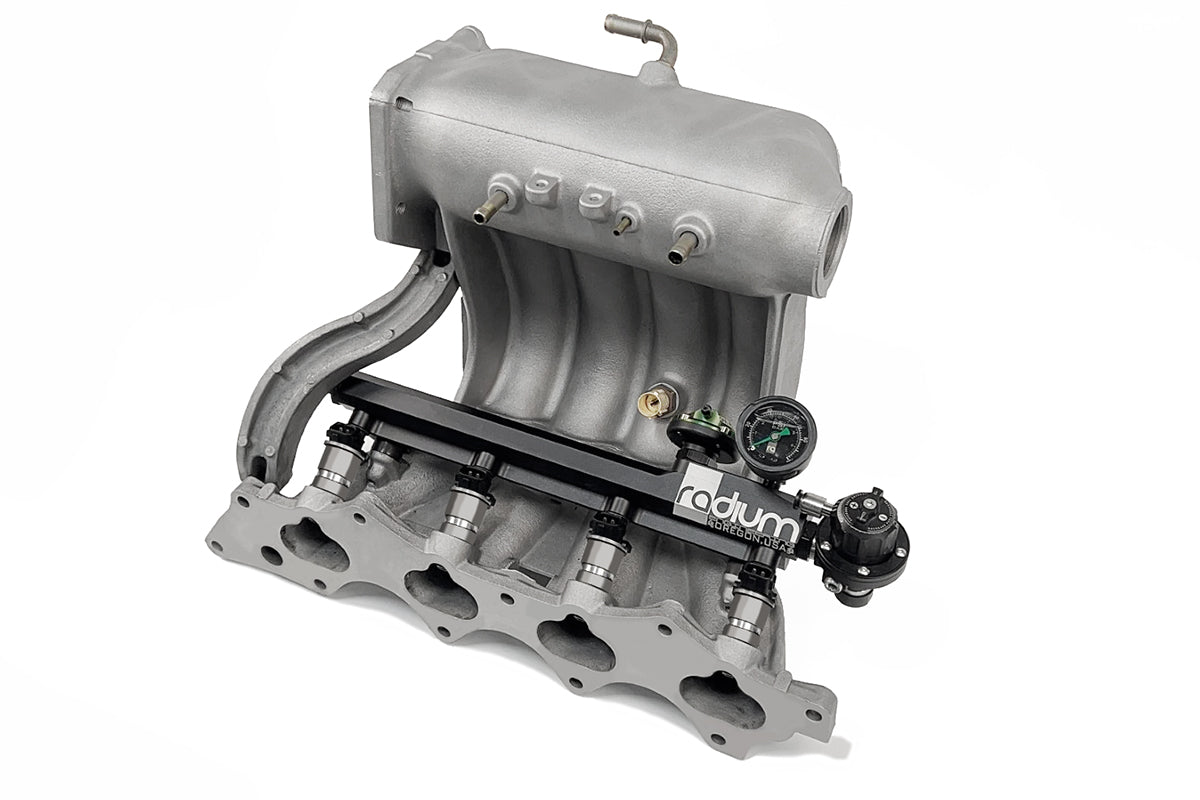

• Radium Fuel Rail - Honda B-Series (20-0370-02) – Radium B-Series rail

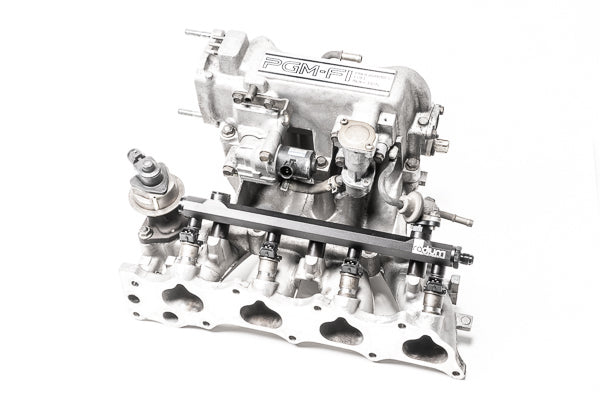

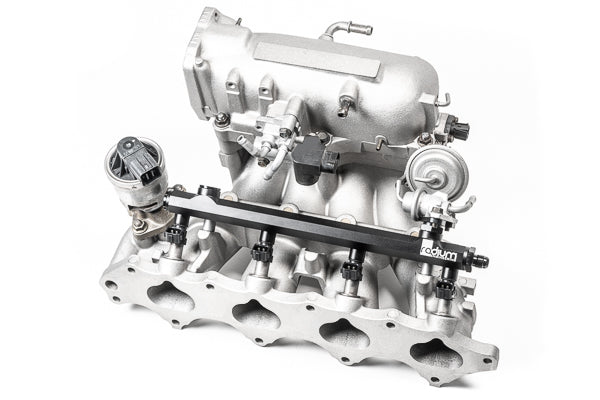

• Radium Fuel Rail Kit, Honda F-Series / H-Series (20-0870) – Radium F/H-Series rail

Important Notes

• Requires a Radium fuel rail (sold separately)
• Use the FPR adapter whose flange matches your OEM regulator; the OEM return hose is reused on the OEM FPR
• Torque the 6AN male to M12x1.25mm adapter at the fuel filter outlet to 34Nm (25lb-ft)
• Fuel filter location varies by vehicle
• Radium's compatibility list on its D-Series rail page covers D-Series engines only; for B, F or H-Series engines confirm fitment with Coore
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Honda D-Series with Radium 20-1070 rail – D15B, D15Z, D16A, D16B, D16Y, D16Z, SOHC ZC, DOHC ZC
• Honda B, F and H-Series with a Radium fuel rail (per Radium's kit name – confirm with Coore)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
