Radium Engineering Fuel Rail Kit for Toyota 3S-GTE Gen 1 / 2 / 3

Radium Fuel Rail Kit - Toyota 3S-GTE Gen 1 / 2 / 3

Application: Toyota 3S-GE and 3S-GTE (Gen 1–2)
Part Type: Fuel rail kit
Part Number: 20-0849

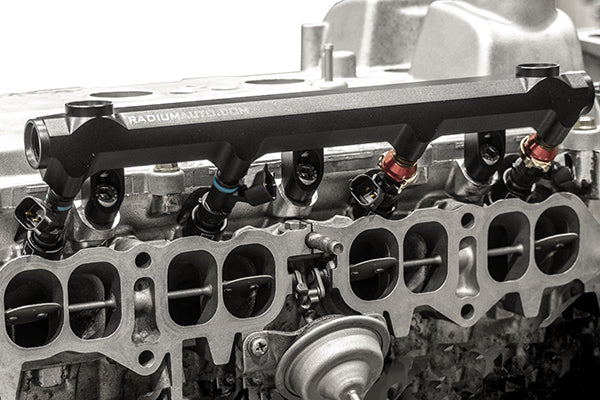

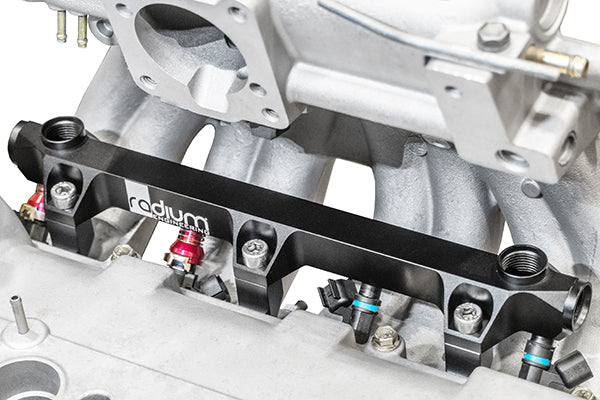

The Radium Engineering fuel rail for Toyota 3S-GE and 3S-GTE Gen 1–2 engines is made from anodised billet aluminium with a large 0.7in internal bore, so it can support all necessary engine power requirements. The ports are tapped for 8AN ORB, allowing fittings to be selected to suit the application.

On 3S-GE Gen 1–2 and 3S-GTE Gen 1 engines the rail works with OEM or OEM-equivalent injectors with no modifications. Gen 2 3S-GTE engines use side-feed injectors that are not compatible with the rail, so the included Radium injector seats are installed and aftermarket 48mm injectors with 11mm upper and 14mm lower O-rings are used.

Key Features

• Large Bore: 0.7in internal bore supports all necessary engine power requirements
• 8AN ORB Ports: Rail ports tapped for 8AN ORB fittings

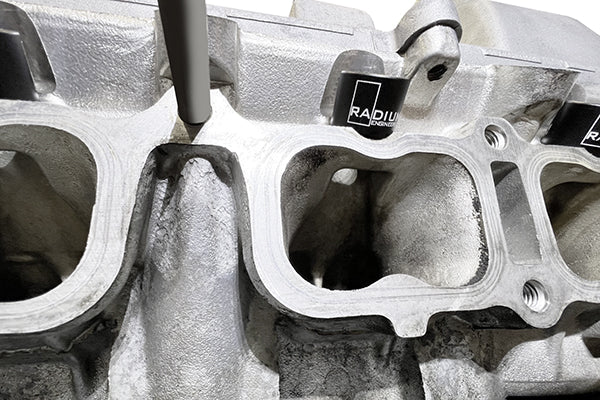

• Injector Seats Included: Allow high-flow aftermarket injectors on Gen 2 3S-GTE heads
• Anodised Finish: Wear and corrosion resistant surface finish
• Reuses Thermal Spacers: Factory thermal insulating spacers are reused
• Stainless Hardware: Stainless steel mounting hardware; no special tools required

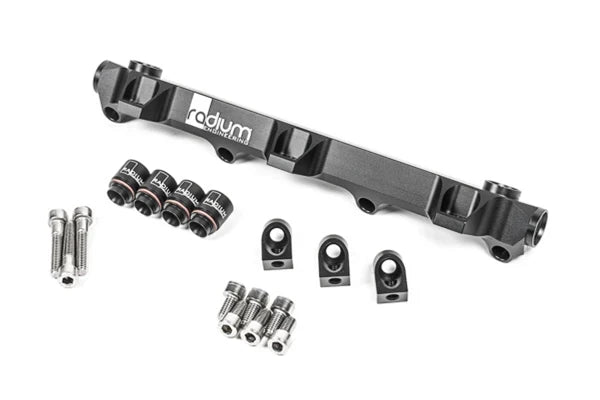

What's Included

• Anodised billet aluminium fuel rail
• Anodised billet aluminium mounting feet
• Anodised aluminium injector seats
• Stainless steel mounting hardware

Important Notes

• 3S-GE Gen 1–2 and 3S-GTE Gen 1: use OEM or OEM-equivalent injectors that match the factory height and O-ring dimensions
• 3S-GTE Gen 2: the OEM side-feed injectors are not compatible – install the included injector seats and use 48mm injectors with 11mm upper / 14mm lower O-rings. Radium-verified options: Injector Dynamics ID1050-XDS (1050.48.11.14), ID1300-XDS (1300.48.11.14), ID1700-XDS (1700.48.11.14), ID2600-XDS (2600.48.11.14); others may also fit
• Not for Gen 3–5 3S-GE/3S-GTE engines – Radium offers a separate rail (20-0949) for those
• Fittings are not included; allow ample clearance around the ports for regulators, gauges and pulse dampers
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• 1990–1993 Toyota MR2 (3S-GE)
• 1990–1995 Toyota MR2 Turbo (3S-GTE)
• 1985–1993 Toyota Celica (3S-GE)
• 1986–1993 Toyota Celica GT-Four (3S-GTE)
• 1986–1993 Toyota Celica All-Trac (3S-GTE)

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.

Installation

We always recommend professional fitment for guaranteed satisfaction. If you're wanting a hassle-free installation, feel free to contact our friendly team as we offer installation services in-store at our Melbourne workshop. For more details, contact us here.

Note
