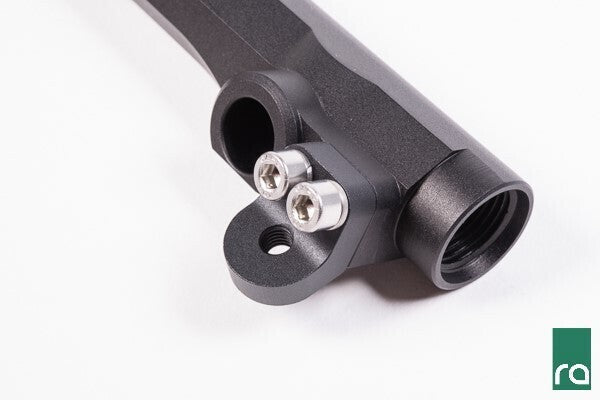

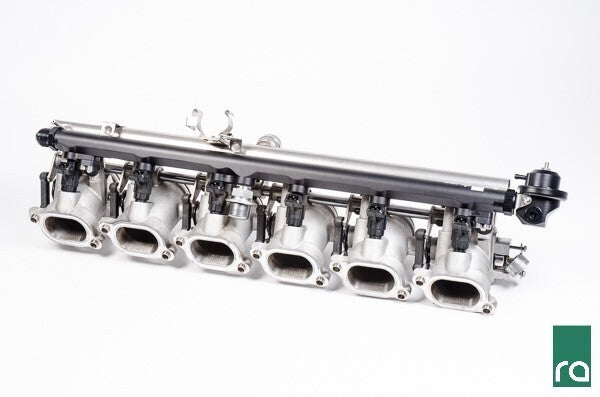

Radium Fuel Rail - BMW E46 M3 S54 (Rail Only)

Radium Fuel Rail - BMW E46 M3 S54 (Rail Only)

Application: BMW S54 engine – E46 M3, Z3 M Coupe/Roadster, Z4 M Coupe/Roadster
Part Type: Upgrade fuel rail (fittings sold separately)
Part Number: 20-0070-02

This Radium fuel rail is machined and anodised for use with all fuel types including E85. Its large 0.65in internal bore supports all necessary engine power requirements, and it is a direct bolt-on for BMWs with the S54 engine.

The end ports are tapped for 8AN ORB adapter fittings, which can be used in either end. If the under-car regulator is not used, a Radium direct mount regulator can be fitted in the front port. The centre port is tapped for 3/8" NPT adapter fittings and can be plugged if unused, making this rail ideal for custom high-flow fuel system builds.

Key Features

• Large Bore: 0.65in internal bore supports all necessary engine power requirements
• All Fuel Types: Machined and anodised for compatibility with all fuels including E85
• Direct Bolt-On: Fits BMW S54 engines
• Flexible Port Layout: 8AN ORB end ports and 3/8" NPT centre port
• Regulator Ready: Front port accepts a Radium direct mount regulator
• Anodised Aluminium: Rail and mounting feet

What's Included

• Anodised aluminium fuel rail
• Anodised aluminium mounting feet
• Stainless steel hardware

Optional Parts

• Radium Fuel Rail Plumbing Kit - BMW E46 M3 (S54) (20-0070-PK) – connects the rail to the factory feed line and under-car regulator (E46 M3 only)
• Radium DMR-RA Direct Mount Fuel Pressure Regulator (20-1623-00 / 20-1623-01) – mounts in the front port if the under-car regulator is not used
• Radium Fuel Pulse Damper OEM Style (14-0128) – the only pulse damper style that fits the centre port

Important Notes

• Fittings and adapters are not included
• This is an upgrade rail – OEM or OEM-equivalent injectors must be used (same height, with upper and lower O-ring diameters and styles matching OEM)
• Radium does not make injector recommendations – consult your tuner for brand or flow rate, and the injector manufacturer for a part number with matching dimensions
• Plug the centre port with a 3/8" NPT plug if it is not used
• Allow room around the ports for regulators, gauges and dampers – refer to Radium's dimensional drawings to check clearance
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• BMW E46 M3 (2001-2006)
• BMW Z3 M Coupe (2001-2002)
• BMW Z3 M Roadster (2001-2002)
• BMW Z4 M Coupe (2006-2008)
• BMW Z4 M Roadster (2006-2008)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
