Radium Engineering Fuel Pump Hanger for Toyota GR Supra A90 / A91 2019+

Radium Fuel Pump Hanger, Toyota GR Supra A90 / A91 (2019+)

Application: Toyota GR Supra A90 / A91 (2020+)
Part Type: Auxiliary (port injection) fuel pump hanger
Part Number: 20-0760

The Radium 20-0760 Fuel Pump Hanger adds one independent 39mm fuel pump to the MK5 GR Supra for an auxiliary fuel supply such as port injection, while leaving the OEM direct injection fuel system completely intact. The OEM pump, regulator, pre- and post-pump filters, collector basket, venturi jet pump and fuel level sensor all stay in place, and no fuel tank modifications are required.

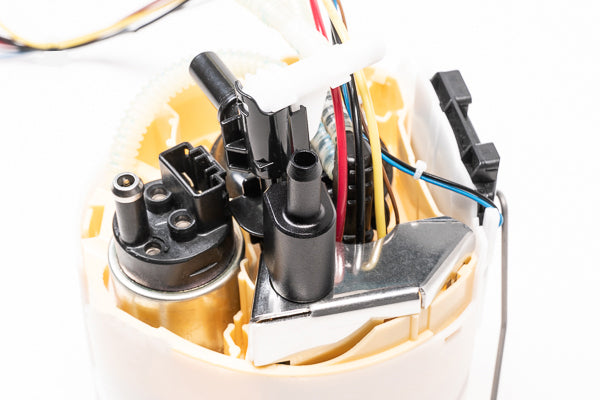

The added pump sits in the OEM collector basket, which is kept full by three sources: the venturi jet pump scavenging the passive side of the tank, return fuel from the DI and port injection regulators, and a one-way fill valve in the basket. Return fuel enters through a machined fitting with an internal deflector to limit turbulence and foaming.

Key Features

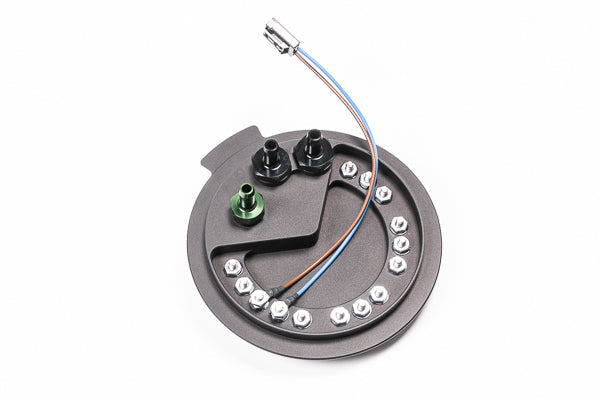

• OEM System Retained: OEM direct injection pump, regulator, filters, collector basket, jet pump and level sensor all remain

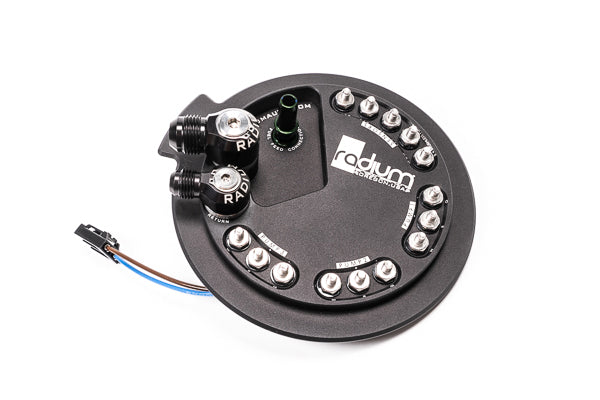

• Pump Outlet: 8AN ORB female port with a preinstalled low-profile 8AN male banjo
• Return Inlet: 8AN ORB female port with a preinstalled low-profile 6AN male banjo and internal deflector
• DI Feed: OEM direct injection pump outlet uses an SAE quick connect
• Electrical: High-current stainless studs, hermetically sealed, with anodised aluminium acorn nuts; ETFE-insulated in-tank wiring
• Compatible Pumps: Walbro GSS342 (255 LPH), AEM 50-1200 E85, TI Automotive BKS1001 (brushless), Injector Dynamics ID BPC-1100 (brushless)
• Fuel Compatibility: Gasoline, methanol and ethanol

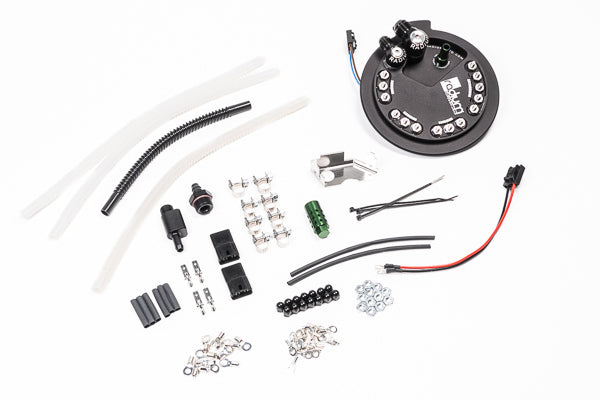

What's Included

• Partially assembled fuel pump hanger
• Everything needed to mount one compatible pump alongside the OEM pump
• Electrical parts kit for external wiring

Optional Parts

• Radium Fuel Hanger Plumbing Kit with Filter, Toyota GR Supra A90 / A91 (2019+) (20-0761-03 / 20-0761-05) – connects the hanger to a port injection fuel rail (filter, hoses, hose ends, retainers)
• Radium Port Injection Fuel Rail Kit - Toyota Supra A90 19+/BMW Z4 G29 18+ (20-0753) – B58TU port injection kit

Important Notes

• Fuel pump not included
• An external fuel pressure regulator and a low-micron aftermarket filter must be installed downstream of the port injection feed – not included
• External wiring for the additional pump is not included
• Pumps larger than 39mm are not compatible (e.g. Walbro F900002XX, DeatschWerks DW400, Bosch BR540)
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Toyota GR Supra A90 / A91 (2020+)

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.
