Radium Engineering Fuel Pump Hanger for Mitsubishi Lancer EVO 1-6

Radium Fuel Pump Hanger suit Mitsubushi Lancer EVO 1-6

Application: Mitsubishi Lancer Evolution I, II, III, IV, V and VI
Part Type: Single in-tank fuel pump hanger (pump sold separately)
Part Number: 20-1330

The Radium 20-1330 fuel pump hanger for the Mitsubishi Lancer Evolution I-VI runs a single aftermarket pump from roughly 340 to 810 LPH, including both brushed (2-wire) and brushless (3- or 4-wire) pumps. It reuses the OEM fuel level sensor and low fuel indicator so the factory gauge cluster continues to read correctly.

A high-flow PRV venturi jet pump with a built-in pressure relief valve keeps the OEM collector bowl full via the regulator and crossover hose, and bypasses excess return pressure for stable rail pressure. Once installed, the pump, sensors and hanger can be serviced through the OEM access covers – no more dropping the tank.

Key Features

• Wide Pump Range: Fits a single pump from approx. 340 to 810 LPH, brushed or brushless
• OEM Sensors Retained: Reuses the factory fuel level sensor and low fuel indicator
• PRV Venturi Jet Pump: High-flow jet pump with built-in pressure relief valve keeps the collector bowl full
• Fittings: 8AN ORB (3/4"-16) female pump outlet and 6AN ORB (9/16"-18) female return inlet, with low-profile male adapters included
• Electrical: Custom stainless studs with anti-rotation features, non-conductive anodised acorn nuts and ETFE-insulated in-tank wiring
• Serviceable: Pump, sensors and hanger serviced through the OEM access covers
• Fuel Compatibility: Gasoline, methanol and E85 compliant

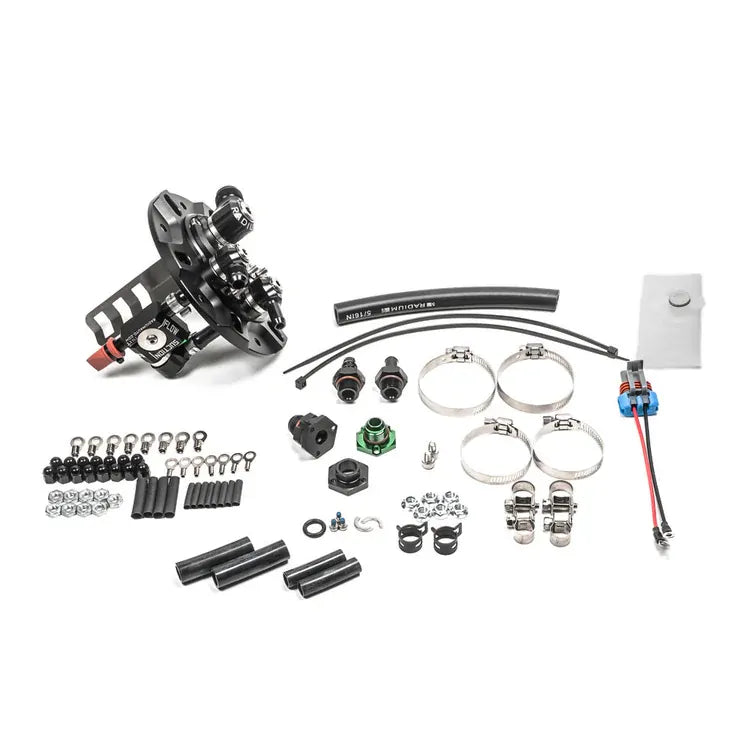

What's Included

• Partially assembled fuel pump hanger
• Hardware to install one compatible fuel pump
• Electrical hardware kit for external wiring

Optional Parts

• Radium Fuel Hanger Connection Kit, Mitsubishi EVO 1-5 (20-1331) – connects the hanger to the OEM hard lines on EVO 1-5
• Radium Fuel Hanger Connection Kit, Mitsubishi EVO 6 (20-1332) – connects the hanger to the OEM hard lines on EVO 6
• Radium Fuel Hanger Plumbing Kit, Mitsubishi EVO 1-6 (20-1334-03) – feed/return plumbing kit with DMR regulator, gauge and filter (requires a connection kit)
• Radium DIY Fuel Pump Hard Wiring Kit (17-0031) – upgraded pump wiring for full pump voltage

Important Notes

• Fuel pump not included – verified pumps: AEM 50-1220; Walbro F90000267, F90000274, F90000285, F90000295; Protec 11928 (brushless); Fuelab 49614 (brushless); DeatschWerks DW400, DW440 (brushless), DW810 (brushless). Other similar pumps may fit but are not verified
• A connection kit (20-1331 for EVO 1-5, 20-1332 for EVO 6) is needed to connect the hanger to the OEM hard lines; custom lines are required to run larger lines to the engine

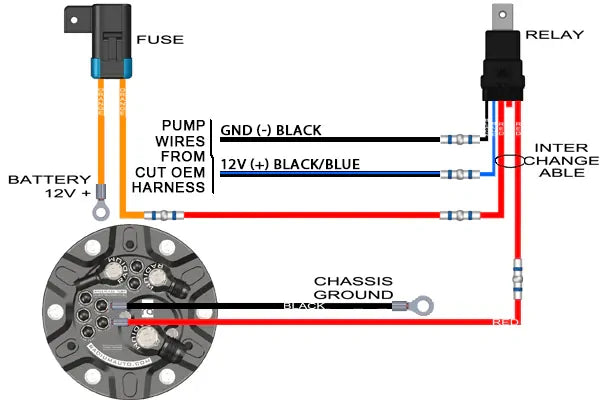

• OEM pump wiring can be reused, but upgrading the wiring is recommended for full pump voltage
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Mitsubishi Lancer Evolution I
• Mitsubishi Lancer Evolution II
• Mitsubishi Lancer Evolution III
• Mitsubishi Lancer Evolution IV
• Mitsubishi Lancer Evolution V
• Mitsubishi Lancer Evolution VI

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.

Installation

We always recommend professional fitment for guaranteed satisfaction. If you're wanting a hassle-free installation, feel free to contact our friendly team as we offer installation services in-store at our Melbourne workshop. For more details, contact us here.

Note

Upon receiving the item, please ensure that the part is indeed the correct item you have ordered. This can be achieved by checking labels on the packaging. Please also ensure a proper test fit of the item is conducted prior to paint and/or installation. Returns/Warranty claims will be voided if the item has been tampered with, or is no longer in resalable/new condition.
