Radium Engineering Fuel Pump Hanger for Nissan 180 SX, Silvia S13/Skyline R32 GTS, GTS-T

Radium Fuel Pump Hanger - Nissan 180 SX, Silvia S13/Skyline R32 GTS, GTS-T

Application: Nissan S13 Silvia, 180SX, 200SX, 240SX and R32 Skyline (excluding GT-R)
Part Type: Fuel pump hanger (in-tank pump module replacement)
Part Number: 20-0730-00, 20-0732-00

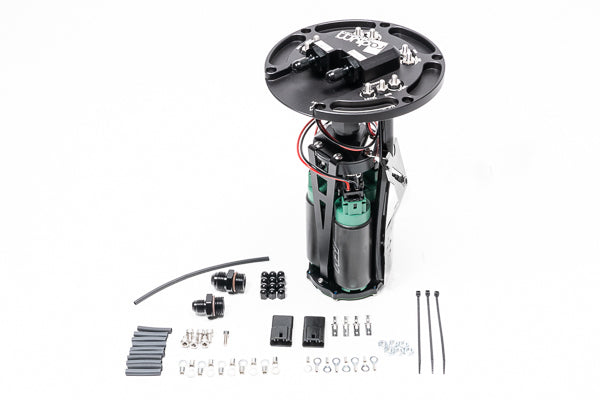

The Radium early Nissan fuel pump hanger replaces the stock fuel pump module with no cutting or modification of the body sheet metal or fuel tank. It supports one, two or three aftermarket fuel pumps sitting in the factory collector bowl, and the factory float and low fuel switch remain functional. Pumps are supplied by you and some assembly is required.

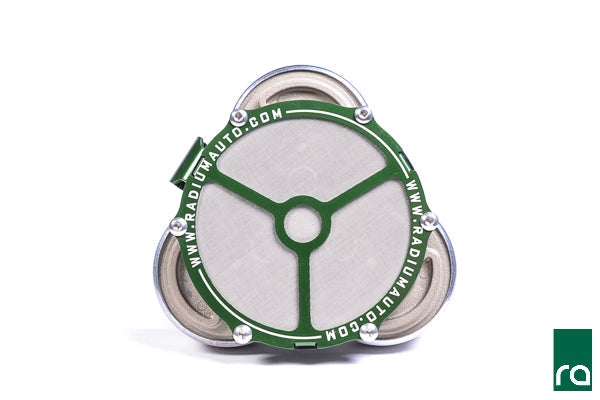

Fuel enters through a mesh filter at the bottom of the assembly into three independent chambers, so fuel can't pass between pumps and unused ports don't need blocking off. The pump outlets merge into a single 8AN ORB female pump-out port with integrated check valves for pump staging, and the return uses an 8AN ORB female port. Adapter fittings are included for factory lines and aftermarket AN hose, and all ports are machined low enough to clear the unibody. Anti-rotation, hermetically sealed stainless steel studs with non-conductive anodised acorn nuts carry the high current, and in-tank wiring is ETFE insulated.

Key Features

• Drop-In Installation: No cutting of body or tank
• 1 to 3 Pumps: Integrated check valves allow pump staging
• Chambered Pre-Filter: Three independent filtration chambers
• OEM Gauge Retained: Factory float and low fuel switch remain functional
• Merged Outlet: 8AN ORB female pump-out port and 8AN ORB female return port

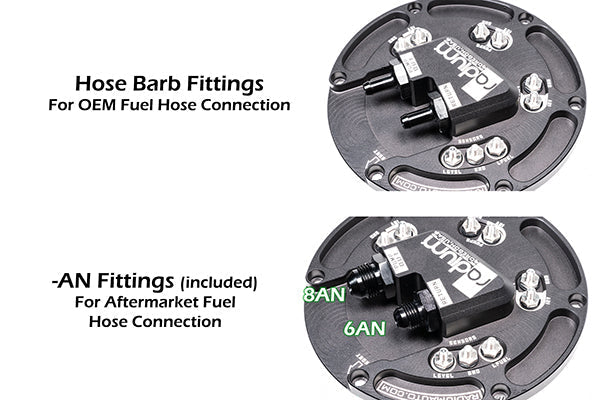

• Fittings Included: Barbs and 6AN/8AN fittings
• High-Current Electrical: Anti-rotation stainless studs, ETFE in-tank wiring
• Construction: Anodised aluminium with stainless steel hardware and clamps
• Fuel Compatibility: Petrol, methanol and E85

Available Configurations

• 20-0730-00: suits Walbro GSS342 (255 LPH), AEM 50-1000 and AEM 50-1200
• 20-0732-00: suits Walbro F90000267, F90000274 and F90000285

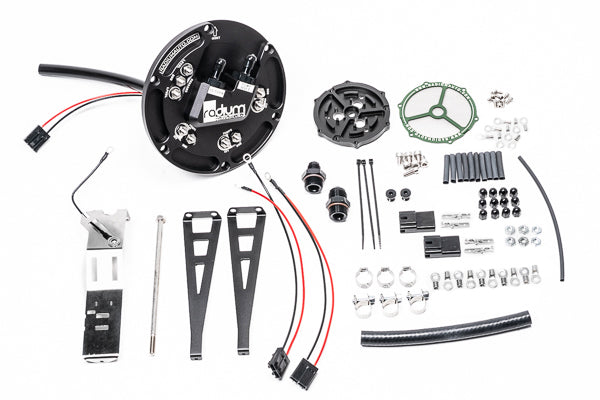

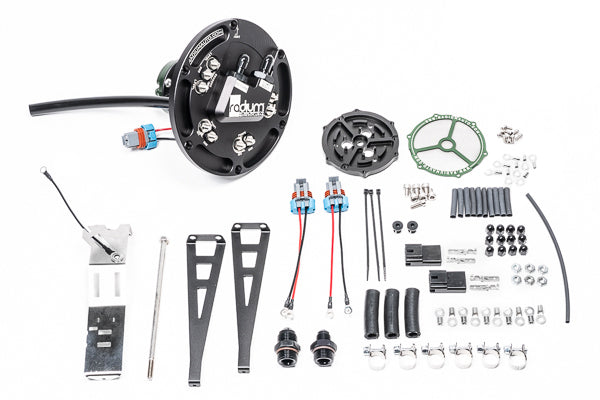

What's Included

• Partially assembled fuel pump hanger
• Hardware for 1 to 3 compatible pumps
• Electrical kit for the external wires at the top hat

Optional Parts

• Radium Fuel Hanger Plumbing Kit w/Filter - Nissan Silvia S13 / 180SX S13 / Skyline R32 (20-0703-03 / 20-0703-05) – feed/return plumbing and filter to an aftermarket rail
• Radium DIY Fuel Pump Hard Wiring Kit (17-0031) – one universal wiring kit per aftermarket pump
• Radium Fuel Hanger Surge Tank (FHST), Nissan Skyline R32 GT-R (20-0740-00 / 20-0741-00 / 20-0742-00) – the Radium option for the R32 GT-R, which this hanger does not fit

Important Notes

• Fuel pumps not included – choose pumps to suit expected power output and fuel type
• Pumps listed are tested and verified by Radium; other similar pumps may fit but are unverified
• A single Walbro GSS342 can reuse the OEM pump wiring, but Radium recommends upgrading the wiring for full pump output
• Does not fit the R32 Skyline GT-R
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Nissan S13 Silvia – all models/trims, RHD and LHD
• Nissan S13 180SX – all models/trims, RHD and LHD
• Nissan S13 200SX – all models/trims, RHD and LHD
• Nissan S13 240SX – all models/trims, RHD and LHD
• Nissan R32 Skyline – RHD and LHD, excluding GT-R
