Radium Fuel Pump Connector Harness, Walbro E85, Long
Tax included. Shipping calculated at checkout
Description

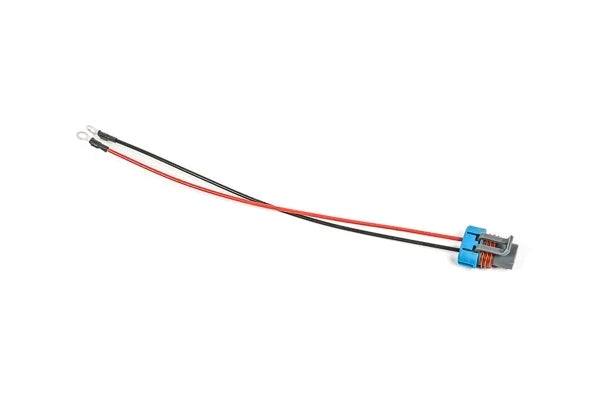

Radium Fuel Pump Connector Harness, Walbro E85, Long
Application: Universal – Walbro / TI Automotive E85-series in-tank pumps
Part Type: Fuel pump connector harness (long)
Part Number: 17-0069
This Radium Engineering connector harness is a replacement for the pump wiring harnesses used in Radium fuel hangers, fuel pump install kits, surge tanks and FCST units, and it can also be used universally. 17-0069 is the long version for Walbro E85-series pumps, measuring 284mm (11.2in) end to end.
All Radium connector harnesses are made from ETFE wire, which is safe for submersion in all popular fuel types, so the harness can live inside the tank, hanger or surge tank alongside the pump.
Key Features
- Length: 284mm (11.2in) end to end
- Wire: 14 AWG ETFE, safe for submersion in all popular fuels
- Terminals: #10 screw ring terminals
- Pump Compatibility: Walbro (TI Automotive) F90000267 (416lph), F90000274 (416lph), F90000285 (450lph) and F90000295 (537lph)
Important Notes
- Radium's shorter version of this harness is 17-0049-00 (157mm / 6.2in)
Vehicle Fitment
- Universal – see Application
- Pumps: Walbro (TI Automotive) F90000267 (416lph), F90000274 (416lph), F90000285 (450lph) and F90000295 (537lph)
Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
