Radium Fuel Pressure Regulator

Radium Fuel Pressure Regulator

Application: Universal
Part Type: Fuel pressure regulator housing for Bosch regulator inserts
Part Number: 20-0010-00, 20-0010-01, 20-0014

The Radium Fuel Pressure Regulator is built around the common OEM Bosch regulator inserts used on applications such as the Ford Falcon BA/BF/FG XR6 Turbo, Ford Territory Turbo, FPV F6 Typhoon, Audi/VW 1.8L Turbo and Porsche 911 (996/997) Turbo.

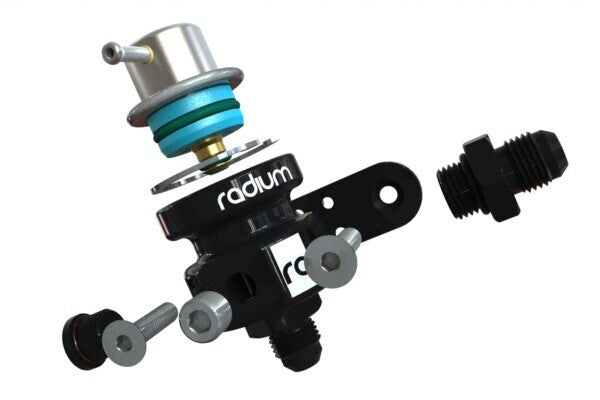

The compact billet aluminium housing is laser etched and anodised, and the regulator top is retained by a stainless steel snap ring that is easily removed with snap-ring pliers. Two versions come assembled with a genuine Bosch top rated at 3.0 or 4.0 bar static; these tops are vacuum referenced at a 1:1 ratio and are not adjustable. The no-top version lets you fit your own Bosch insert.

Key Features

• Bosch Insert Based: Uses common OEM Bosch regulator tops
• 1:1 Vacuum Referenced: Bosch tops are vacuum referenced at a 1:1 ratio (fixed, not adjustable)
• 6AN ORB Ports: Two high-pressure 6AN ORB ports
• Integrated Return: 6AN male return port machined into the housing
• Gauge Port: 1/8" NPT female port for a gauge or pressure transducer
• Billet Housing: Compact billet 6061 aluminium, laser etched and anodised

Available Configurations

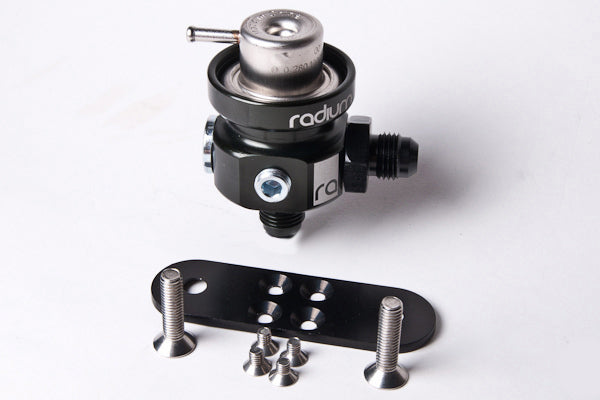

• 20-0010-00: Assembled with Bosch 3.0 bar (43.5 psi) top
• 20-0010-01: Assembled with Bosch 4.0 bar (58.2 psi) top

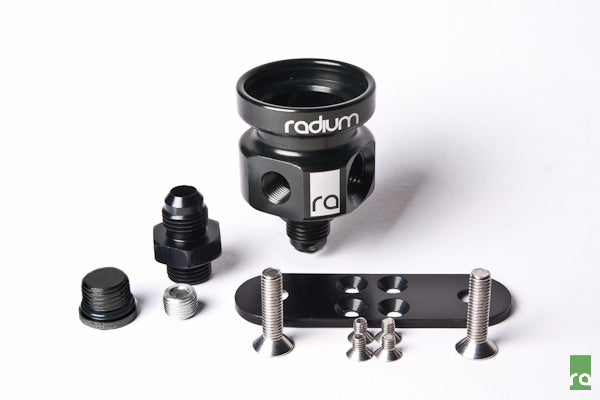

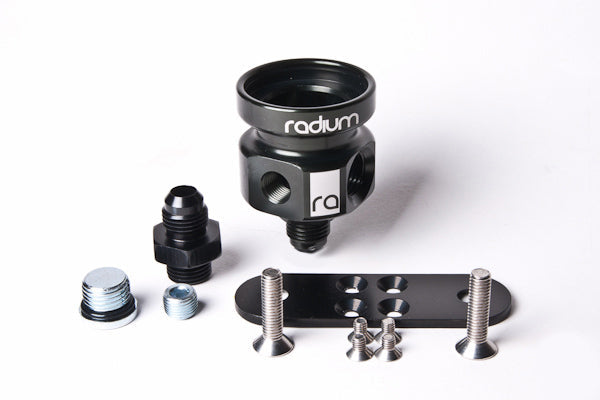

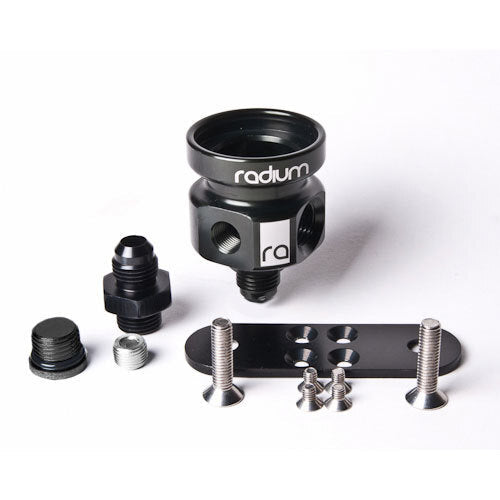

• 20-0014: No regulator top – supply your own Bosch insert

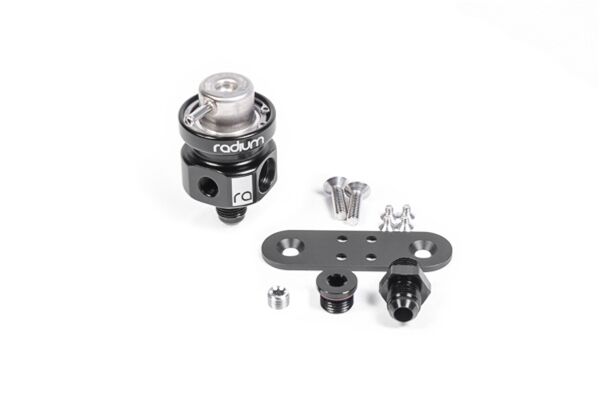

What's Included

• 1x Billet 6061 aluminium housing
• 1x 6AN male adapter fitting
• 1x 6AN ORB plug fitting
• 1x 1/8"-27 NPT port plug
• 1x Stainless steel snap retaining ring
• 1x Anodised aluminium mounting bracket
• Stainless steel mounting hardware
• Bosch regulator top (20-0010-00 and 20-0010-01 only)

Important Notes

• The Bosch regulator tops are fixed-pressure and NOT adjustable
• Pressure ratings were tested with a Walbro 255 lph pump – actual minimum, static and maximum pressures depend on the flow rate of your pump, and a higher-flowing pump may raise the minimum pressure above the rating
• For higher-flow fuel systems Radium recommends its adjustable high-flow fuel pressure regulators
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
