Radium Fuel Hanger Plumbing Kit with Stainless Filter, Chevrolet Camaro LS3/LS7/L99 (2010-2015)

Radium Fuel Hanger Plumbing Kit with Stainless Filter, Chevrolet Camaro LS3/LS7/L99 (2010-2015)

Application: Chevrolet Camaro (2010-2015) – LS3 / LS7 / L99
Part Type: Fuel hanger plumbing kit (10 micron stainless filter)
Part Number: 20-1326-03

The Radium 20-1326-03 Fuel Hanger Plumbing Kit plumbs the Radium 08-17 GM fuel pump hanger to Radium fuel rails in the 2010-2015 Chevrolet Camaro with the LS3, LS7 or L99. It uses a high-flow fuel filter with a 10 micron stainless steel element that can be cleaned and reused.

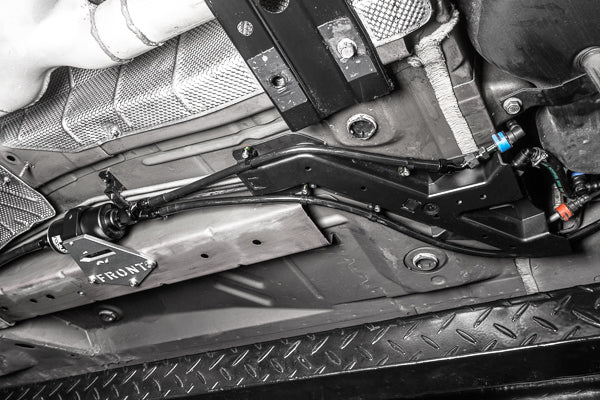

Dual 6AN PTFE feed lines route from the fuel hat to the fuel filter, because a single 8AN line will not fit between the fuel tank and the unibody while two 6AN lines give a larger combined flow area. The back half of the OEM feed line is reused for the OEM fuel pressure sensor needed for ECU diagnostics. An 8AN PTFE line runs from the filter to the RH fuel rail, secured away from the header by a billet aluminium clamp, and a 6AN PTFE line connects the regulator return port to the OEM feed hard line.

Key Features

• Dual 6AN Feed: Two 6AN PTFE feed lines from the fuel hat to the filter
• OEM Sensor Retained: Reuses the back half of the OEM line with the factory fuel pressure sensor
• Check Valve Filter: Included fuel filter has a built-in check valve
• Filter Element: 10 micron stainless steel element that can be cleaned and reused
• Camaro-Specific Mount: Filter mount needs no permanent vehicle modifications
• Heat Protection: Thermal insulating sleeve plus billet clamp holding the 8AN line away from the header

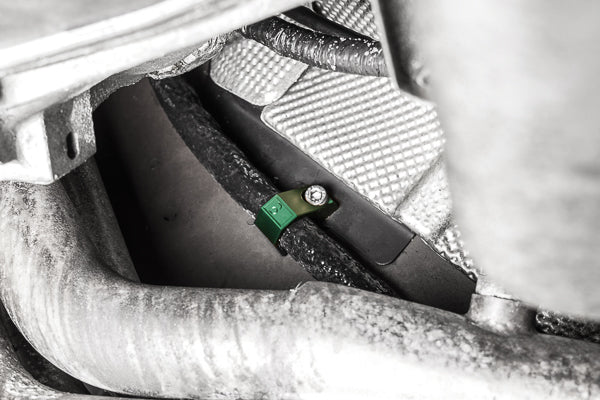

• Hose Retention: 4 green anodised hose retaining adapters with clamps

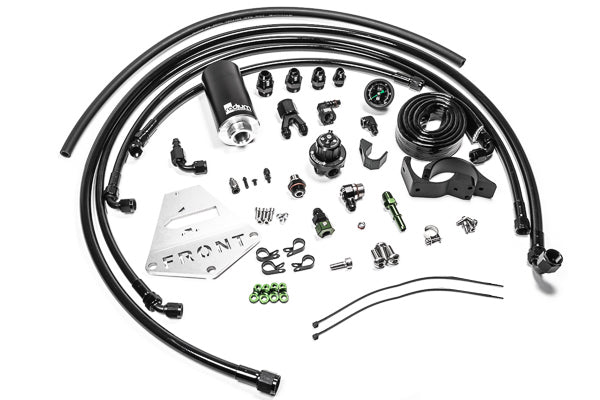

What's Included

• Dual 6AN PTFE feed lines
• 8AN PTFE line from the fuel filter to the RH fuel rail
• 6AN PTFE line from the FPR return port to the OEM feed hard line
• Fuel filter with built-in check valve (10 micron stainless steel element that can be cleaned and reused)

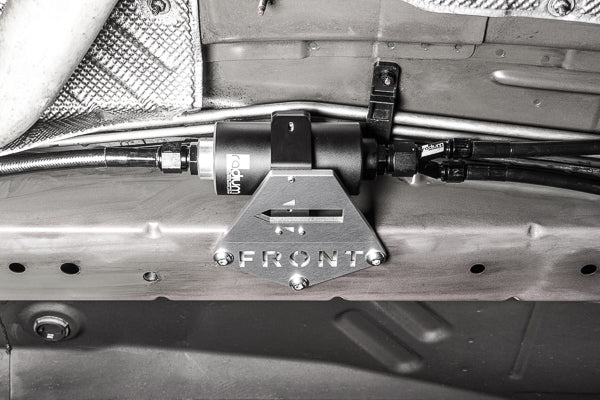

• Camaro-specific fuel filter mount
• Green anodised hose retaining adapters with clamps (x4)
• Billet aluminium hose clamp
• Thermal insulating sleeve

Optional Parts

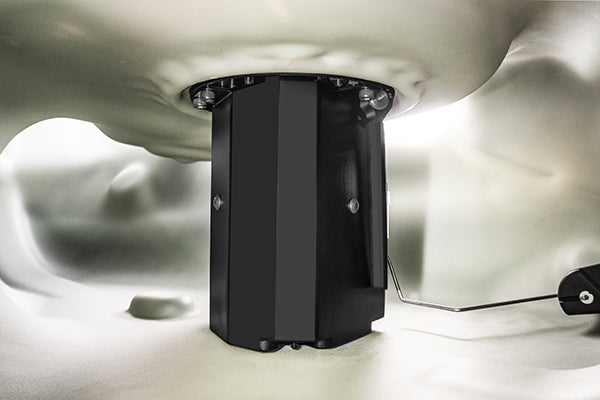

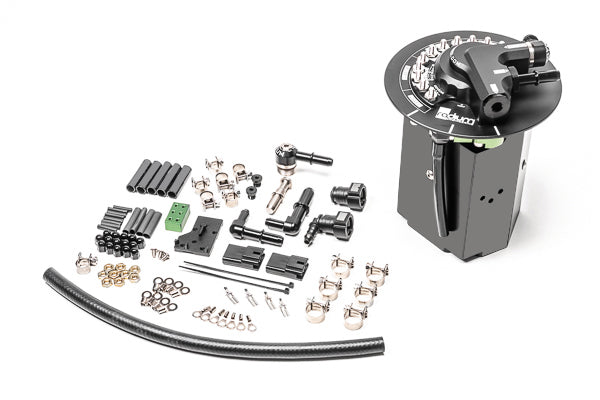

• Radium Fuel Pump Hanger Suit AEM 50-1220/DW440 - Holden Commodore VE VF/Chevolet Camaro SS 10-15 (20-1320) – Radium 08-17 GM fuel pump hanger – select the hanger to suit your pumps

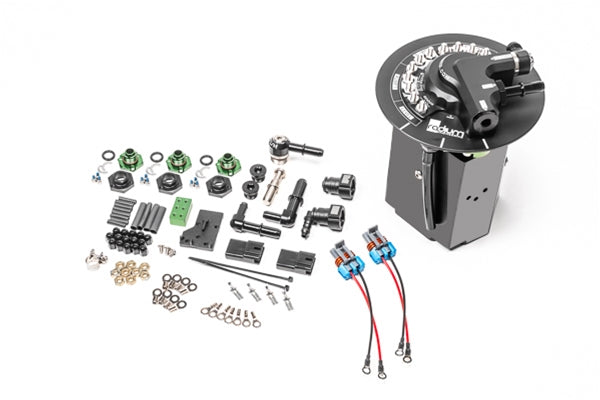

• Radium Fuel Pump Hanger Suit Walbro F90000267/274/285 - Holden Commodore VE VF/Chevolet Camaro SS 10-15 (20-1322) – Radium 08-17 GM fuel pump hanger – select the hanger to suit your pumps
• Radium Fuel Pump Access Cover, Chevrolet Camaro (2010-2015) (20-1323) – Camaro access cover for servicing the hanger without dropping the tank
• Radium Fuel Pressure Gauge 0-100psi (20-0029) – 0-100psi gauge Radium uses to monitor and adjust fuel pressure
• Radium Fuel Hanger Plumbing Kit with Microglass Filter, Chevrolet Camaro LS3/LS7/L99 (2010-2015) (20-1326-05) – same kit with the alternative filter element

Important Notes

• Radium fuel rails and fuel rail plumbing kits are required (sold separately)
• Designed to plumb from a Radium 20-1320 or 20-1322 fuel pump hanger (sold separately) – pumps and injectors are not included
• The fuel pressure regulator and pressure gauge mount directly to the LH fuel rail – confirm with Coore which regulator and gauge are supplied for your build
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Chevrolet Camaro (2010-2015) – LS3
• Chevrolet Camaro (2010-2015) – LS7
• Chevrolet Camaro (2010-2015) – L99

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
