Radium Fuel Hanger Plumbing Kit w/Filter - Toyota Supra A80 93-02

Radium Fuel Hanger Plumbing Kit w/Filter - Toyota Supra A80 93-02

Application: Toyota Supra MK4 JZA80 with Radium fuel pump hanger and aftermarket fuel rail
Part Type: Fuel hanger plumbing kit with filter
Part Number: 20-0415-03, 20-0415-05

The Radium Fuel Hanger Plumbing Kit includes everything required to plumb the fuel system between the Radium pump hanger and the fuel rail in the JZA80 Supra. It is designed for the Radium 2JZ fuel rail (20-0215) and may work with other aftermarket rails, but is not compatible with the stock 2JZ fuel rail.

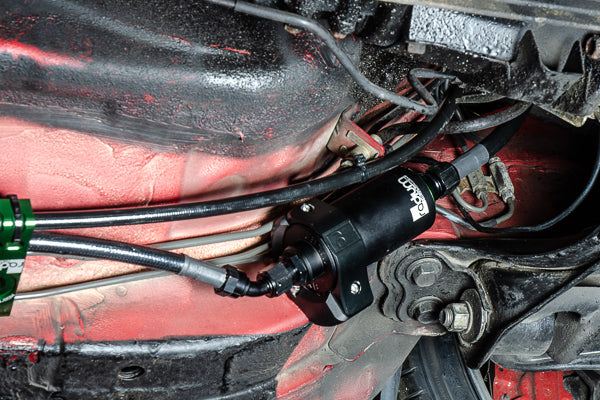

A pre-made 8AN PTFE line runs from the hanger to the filter, and a pre-made 10AN PTFE line runs from the filter to the rail inlet, both clearing the OEM pump cover without cutting or drilling. The filter mounts underneath the car on a billet MKIV Supra mount, and the 6AN EFI rubber return hose runs from the regulator back to the hanger – it can be modified to add an inline flex fuel sensor.

Key Features

• Pre-Made Feed Lines: 8AN PTFE hanger-to-filter and 10AN PTFE filter-to-rail
• No Cutting: Lines clear the OEM pump cover without cutting or drilling
• Billet Filter Mount: MKIV Supra mount under the vehicle with 60mm two-piece clamp
• E85-Compatible Return: 6AN EFI rubber return hose
• Flex Fuel Ready: Return line can be modified for an inline flex fuel sensor

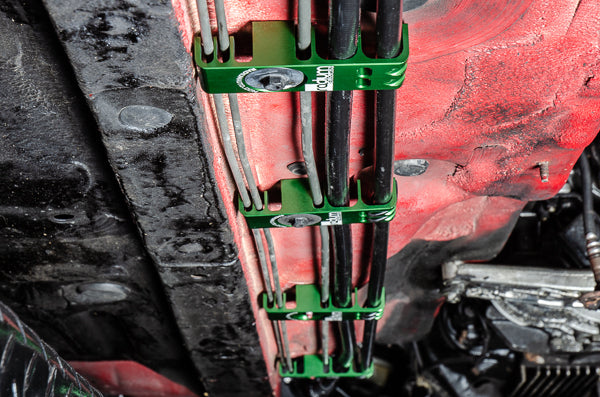

• Line Retainers: Billet aluminium fuel/brake line retainers included

Available Configurations

• 20-0415-03: Stainless filter element
• 20-0415-05: Microglass filter element – Radium's most popular option; meets Bosch Motorsport filtration requirements and works well with E85

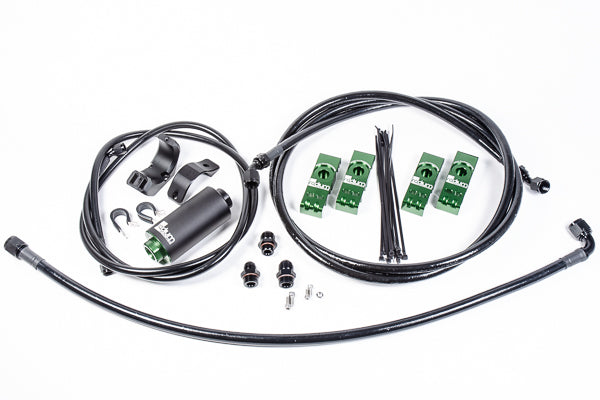

What's Included

• Fuel filter (stainless on -03, microglass on -05)
• Black 8AN and 10AN male adapter fittings (x2)
• Billet aluminium 60mm two-piece filter clamp
• Billet aluminium MKIV Supra filter mount
• 8AN / 10AN PTFE fuel feed line
• 6AN EFI rubber fuel return hose (E85 compatible)
• Billet aluminium fuel/brake line retainers
• Stainless steel hardware

Optional Parts

• Radium Fuel Pump Hanger - Toyota Supra A80 JZA80 (1993-2002) (20-1510 / 20-1511 / 20-1512) – The Radium hanger this kit plumbs from
• Radium Top Feed Conversion Fuel Rail - Toyota Supra JZA80 2JZ-GTE (20-0215) – The Radium 2JZ fuel rail this kit is designed for

Important Notes

• Not compatible with the stock 2JZ fuel rail
• Designed for use with the Radium Supra fuel pump hanger
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Toyota Supra MK4 JZA80 – with Radium fuel pump hanger and Radium 20-0215 (or other aftermarket) fuel rail

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
