Application: Nissan S14/S15 Silvia, 200SX, 240SX and R33/R34 Skyline with Radium late Nissan fuel pump hanger
Part Type: Fuel hanger plumbing kit with fuel filter
Part Number: 20-0702-03, 20-0702-05

This kit includes everything needed to plumb the fuel system between the Radium late Nissan fuel pump hanger and an aftermarket fuel rail. It is not designed for the stock fuel rail.

An 8AN (1/2in) feed hose runs from the hanger through the included Radium fuel filter to an 8AN 90° PushLok hose end, for an aftermarket 8AN male fuel rail fitting (not included). A 6AN (3/8in) return hose runs from the FPR (not included) to the hanger return port, with a 6AN 90° PushLok hose end for an aftermarket 6AN male FPR fitting (not included). The lines run through billet aluminium fuel/brake line retainers and clear the OEM pump cover without cutting or drilling, and the feed or return hose can be modified to add an in-line flex fuel sensor. The filter mounts in the stock location on a billet aluminium Nissan bolt-on mount.

Key Features

• Complete Plumbing: Hanger to aftermarket fuel rail and FPR
• 8AN Feed / 6AN Return: With 90° PushLok hose ends
• Radium Fuel Filter: Stainless or microglass element

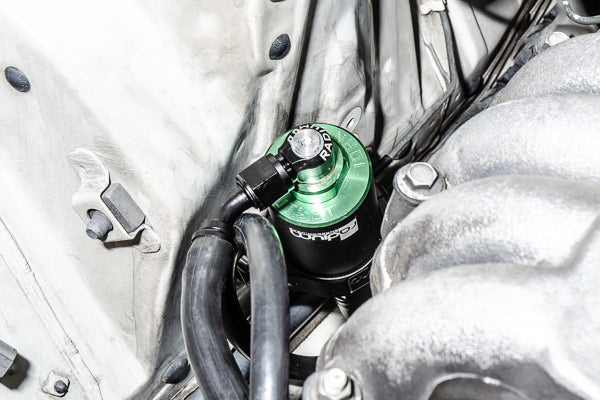

• Stock Filter Location: Billet aluminium Nissan bolt-on filter mount

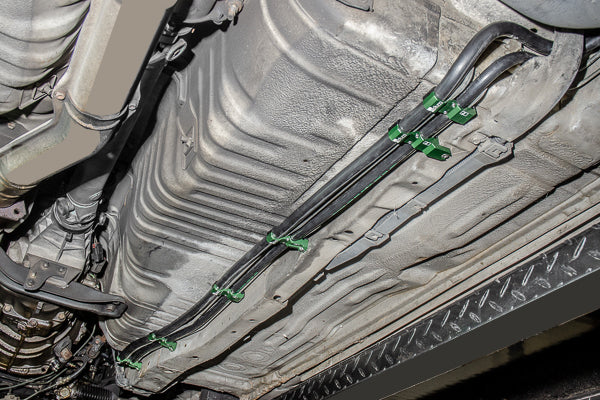

• Clean Routing: Billet line retainers, clears the OEM pump cover with no cutting or drilling
• Flex Fuel Ready: Hoses can be modified for an in-line flex fuel sensor

Available Configurations

• 20-0702-03: 10 micron stainless steel filter element
• 20-0702-05: 6 micron microglass filter element

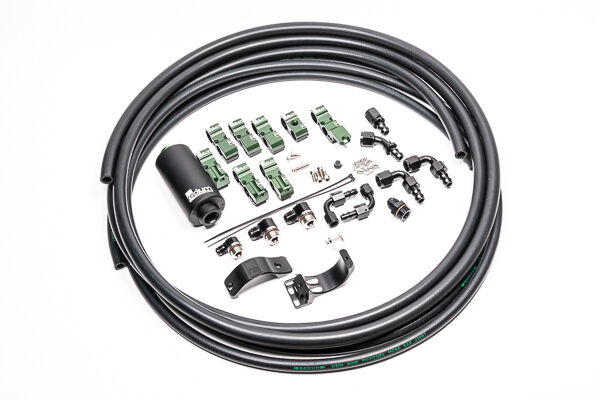

What's Included

• Fuel filter (stainless or microglass, per variant)
• Low-profile 8AN and 6AN fuel hanger fittings
• 8AN fuel filter adapter fittings
• Billet aluminium Nissan filter mount
• 8AN and 6AN PushLok hose ends
• 8AN fuel feed hose
• 6AN fuel return hose
• Fuel/brake line retainers
• Stainless steel hardware

Optional Parts

• Radium Fuel Pump Hanger - Nissan 200SX S14, S15/Skyline R33, R34 (20-0630-00 / 20-0632-00) – the Radium hanger this kit plumbs from
• Radium Fuel Hanger Surge Tank Add-On - Nissan 200SX S14, S15/Skyline R33, R34 (20-0700 / 20-0701) – in-tank surge tank add-on for the hanger

Important Notes

• Not designed for the stock fuel rail
• Aftermarket fuel rail with 8AN male fitting, FPR and 6AN male FPR fitting are required and not included
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Nissan S14 Silvia / 200SX / 240SX – all models/trims, RHD and LHD
• Nissan S15 Silvia / 200SX – all models/trims, RHD and LHD
• Nissan R33 Skyline – all models/trims, RHD and LHD
• Nissan R34 Skyline – all models/trims, RHD and LHD

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
