Radium Fuel Filter Mount - Subaru WRX 08-21/STI 08-21/Forester XT 08-18

Radium Fuel Filter Mount - Subaru WRX 08-21/STI 08-21/Forester XT 08-18

Application: 2008–2021 Subaru Impreza / WRX / STI / Forester
Part Type: Fuel filter mounting bracket and clamp
Part Number: 20-0605

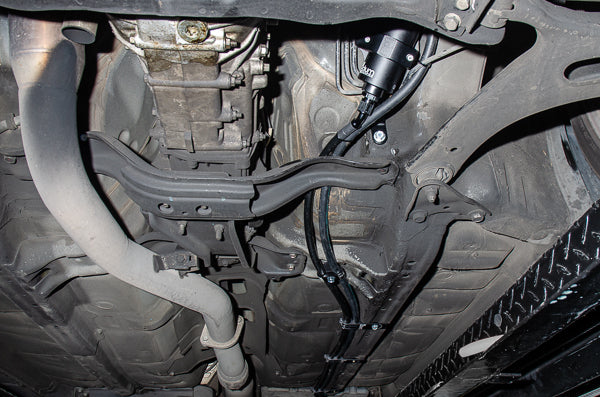

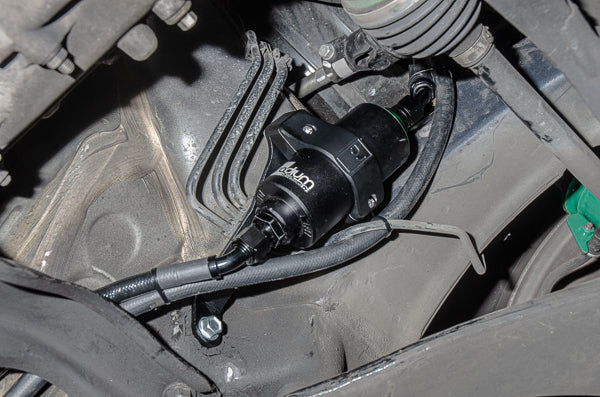

The Radium Late Subaru Fuel Filter Mount locates a Radium fuel filter on the frame rail on the LH side of the transmission. The laser-cut bracket bolts up using OEM holes, and the filter is held by a billet aluminium clamp with stainless steel bolts – no permanent modifications are required.

The 60mm clamp also suits an external Bosch 0 580 254 044 fuel pump.

Key Features

• OEM Mounting: Uses factory holes – no permanent modifications
• Laser-Cut Bracket: Anodised aluminium
• Billet Clamp: Anodised aluminium, 60mm (2.36") diameter
• Stainless Hardware: Stainless steel bolts included
• Location: Frame rail, LH side of the transmission

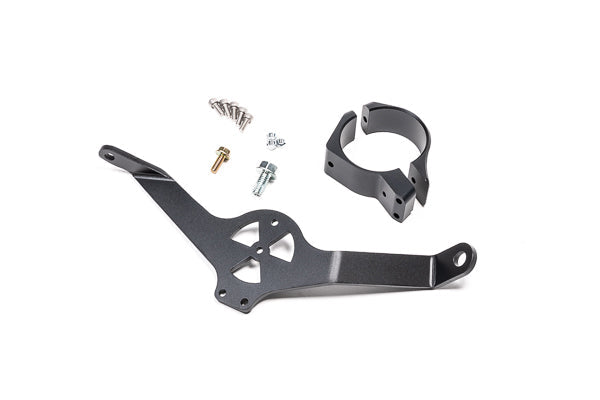

What's Included

• Anodised aluminium mounting bracket
• Anodised aluminium fuel filter mount (clamp)
• Stainless steel mounting hardware

Optional Parts

• Radium High Flow Fuel Filter (20-0220-03 / 20-0220-05) – the filter this mount is designed to hold

Important Notes

• Fuel filter not included
• Aftermarket fuel lines and fittings must be configured separately
• The clamp also fits an external Bosch 0 580 254 044 fuel pump
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Subaru Impreza 2008–2014 (all, incl. WRX and WRX STI)
• Subaru Forester 2008–2014 (all)
• Subaru Forester XT 2014–2018
• Subaru WRX 2015–2021
• Subaru WRX STI 2015–2021

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
