Radium Fuel Filter Mount - Mazda RX-7 FD3S

Radium Fuel Filter Mount - Mazda RX-7 FD3S

Application: Mazda RX-7 FD3S (1992-2002 JDM, 1993-1995 US)
Part Type: Fuel filter relocation mount with finned heat exchanger
Part Number: 20-0448

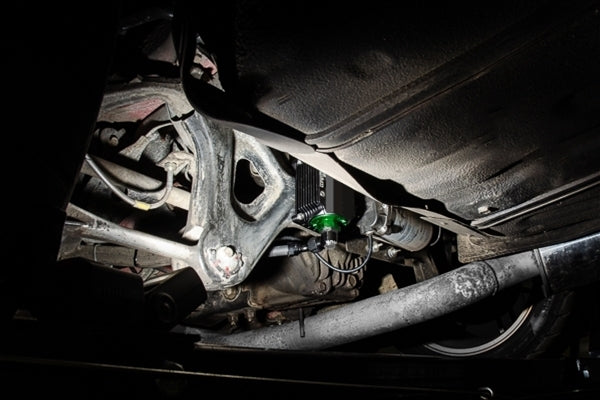

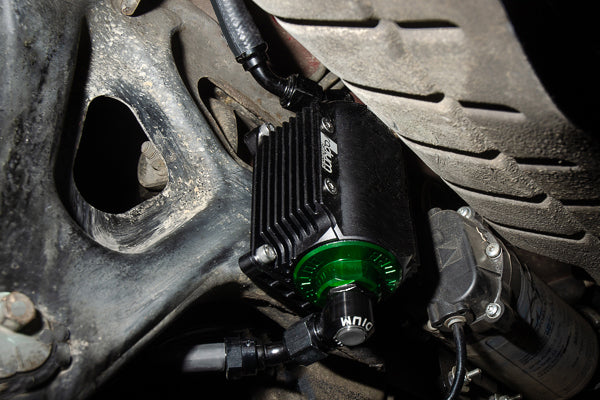

The factory fuel filter on the FD RX-7 is notoriously difficult to service. The Radium Fuel Filter Mount relocates the filter to an easily accessible position on the rear subframe.

The mount incorporates cooling fins that take advantage of the airflow in that area to help reduce the heat generated by high-current, high-pressure fuel pumps. It is designed for custom setups, so the fuel filter, fittings and hose are purchased separately.

Key Features

• Accessible Location: Moves the filter to the rear subframe for easy servicing
• Finned Heat Exchanger: Uses airflow to reduce fuel heat from high-current, high-pressure pumps
• FD-Specific Mount: Anodised aluminium mount designed for the FD RX-7
• Stainless Hardware: Stainless steel mounting hardware included

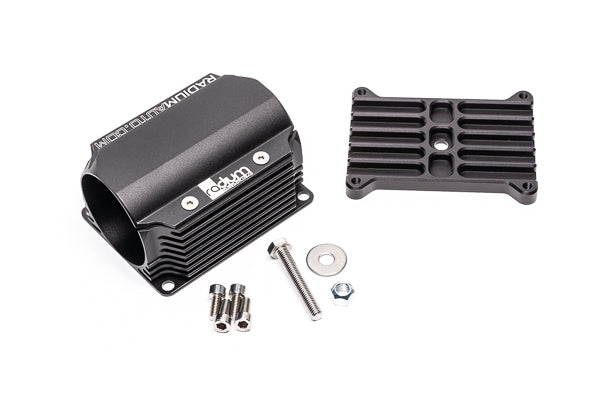

What's Included

• Anodised, laser-engraved heat exchanger
• Anodised aluminium FD RX-7 filter mount
• Stainless steel hardware

Optional Parts

• Radium 20-1000-1008 Low Profile Swivel Banjo Fitting, 10AN ORB to 8AN Male (20-1000-1008) – 10AN ORB swivel banjo to 8AN male, as shown on the filter in Radium's installed photo
• Radium 14-0207 PushLok Hose End, 8AN 45° (14-0207) – 8AN 45° PushLok hose end, as shown in Radium's installed photo

Important Notes

• A Radium fuel filter, 10AN ORB fittings and fuel feed hose are required and sold separately
• Plumbing varies by setup, but 90-degree fittings are required on both ends of the filter
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Mazda RX-7 FD3S (1992-2002, JDM)
• Mazda RX-7 FD3S (1993-1995, US)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
