Radium Fuel Filter Mount, BMW E90 / E91 / E92 / E93

Radium Fuel Filter Mount, BMW E90 / E91 / E92 / E93

Application: BMW E90 / E91 / E92 / E93 3 Series with N54 or N55 engine
Part Type: Fuel filter mount kit
Part Number: 20-1475

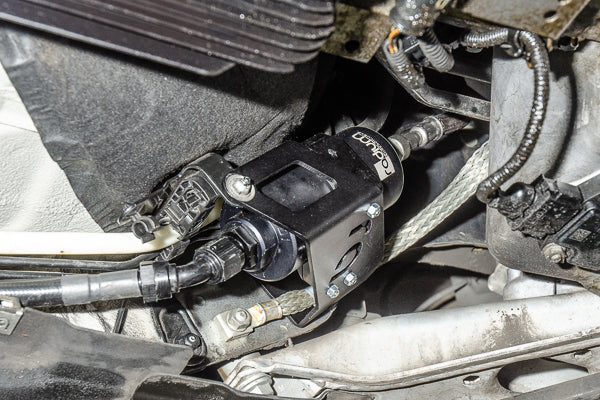

The Radium Engineering 20-1475 is the hardware for installing a Radium fuel filter in a BMW E90, E91, E92 or E93 3 Series. The formed aluminium bracket secures to the OEM threaded studs using the OEM flange nuts, locating the filter just left of the transmission.

A billet aluminium clamp secures the filter with stainless steel bolts. The clamp also suits an external Bosch 0 580 254 044 fuel pump. The filter and 10AN ORB fittings are sold separately.

Key Features

• OEM Mounting: Bolts to the factory chassis studs with the OEM flange nuts
• Location: Positions the filter just left of the transmission
• Billet Clamp: Anodised billet aluminium clamp, 60mm (2.36in) diameter
• Formed Bracket: Formed anodised aluminium bracket
• Hardware: Stainless steel bolts and zinc-plated locking nuts

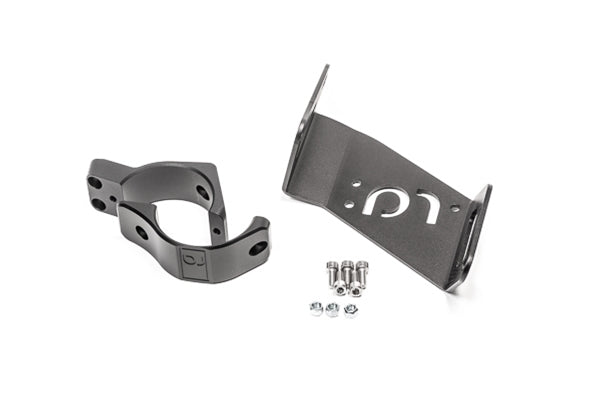

What's Included

• Anodised aluminium mounting bracket
• Anodised aluminium fuel filter mount
• Stainless steel mounting hardware

Optional Parts

• Radium High Flow Fuel Filter (20-0220-03 / 20-0220-05) – Radium high-flow fuel filter to suit the 60mm clamp (sold separately)

Important Notes

• Fuel filter and 10AN ORB fittings are NOT included
• Aftermarket fuel lines and fittings must be configured separately
• NOT compatible with the S65 V8 engine (E9x M3)
• The clamp also suits an external Bosch 0 580 254 044 fuel pump
• Radium's listing does not specifically mention right-hand-drive (Australian-delivered) vehicles – confirm fitment with Coore before ordering
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• BMW E90 3 Series (N54 or N55)
• BMW E91 3 Series (N54 or N55)
• BMW E92 3 Series (N54 or N55)
• BMW E93 3 Series (N54 or N55)

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
