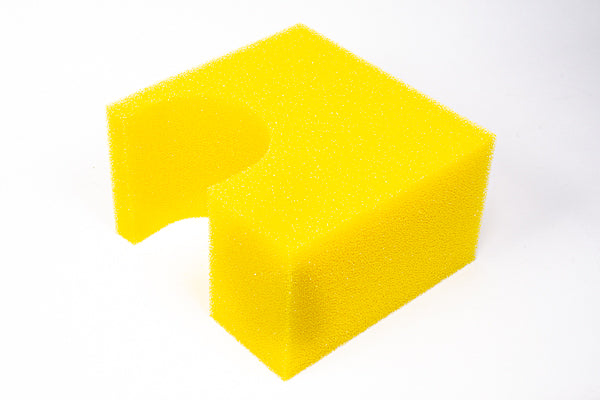

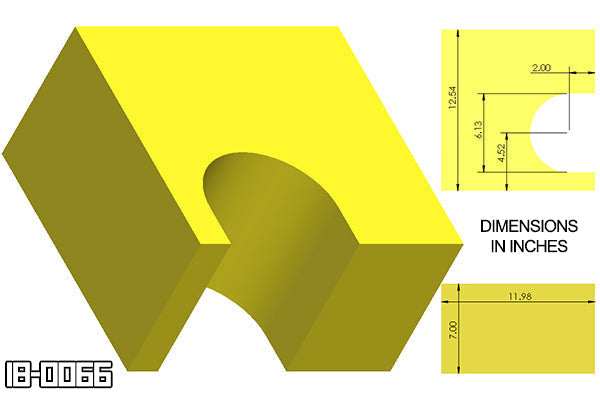

Radium Fuel Cell Foam, One Piece

Radium Fuel Cell Foam, One Piece

Application: Radium RA-Series fuel cells; universal for any fuel cell or tank
Part Type: Fuel cell safety foam (one piece)
Part Number: 18-0066

Mandated by the FIA, fuel cell foam acts as both an explosion suppressant and baffling. Radium's reticulated polyurethane foam meets MIL-DTL-83054C Type II and, at a nominal 15 pores per inch, displaces only 0.26L (0.07 US gal / 9oz) of fuel per piece. All Radium fuel cells come preassembled with this foam.

Inspect fuel cell foam after every race season and replace it at least every 3 seasons. Radium's testing with high-content alcohol fuels (ethanol and methanol) showed no foam deterioration, but more frequent inspections are advised as alcohol could shorten foam life.

Key Features

• Starvation Protection: Limits fuel aeration to keep delivery to the pickup constant
• Reduced Fuel Movement: Minimises fuel weight transfer under cornering, acceleration and braking
• Explosion Suppression: Displaces fuel vapours, reducing explosion potential
• MIL-Spec Foam: Reticulated polyurethane meeting MIL-DTL-83054C Type II
• Low Displacement: Displaces only 0.26L (0.07 US gal / 9oz) of fuel per piece

What's Included

• 1x piece of fuel cell foam

Important Notes

• Inspect after every race season and replace at least every 3 seasons
• Inspect more often when running ethanol or methanol fuels

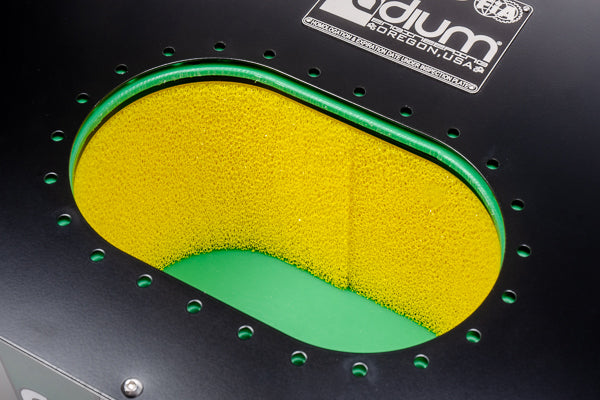

• Foam is inserted through the 6" x 10" opening – the old foam can be used as a cutting reference

Vehicle Fitment

• Radium 6 gal fuel cell – 2 pieces, cut each end 126mm (4.95in) shorter
• Radium 10 gal fuel cell – 2 pieces, no modification
• Radium 10.5 gal spare tyre fuel cell – 2 pieces, cut each piece into 3 sections
• Radium 14 gal fuel cell – 3 pieces, cut 1 piece in half lengthways
• Radium 22 gal fuel cell – 5 pieces, cut 1 piece in half lengthways
• Universal – can be cut to suit any fuel cell or tank

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
