Radium Engineering Ford Sensor Adapter, 8AN ORB, 16mm Bore, 41mm Offset Spacing, M5

Radium Ford Sensor Adapter, 8AN ORB, 16mm Bore, 41mm Offset Spacing, M5

Application: Fuel rails with an 8AN ORB female port, reusing a Ford-style fuel pressure sensor (16mm bore, 41mm offset spacing)
Part Type: Billet fuel rail sensor adapter
Part Number: 20-1303

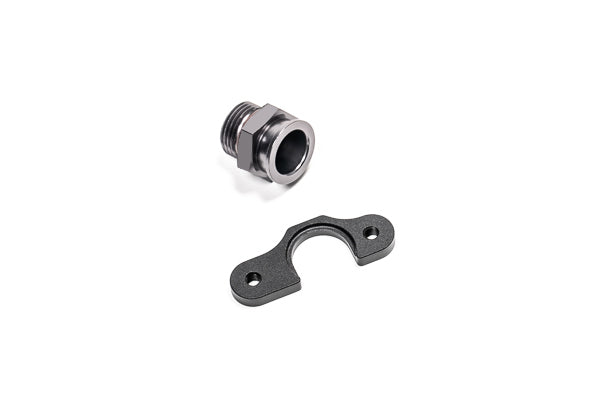

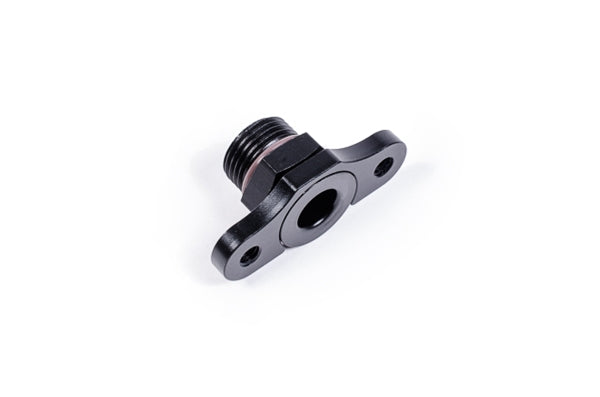

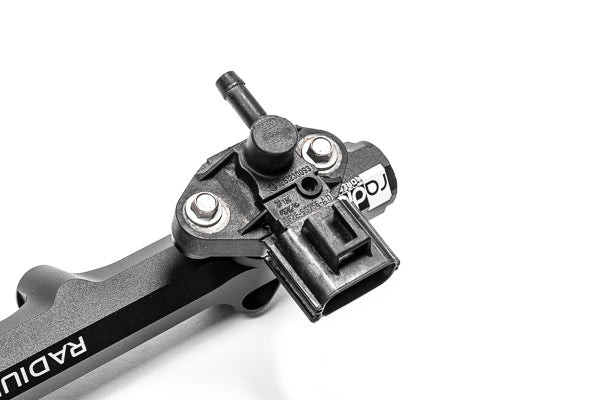

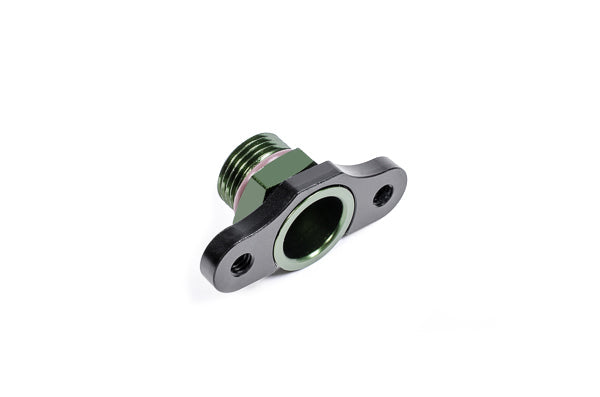

The Radium 20-1303 Ford Sensor Adapter lets a Ford fuel pressure sensor be reused on an aftermarket fuel rail. It adapts to virtually any fuel rail with an 8AN ORB female port and enough space around it for the sensor to fit.

The adapter has an offset 41mm mounting hole spacing and suits components with a 16mm bore. Like all Radium OEM component adapters it is machined from billet 6061 aluminium and anodised, and lets the sensor be clocked into the correct position.

Key Features

• 8AN ORB: Threads into any 8AN ORB female fuel rail port
• Ford Sensor: Accepts a Ford-style sensor with 16mm bore and 41mm offset mount spacing
• Clockable: Sensor can be clocked into the proper position
• Billet: Anodised billet 6061 aluminium

Important Notes

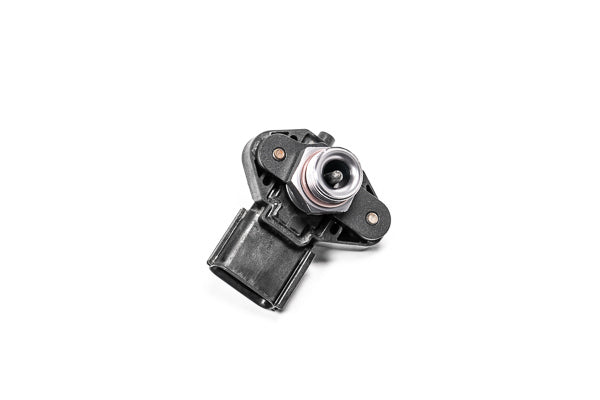

• The compatible sensor must have a 16mm bore and 41mm mount hole spacing
• Check there is enough space around the fuel rail port for the sensor to fit
• Sensor not included
• Radium's title gives M5 mounting screws; its description text reads "M56x0.8mm" (typo) – contact iilumolab if you need the exact screw size confirmed

Vehicle Fitment

• Universal fuel rails with an 8AN ORB port – reuses the fuel pressure sensor from the following vehicles:
• Ford Mustang 2005-2010
• Ford Explorer 2004-2010
• Ford Focus 2005-2009
• Ford F-150 2005-2008
• Ford F-250 2005-2010
• Ford F-350 2005-2010
• Shelby GT500 2011-2014

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.
