Radium Engineering Fluid Lock CCV Catch Can Kit for Nissan Silvia/200SX S15 SR20DET

Radium Fluid Lock CCV Catch Can Kit - Nissan Silvia/200SX S15 (SR20DET)

Application: Nissan Silvia / 200SX S15
Part Type: Fluid Lock CCV oil catch can kit
Part Number: 20-0636-FL

The Radium CCV Catch Can Kit for the S15 Silvia and 200SX separates oil and water condensation from crankcase vent gases, helping keep the intake pipe, intercooler and throttle body clean.

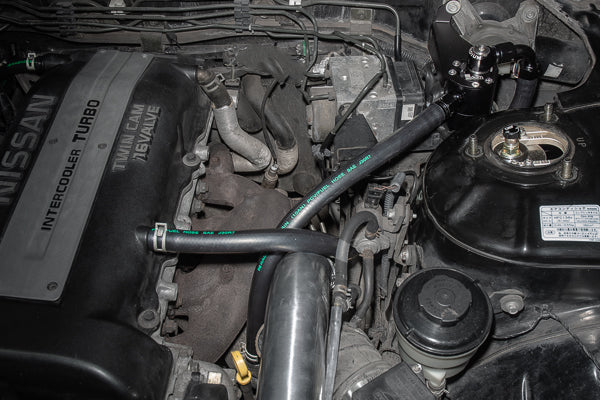

The CCV can runs inline between the crankcase vent port and the intake pipe, mounting to two of the wiper motor mounts. Under high load it captures oil and sludge before it reaches the intake pipe and intercooler, then returns filtered air to the intake, retaining the factory CCV function.

Key Features

• Closed Loop: Does not vent to atmosphere
• Fluid Lock: Patented design prevents overfilling and traps collected fluid
• Large Ports: 10AN ORB inlet and outlet, 4AN ORB drain
• Two-Step Baffling: Separates oil from crankcase gases
• O-Ring Sealed Dipstick: Check oil level without removing the can
• Direct Fit: Nissan-specific bracket, no drilling required

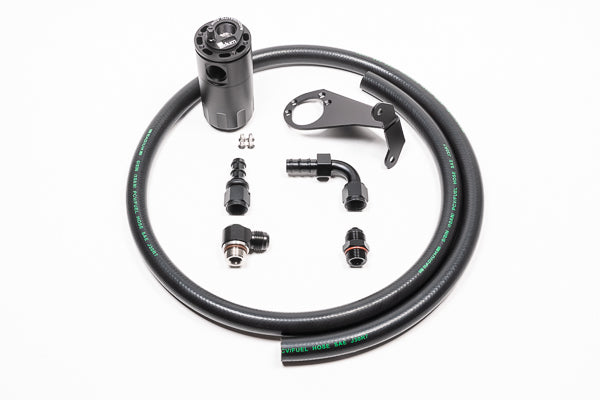

What's Included

• Baffled Fluid Lock oil catch can
• Nissan-specific mounting bracket
• AN adapter fittings and hose ends
• Stainless steel hardware
• Radium hose

Optional Parts

• Radium PCV Fluid Lock Catch Can Kit - Nissan Silvia/200SX S15 (SR20DET) (20-0635-FL) – pair with the CCV kit for complete crankcase coverage
• Radium Dual Fluid Lock Catch Can Kit - Nissan Silvia/200SX S15 (SR20DET) (20-0637-FL) – PCV and CCV kits combined
• Radium Catch Can Petcock Drain Kit (20-0024) – drain the can without removing the lower reservoir, where there is room underneath

Important Notes

• This kit does not address blow-by on the PCV valve side of the crankcase
• Radium recommends pairing this kit with the PCV Catch Can Kit (20-0635-FL)
• Radium's Fluid Lock design (introduced 2022) uses a patented mechanism that prevents the can from being overfilled and holds collected fluid until it is emptied
• There is no fixed emptying interval – start checking the dipstick after 3–4 weeks of driving and adjust from there; PCV cans typically fill faster than CCV cans
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Nissan Silvia S15
• Nissan 200SX S15

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.

Installation

We always recommend professional fitment for guaranteed satisfaction. If you're wanting a hassle-free installation, feel free to contact our friendly team as we offer installation services in-store at our Melbourne workshop. For more details, contact us here.
