Radium Engineering FHST Extension Add-On for Audi R8 Type 4S / Lamborghini Huracan

Radium FHST Extension Add-On, Audi R8 Type 4S / Lamborghini Huracan

Application: Radium 20-0860 FHST in the Audi R8 Gen 2 (Type 4S) and Lamborghini Huracan
Part Type: FHST extension add-on
Part Number: 20-0868

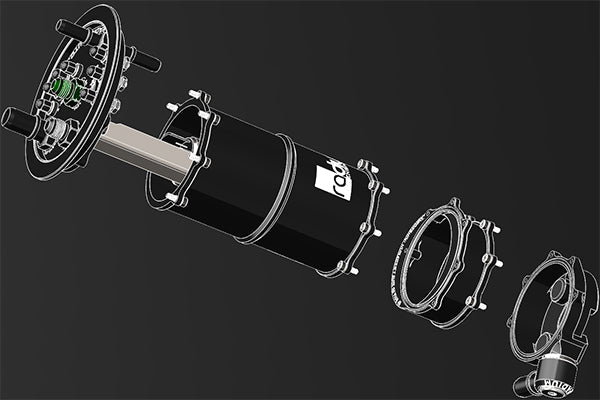

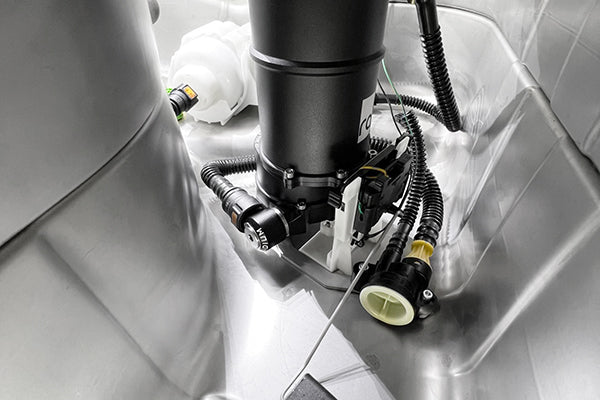

The Radium Engineering 20-0868 extension kit adds about 0.2L (7oz) of fuel capacity to the Radium 20-0860 fuel hanger surge tank by using a 39mm (1.5in) deeper canister. The extension section mounts between the canister and the bottom cap, locating the bottom of the FHST to clear the fuel level sensor.

Longer tubing and a longer pump bracket are included to keep the fuel pump inlet at the bottom of the surge tank, and a stainless steel mount secures the OEM venturi jet pump out of the way. Radium strongly advises fitting the extension to Huracan and Gen 2 R8 installations so the FHST reaches the lowest parts of the tank.

Key Features

• Extra Capacity: Adds approximately 0.2L (7oz) to the FHST
• Deeper Canister: Extends the canister by 39mm (1.5in)
• Clears Level Sensor: Positions the bottom of the FHST to clear the fuel level sensor
• Pump Inlet Low: Extended tubing and pump bracket keep the pump inlet at the bottom
• Jet Pump Mount: Stainless steel mount secures the OEM venturi jet pump

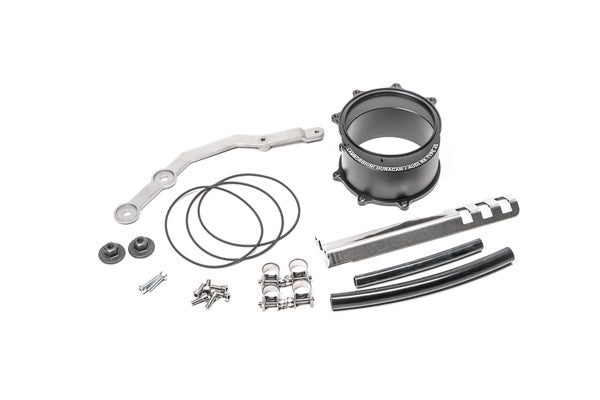

What's Included

• Canister mid section
• Canister O-rings, FKM (x3)
• Convoluted tubing, large ID
• Convoluted tubing, small ID
• Stainless steel venturi jet pump mount
• Stainless steel pump bracket, extended
• Stainless steel EFI clamps, large ID (x2)
• Stainless steel EFI clamps, small ID (x2)
• Stainless steel socket head screws (x6)
• Thread forming nuts (x2)
• Zinc-plated steel screws

Optional Parts

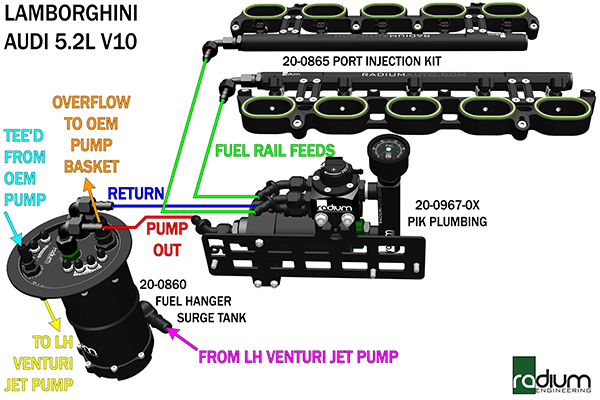

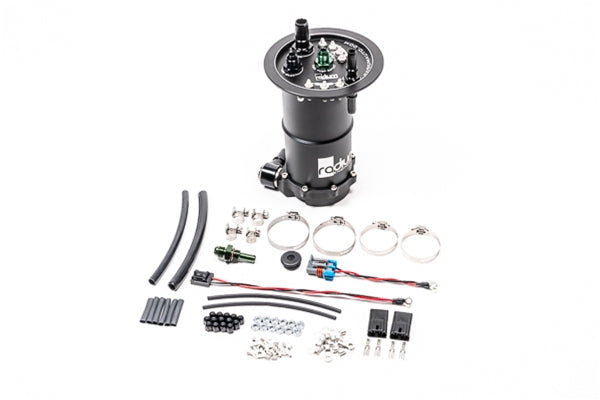

• Radium Fuel Hanger Surge Tank (FHST), Audi R8 / Lamborghini Gallardo / Huracan (20-0860) – the Radium FHST this extension fits (required)

Important Notes

• Requires the Radium 20-0860 fuel hanger surge tank (sold separately)
• Compatible with deep tanks only (Audi R8 Type 4S and Lamborghini Huracan)
• NOT compatible with the Audi R8 Gen 1 (Type 42) or Lamborghini Gallardo (LP550-2, LP560-4, LP570-4)
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Audi R8 Gen 2 (Type 4S)
• Lamborghini Huracan LP580-2
• Lamborghini Huracan LP610-4
• Lamborghini Huracan LP640-4
• Lamborghini Huracan EVO
• Lamborghini Huracan STO
• Lamborghini Huracan Tecnica

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.

Installation

We always recommend professional fitment for guaranteed satisfaction. If you're wanting a hassle-free installation, feel free to contact our friendly team as we offer installation services in-store at our Melbourne workshop. For more details, contact us here.

Note

Upon receiving the item, please ensure that the part is indeed the correct item you have ordered. This can be achieved by checking labels on the packaging. Please also ensure a proper test fit of the item is conducted prior to paint and/or installation. Returns/Warranty claims will be voided if the item has been tampered with, or is no longer in resalable/new condition.
