Radium FCST-X Spare Drop-In Pump Module, Bosch BR540 / DW400
Tax included. Shipping calculated at checkout
Description
Radium FCST-X Spare Drop-In Pump Module, Bosch BR540 / DW400
Application: Radium FCST-X fuel cell surge tank
Part Type: FCST-X spare drop-in lift and surge pump module (pumps not included)
Part Number: 20-1997

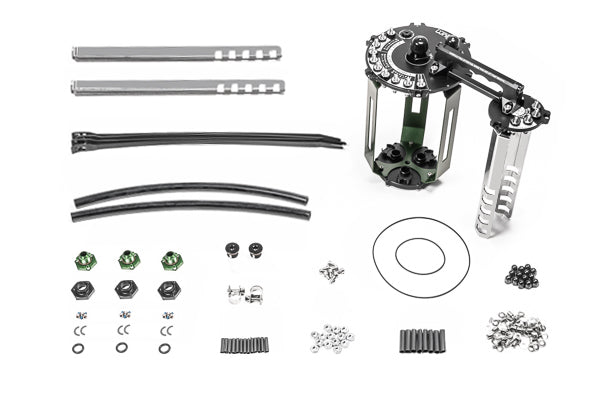

The Radium 20-1997 FCST-X Spare Drop-In Pump Module is an additional lift and surge pump assembly for super fast pit stops. If fuel pressure issues arise, 9 bolts out and back in will get your team back on track.

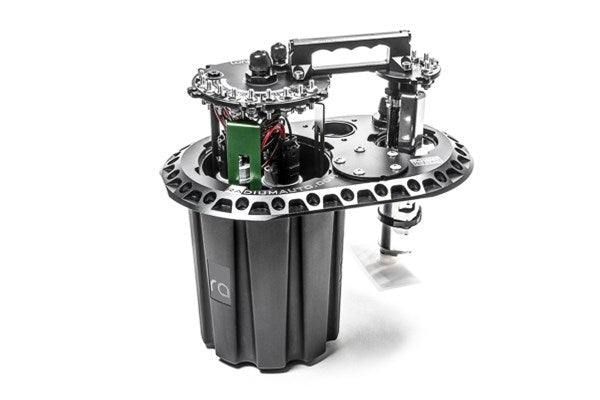

This module suits Bosch BR540 or DeatschWerks DW400 pumps. Inside the FCST-X, a lift pump scavenges fuel into the 2.6L surge tank, where up to 3 EFI pumps in separate filtration chambers feed the engine, while 3 one-way fill valves (355LPH each) and the FPR return keep the surge tank full.
Key Features
- Quick Swap: 9 bolts out and back in for a complete pump module change
- Pump Compatibility: Bosch BR540 or DeatschWerks DW400

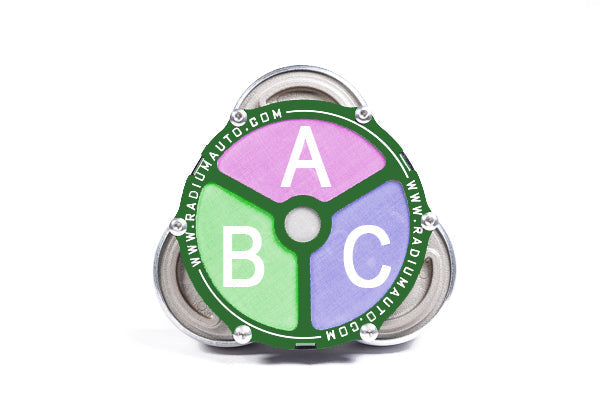

- Up To 3 Surge Pumps: Independent filtration chambers; empty ports do not need blocking off

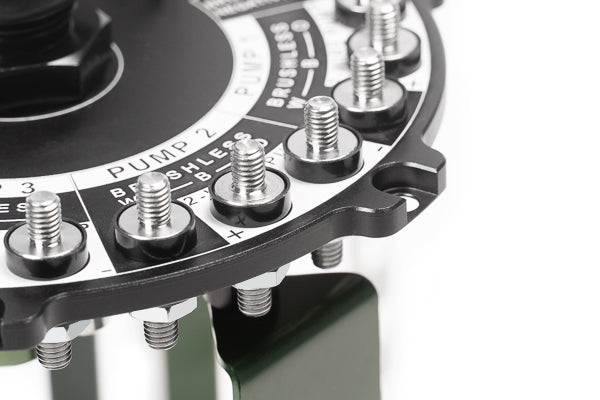

- Electrical: Hermetically sealed high-current stainless studs with anti-rotation terminals
Optional Parts
- Radium FCST-X, Fuel Cell Surge Tank (20-1990-00 / 20-1991-00 / 20-1992-00 / 20-1993-00) – required – the FCST-X used as the central surge tank (earlier non-X FCST not compatible)
Important Notes
- Pumps are not included
- Bosch BR540: this pump has no built-in check valve, so multiple surge pumps must be run together (not staged)
- DeatschWerks DW400: use the electrical connector provided with the pumps, and the filter sock supplied with the pump for the lift pump
- The lift pump is matched to the same style of pump used inside the surge tank
Vehicle Fitment
- Radium FCST-X fuel cell surge tank (matching pump family)
Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
