Radium Engineering FCST-X Fuel Cell Surge Tank, 2 Surge Pumps + 1 Lift Pump (Walbro F900)

Radium FCST-X Fuel Cell Surge Tank, 2 Surge Pumps + 1 Lift Pump (Walbro F900)

Application: Universal – motorsport fuel cells with a 6in x 10in 24-bolt flange
Part Type: Fuel cell surge tank with pumps included (Walbro F90000274)
Part Number: 20-1992-02

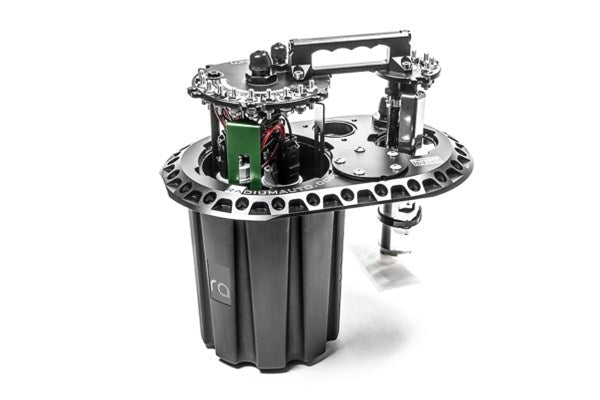

The Radium 20-1992-02 FCST-X Fuel Cell Surge Tank comes pre-assembled with 2 preinstalled Walbro F90000274 surge tank pumps plus a matching Walbro F90000274 lift pump. Because the lift pump height must be set to suit the fuel cell, the lift pump is packed loose; if Radium assembles the FCST-X into a fuel cell it is pre-installed.

A lift pump scavenges fuel from the bottom of the cell into the 2.6L surge tank, where up to 3 EFI pumps in separate filtration chambers feed the engine. Three one-way fill valves (355LPH each) top up the surge tank whenever the cell level is higher, and the FPR return is also routed into the surge tank to keep it full – so the engine stays fed even if the lift pump starves. The FCST-X is the result of 10 years of refinement of the original 2013 Radium FCST.

Key Features

• Pumps Included: 2 x Walbro F90000274 surge pumps preinstalled, plus 1 x Walbro F90000274 lift pump (packed loose)
• 2.6L Surge Tank: Increased surge tank capacity (up from 2.2L)
• 3 Fill Valves: One-way FKM fill valves flow 355LPH each (1065LPH total)

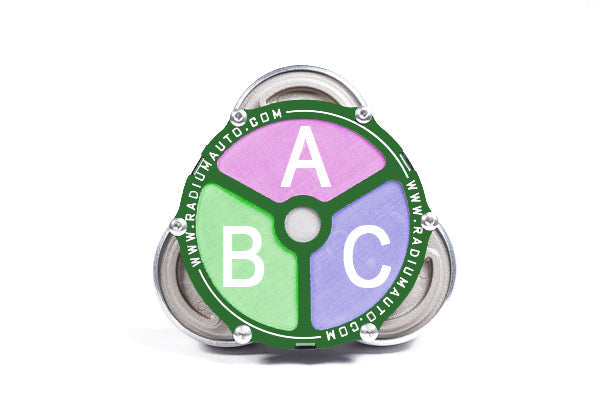

• 3 Chambers: Up to 3 surge pumps in independent filtration chambers; unused ports do not need blocking off
• Quick Service: 9 bolts for lift and surge pump access, integrated service handle, no sealing washers or retaining brackets

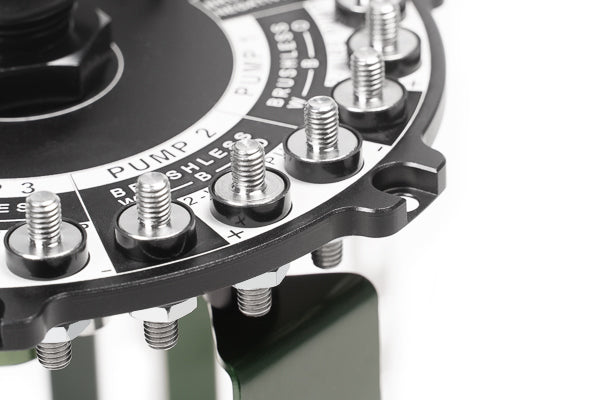

• Electrical: Hermetically sealed high-current stainless studs with anti-rotation terminals
• Construction: Full CNC machined, anodised aluminium
• Fuel Compatibility: Leaded and unleaded gasoline, methanol, ethanol, E85 and more

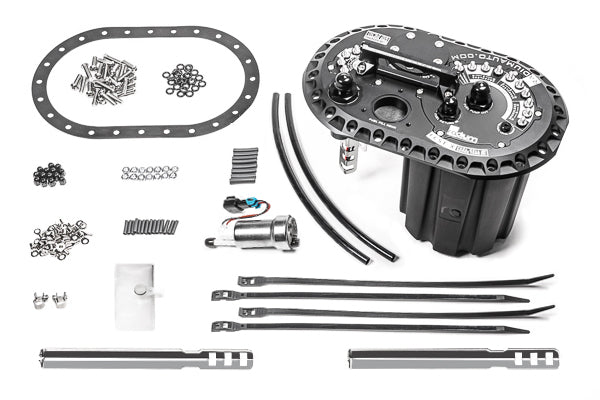

What's Included

• FCST-X fuel cell surge tank with 2 x Walbro F90000274 surge pumps and filters installed
• 1 x Walbro F90000274 lift pump (packed loose)
• Anodised aluminium 6x10 plate, surge pump hat, lift pump hat, service handle, level sensor plate, surge pump bracket and acorn nuts
• Stainless lift pump mounts (shallow and deep)
• Lift pump and surge pump filters
• 8AN rollover vent valve (20-0934)
• FKM refuelling rollover seal, 6x10 24-hole gasket and 3 one-way fill valves
• 8AN ORB to 6AN male return fitting and 10AN ORB to 8AN male pump-out fitting
• 2AN ORB level switch plug
• Electrical wire ring terminals

Optional Parts

• Radium Engineering FCST-X 3-Bolt Remote Mount Fill Neck - Straight with 1.5" Barb (20-1027) – remote mount fill neck for the FCST-X 3-bolt filler flange
• Radium Engineering FCST-X 3-Bolt Remote Mount Fill Neck - 24AN Elbow with 1.5" Barb (20-1047) – remote mount 24AN 75° elbow fill neck for the FCST-X 3-bolt filler flange
• Radium Fuel Level Switch, 1/8" NPT (20-0461) – level switch that can trigger a relay or ECU input to control the lift pump
• Radium Fuel Level Diagnostic Indicator (20-0508) – diagnostic indicator for the level switch – warns when surge tank level drops 20% or more
• Radium DSV 12AN ORB To 12AN Male - Quick Fill (Internal) (20-0535) – high-flow 12AN vent valve for quick-fill dry break systems
• Radium Engineering FCST-X Lift Pump Mounts - Universal All Depths (20-1214) – lift pump mounts for deeper fuel cells

Important Notes

• Fuel cell not included – the FCST-X fits Radium fuel cells or any cell with a 6in x 10in 24-bolt top flange opening and at least 196mm (7.7in) depth
• The lift pump is packed loose so its height can be set to suit the cell (pre-installed if Radium assembles the FCST-X into a fuel cell)
• A fuel filler with a 3-bolt flange (59.5mm PCD) is required – direct and remote filler options are available
• A hose and/or filter must be connected to the VENT port
• Cells deeper than 323mm (12.7in) need separate lift pump mounts
• Fuel level sender sold separately – a block-off plate is fitted as standard
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Universal – Radium fuel cells, or any fuel cell with a 6in x 10in 24-bolt top flange opening and at least 196mm (7.7in) depth
