Radium Engineering Remote Mount Fuel Filler - 1.5" Vented

Radium Engineering Remote Mount Fuel Filler - 1.5" Vented

Application: Universal – remote mount, connects to 1.5in (38mm) ID filler hose
Part Type: Remote mount vented standard fuel filler, 1.5in
Part Number: 20-1005-V

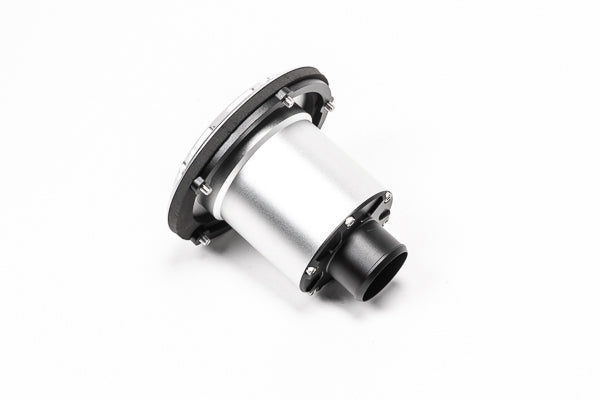

A remote mounted fuel filler is mounted elsewhere on the vehicle, such as the fender, rather than directly on the fuel tank or fuel cell. The Radium 20-1005-V is a vented standard filler for remote mounting, usually secured to the vehicle body. A filler hose links it to the fill neck on the fuel cell or surge tank.

The threaded, vented cap has roll-over protection in case the vehicle becomes inverted. A machined 1.5in barb on the fill neck takes the filler hose. The outlet adapter can be swapped by removing 6 screws, and the filler can be upgraded to a dry break with the 20-0549-V because it shares threads with Radium's dry break and swing valve caps.

Key Features

• Vented Cap: Threaded vented cap with roll-over protection
• Remote Mount: Mounts to the body, such as a fender, away from the tank
• 1.5in Barb: Machined straight 1.5in barb for the filler hose

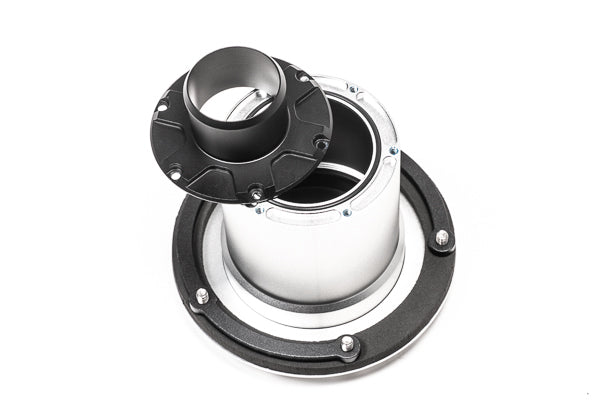

• Swappable Outlet: Outlet adapter changes to 2.25in or 24AN by removing 6 screws
• Dry Break Upgrade: Shares threads with Radium dry break and swing valve caps – upgradable with 20-0549-V
• Construction: Anodised aluminium housing and nut ring with stainless steel hardware

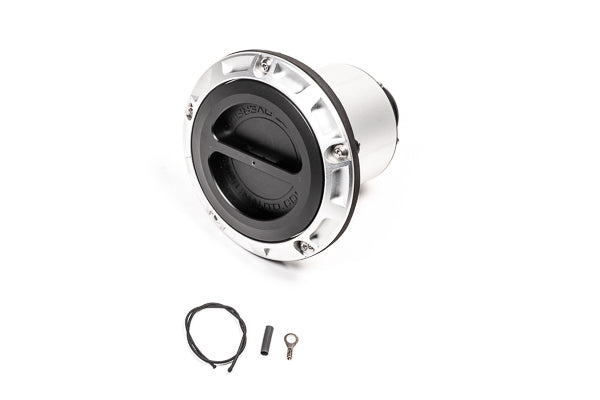

What's Included

• Vented cap with roll-over protection
• Flanged fill neck for 1.5in ID hose
• Ozone and flame-resistant gasket
• Anodised aluminium nut ring
• Stainless steel M5 bolts
• Tether components

Optional Parts

• Radium Dry Break, 1.5In, Female, Vented (20-0549-V) – upgrade the filler to a 1.5in female vented dry break
• Radium Remote Mount Filler Adapter, 2.25In (20-1007) – swap the outlet to 2.25in filler hose
• Radium Engineering Remote Mount Filler Adapter - 24AN (20-1008) – swap the outlet to a 24AN connection
• Radium Remote Mount Filler Adapter, 1.5" (20-1015) – replacement 1.5in outlet adapter
• Radium Fuel Fill Neck Hose Kit - 1.5" ID (20-0597) – 1.5in ID filler hose kit
• Radium Fuel Fill Neck Hose Kit, 1.5in, Clear (20-0602) – clear 1.5in filler hose kit
• Radium Fuel Cap, Remote Mount, Vented (20-0548-V) – replacement vented cap
• Radium Engineering FCST-X 3-Bolt Remote Mount Fill Neck - Straight with 1.5" Barb (20-1027) – FCST-X straight remote fill neck for the tank end
• Radium Engineering FCST-X 3-Bolt Remote Mount Fill Neck - 24AN Elbow with 1.5" Barb (20-1047) – FCST-X 24AN elbow remote fill neck for the tank end

Important Notes

• Requires a 77mm (3.03in) hole to be fabricated
• Tank-side accessories (fill neck) and filler hose are not included
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Universal – see Application
