Application: Acura / Honda NSX (1990-2005) – all models and trims, RHD and LHD
Part Type: In-tank fuel pump hanger for Walbro F900 series or brushless pumps – fuel pump not included
Part Number: 20-2792

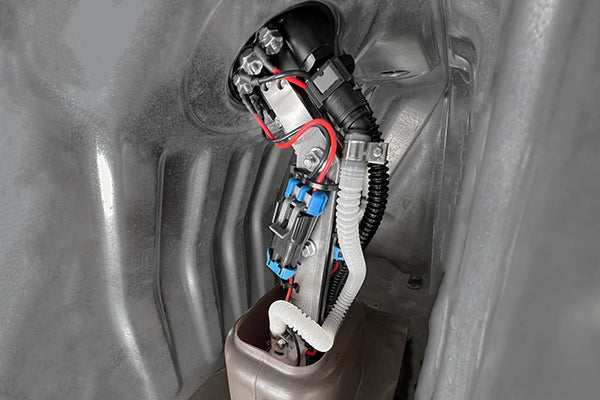

The Radium fuel pump hanger replaces the stock NSX fuel pump assembly with no cutting or modification of sheet metal or the fuel tank. The pump sits in the factory collector bowl for fuel starvation protection, and the fittings are machined low enough to clear the factory sheet metal.

The 20-2792 version suits Walbro F90000267/274/285/295 pumps and a range of brushless pumps. A second (non-brushless) pump can be added with the 20-2797 dual pump add-on, and the 20-2795 connection kit links the hanger to the factory fuel lines.

Key Features

• Drop-In Installation: Replaces the stock pump assembly – no cutting or tank modification
• Starvation Protection: Pump sits in the factory collector bowl
• Fuel Outlet: 8AN ORB (3/4"-16) female on the top plate with preinstalled 6AN male fitting
• Return Inlet: 6AN ORB (9/16"-18) female on the top plate with preinstalled 6AN male fitting
• Brushless Capable: Suits Ti Automotive E5LM, Protec 11928, Fuelab 49614, DeatschWerks DW440 and DW810 brushless pumps
• Dual Pump Option: Add a second Walbro F900 series pump with the 20-2797 add-on
• High-Current Electrical: Anti-rotation stainless studs, hermetically sealed connections, non-conductive anodised acorn nuts, ETFE-insulated wiring
• Fuel Compatibility: Petrol, methanol and E85 compliant

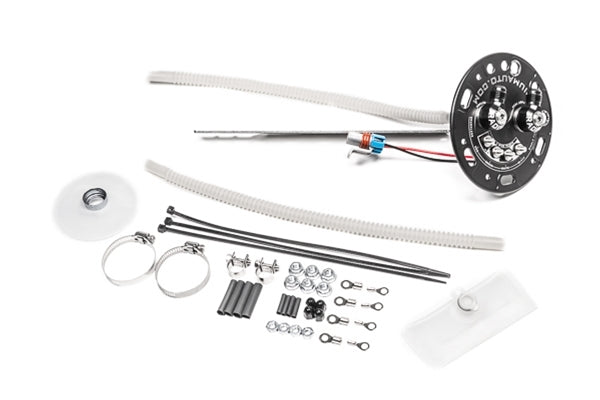

What's Included

• Partially assembled fuel pump hanger
• All hardware to install one pump
• Electrical parts for external wiring at the top hat
• Fuel pump filter sock for Walbro F90000267/274/285/295 and Ti Automotive E5LM pumps (Protec, Fuelab and DeatschWerks pumps use the sock supplied with the pump)

Optional Parts

• Radium Dual Pump Add-On, Acura / Honda NSX (1990-2005) - Walbro F900 (20-2797) – adds a second Walbro F900 series pump (not for brushless pumps)
• Radium Fuel Hanger Connection Kit, Acura / Honda NSX (1990-1995) (20-2795) – connects the hanger to the factory feed and return lines
• Radium DIY Fuel Pump Hard Wiring Kit (17-0031) – wiring kit – one per aftermarket pump

Important Notes

• Fuel pump not included
• Brushless pumps are limited to one pump – the dual pump add-on can't be used because of the extra brushless controller wires
• Walbro F90000295 and Ti Automotive E5LM pumps do not have a check valve
• Upgrading the OEM pump wiring is recommended so pumps receive full power; universal wiring kits are sold separately, one per pump
• When fitting the dual pump add-on, both pumps can't pass through the tank opening together – pump 2 goes in first, then pump 1
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Acura NSX / Honda NSX (1990-2005) – all models and trims, RHD and LHD

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
