Radium Engineering FCST-X Lift Pump Mounts - Universal All Depths

Radium Engineering FCST-X Lift Pump Mounts - Universal All Depths

Application: Radium FCST-X fuel cell surge tanks – extra-deep cells (can be cut to suit)
Part Type: FCST-X lift pump mounts, all depths (extra long)
Part Number: 20-1214

Radium FCST-X lift pump mounts secure the lift pump to the bottom of the fuel cell. The 20-1214 all-depths set is 105mm (4-1/8in) longer than the 20-1213 mid-depth mounts, for deeper fuel cells. Radium's FCST-X instructions call for it on fuel cells deeper than 9in (229mm).

The stainless steel brackets can be cut to suit a specific cell depth with a band saw or cut-off wheel. They're designed for 39mm OD pumps, but other diameters may work thanks to their length. Unlike the shallow and mid sets, the 20-1214 doesn't come standard with any FCST-X.

Key Features

• Extra Length: 105mm (4-1/8in) longer than the 20-1213 mid-depth mounts
• Cut to Length: Trim to a specific cell depth with a band saw or cut-off wheel
• Pump Size: Designed for 39mm OD pumps – other diameters may work
• Construction: Two stainless steel brackets

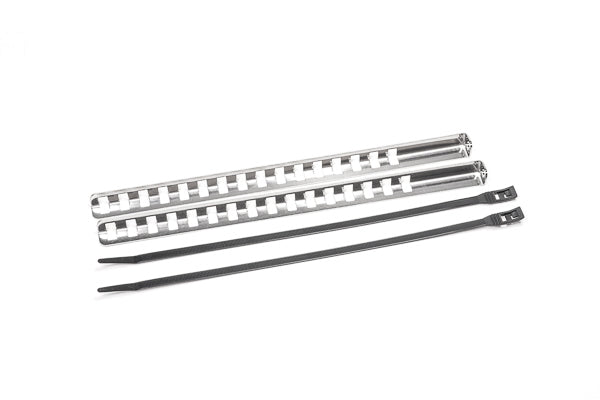

What's Included

• Two stainless steel lift pump brackets
• Two low-profile zip ties

Optional Parts

• Radium FCST-X, Fuel Cell Surge Tank (20-1990-00 / 20-1991-00 / 20-1992-00 / 20-1993-00 / 20-1995-00) – the Radium FCST-X tank these mounts suit
• Radium Engineering FCST-X Lift Pump Mounts - Mid Depth (20-1213) – standard mid-depth set for 39mm pumps
• Radium Engineering FCST-X Lift Pump Mounts - Shallow Depth (20-1212) – standard shallow-depth set for 39mm pumps

Important Notes

• FCST-X only – the discontinued FCST uses the Radium 20-0214 mounts
• Not supplied as standard with any FCST-X
• The extra length may require longer fuel hose and/or wiring
• Cell depth is measured from the underside of the fill plate to the bottom of the lift pump filter sock
• Lift pump is not included

Vehicle Fitment

• Radium FCST-X fuel cell surge tanks – cells deeper than the 290mm (11.4in) mid-depth size, or cut to suit
