Radium Engineering FCST-X Lift Pump Mounts - Shallow/Mid Depth (Bosch BR540/DW400)

Radium Engineering FCST-X Lift Pump Mounts - Shallow/Mid Depth (Bosch BR540/DW400)

Application: Radium FCST-X fuel cell surge tanks – shallow cells
Part Type: FCST-X lift pump mounts, shallow-mid depth, Bosch BR540 or DW400
Part Number: 20-1215

Radium FCST-X lift pump mounts secure the lift pump to the bottom of the fuel cell. The 20-1215 set is sized for shallow cells – 6, 10 and 10.5 gallon (approx. 23, 38 and 40 litre) and spare tyre cells, 196mm (7.7in) internal depth, and is designed for Bosch BR540 or DW400 (46mm OD) lift pumps.

Each set is a pair of stainless steel brackets designed for a particular cell depth, but Radium says they are very forgiving of depth. This set comes standard with the FCST-X 20-1991-00, so it's also sold as a replacement or spare.

Key Features

• Cell Depth: Shallow cells – 6, 10 and 10.5 gallon (approx. 23, 38 and 40 litre) and spare tyre cells, 196mm (7.7in) internal depth
• Pump Size: Designed for Bosch BR540 or DW400 (46mm OD) lift pumps
• Construction: Two stainless steel brackets
• Standard Fitment: Supplied as standard with FCST-X 20-1991-00

What's Included

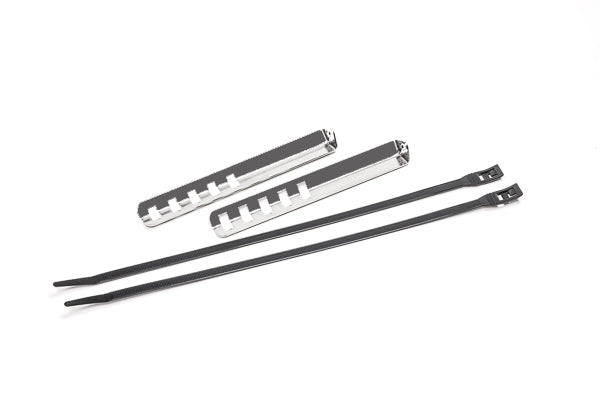

• Two stainless steel lift pump brackets
• Two low-profile zip ties

Optional Parts

• Radium FCST-X, Fuel Cell Surge Tank (20-1990-00 / 20-1991-00 / 20-1992-00 / 20-1993-00 / 20-1995-00) – the Radium FCST-X tank these mounts suit
• Radium Engineering FCST-X Lift Pump Mounts - Mid/Deep Depth (Bosch BR540/DW400) (20-1216) – mid-deep set for Bosch BR540/DW400
• Radium Engineering FCST-X Lift Pump Mounts - Universal All Depths (20-1214) – extra-deep set for deeper cells, cut to length

Important Notes

• FCST-X only – the discontinued FCST uses the Radium 20-0214 mounts
• Cell depth is measured from the underside of the fill plate to the bottom of the lift pump filter sock
• Lift pump is not included

Vehicle Fitment

• Radium FCST-X fuel cell surge tanks – shallow cells – 6, 10 and 10.5 gallon (approx. 23, 38 and 40 litre) and spare tyre cells, 196mm (7.7in) internal depth
