Radium Engineering FCST-X Lift Pump Mounts - Shallow Depth
Tax included. Shipping calculated at checkout
Description
Radium Engineering FCST-X Lift Pump Mounts - Shallow Depth
Application: Radium FCST-X fuel cell surge tanks – shallow cells
Part Type: FCST-X lift pump mounts, shallow depth
Part Number: 20-1212
Radium FCST-X lift pump mounts secure the lift pump to the bottom of the fuel cell. The 20-1212 set is sized for shallow cells – 6, 10 and 10.5 gallon (approx. 23, 38 and 40 litre) and spare tyre cells, 196mm (7.7in) internal depth, and is designed for 39mm OD lift pumps.
Each set is a pair of stainless steel brackets designed for a particular cell depth, but Radium says they are very forgiving of depth. This set comes standard with the FCST-X 20-1990-XX, 20-1992-XX, 20-1993-00 and 20-1995-00, so it's also sold as a replacement or spare.
Key Features
- Cell Depth: Shallow cells – 6, 10 and 10.5 gallon (approx. 23, 38 and 40 litre) and spare tyre cells, 196mm (7.7in) internal depth
- Pump Size: Designed for 39mm OD lift pumps
- Construction: Two stainless steel brackets
- Standard Fitment: Supplied as standard with FCST-X 20-1990-XX, 20-1992-XX, 20-1993-00 and 20-1995-00

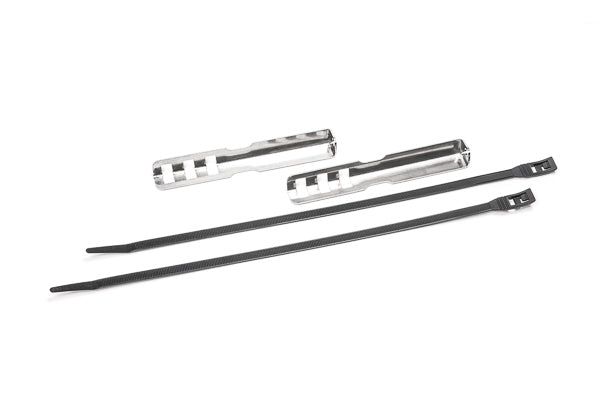

What's Included
- Two stainless steel lift pump brackets
- Two low-profile zip ties
Optional Parts
- Radium FCST-X, Fuel Cell Surge Tank (20-1990-00 / 20-1991-00 / 20-1992-00 / 20-1993-00 / 20-1995-00) – the Radium FCST-X tank these mounts suit
- Radium Engineering FCST-X Lift Pump Mounts - Mid Depth (20-1213) – mid-depth set for 39mm pumps
- Radium Engineering FCST-X Lift Pump Mounts - Universal All Depths (20-1214) – extra-deep set for deeper cells, cut to length
Important Notes
- FCST-X only – the discontinued FCST uses the Radium 20-0214 mounts
- Cell depth is measured from the underside of the fill plate to the bottom of the lift pump filter sock
- Lift pump is not included
Vehicle Fitment
- Radium FCST-X fuel cell surge tanks – shallow cells – 6, 10 and 10.5 gallon (approx. 23, 38 and 40 litre) and spare tyre cells, 196mm (7.7in) internal depth
Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
