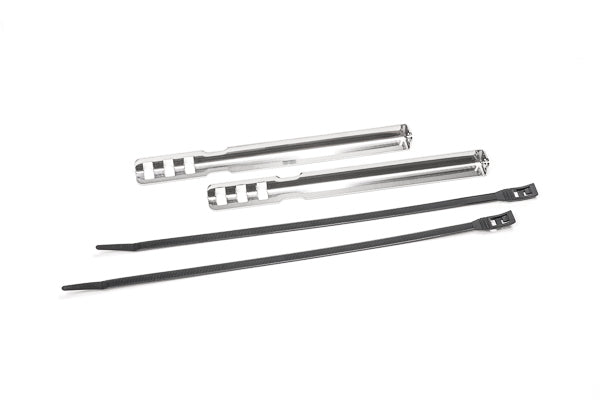

Radium Engineering FCST-X Lift Pump Mounts - Mid Depth

Radium Engineering FCST-X Lift Pump Mounts - Mid Depth

Application: Radium FCST-X fuel cell surge tanks – mid-depth cells
Part Type: FCST-X lift pump mounts, mid depth
Part Number: 20-1213

Radium FCST-X lift pump mounts secure the lift pump to the bottom of the fuel cell. The 20-1213 set is sized for mid-depth cells – 14 and 22 gallon (approx. 53 and 83 litre), 290mm (11.4in) internal depth, and is designed for 39mm OD lift pumps.

Each set is a pair of stainless steel brackets designed for a particular cell depth, but Radium says they are very forgiving of depth. This set comes standard with the FCST-X 20-1990-XX, 20-1992-XX, 20-1993-00 and 20-1995-00, so it's also sold as a replacement or spare.

Key Features

• Cell Depth: Mid-depth cells – 14 and 22 gallon (approx. 53 and 83 litre), 290mm (11.4in) internal depth
• Pump Size: Designed for 39mm OD lift pumps
• Construction: Two stainless steel brackets
• Standard Fitment: Supplied as standard with FCST-X 20-1990-XX, 20-1992-XX, 20-1993-00 and 20-1995-00

What's Included

• Two stainless steel lift pump brackets
• Two low-profile zip ties

Optional Parts

• Radium FCST-X, Fuel Cell Surge Tank (20-1990-00 / 20-1991-00 / 20-1992-00 / 20-1993-00 / 20-1995-00) – the Radium FCST-X tank these mounts suit
• Radium Engineering FCST-X Lift Pump Mounts - Shallow Depth (20-1212) – shallow-depth set for 39mm pumps
• Radium Engineering FCST-X Lift Pump Mounts - Universal All Depths (20-1214) – extra-deep set for deeper cells, cut to length

Important Notes

• FCST-X only – the discontinued FCST uses the Radium 20-0214 mounts
• Cell depth is measured from the underside of the fill plate to the bottom of the lift pump filter sock
• Lift pump is not included

Vehicle Fitment

• Radium FCST-X fuel cell surge tanks – mid-depth cells – 14 and 22 gallon (approx. 53 and 83 litre), 290mm (11.4in) internal depth

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
