Radium Engineering FCST-X 3-Bolt Remote Mount Fill Neck - 24AN Elbow with 1.5" Barb

Radium Engineering FCST-X 3-Bolt Remote Mount Fill Neck - 24AN Elbow with 1.5" Barb

Application: Radium FCST-X fuel cell surge tanks (20-1990-XX, 20-1991-00, 20-1992-XX, 20-1993-00, 20-1995-00)
Part Type: FCST-X 3-bolt remote mount fill neck, 24AN 75° elbow with 1.5in barb
Part Number: 20-1047

A remote fuel filler setup has three parts: the remote filler (housing and cap), the remote fill neck that connects to the FCST or fuel cell, and the filler hose that links them. The 20-1047 is an FCST-X remote fill neck with a 75° elbow for the 1.5in filler hose.

The elbow rotates 360° at the 24AN hose end so it can be clocked in any direction, or it can be removed to attach a 24AN filler hose. It's typically used with a body-mounted remote filler (not included).

Key Features

• FCST-X Specific: 24AN 3-bolt adapter bolts to the FCST-X filler flange
• 75° Elbow: Clocks 360° at the 24AN hose end to point in any direction
• Flexible Plumbing: Remove the elbow to attach a 24AN filler hose
• Hose Size: 1.5in barb for the filler hose
• Seal: FKM O-ring seal with stainless hardware

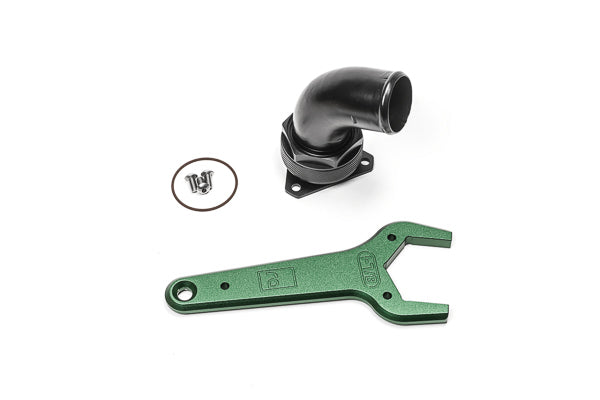

What's Included

• 24AN 3-bolt FCST-X adapter
• 24AN 75° elbow
• 24AN B-nut
• FKM O-ring seal
• Stainless steel hardware

Optional Parts

• Radium Engineering Remote Mount Fuel Filler - 1.5" Vented (20-1005-V) – body-mounted 1.5in remote standard filler
• Radium Engineering Dry Break - 1.5" Female Remote Mount (Vented) (20-1004-V) – body-mounted 1.5in remote dry break
• Radium Fuel Fill Neck Hose Kit - 1.5" ID (20-0597) – 1.5in ID filler hose kit
• Radium Engineering Hose End - 24AN 75° with Wrench (20-1009) – replacement 24AN 75° hose end, B-nut and wrench
• Radium Engineering FCST-X 3-Bolt Remote Mount Fill Neck - Straight with 1.5" Barb (20-1027) – the straight-barb version of this fill neck

Important Notes

• FCST-X only – not compatible with the original 6-bolt FCST
• Remote filler and filler hose are sold separately
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Radium FCST-X fuel cell surge tanks: 20-1990-XX, 20-1991-00, 20-1992-XX, 20-1993-00, 20-1995-00
