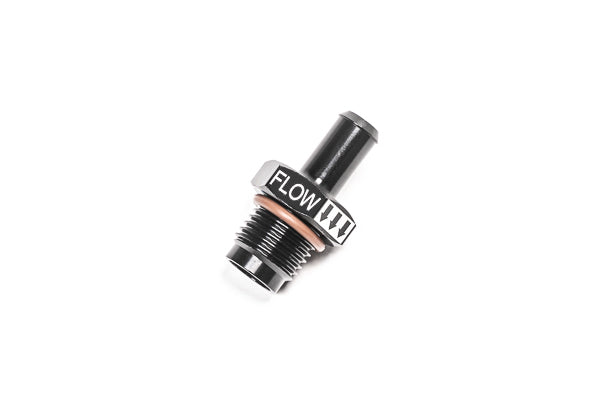

Radium Engineering Check Valve - 6AN ORB to 8.5mm Barb

Radium Engineering Check Valve - 6AN ORB to 8.5mm Barb

Application: Universal – fuel, oil, coolant and water lines
Part Type: One-way check valve, 6AN ORB to 8.5mm barb
Part Number: 20-1533

A one-way check valve permits flow in one direction only. The Radium 20-1533 threads into a 6AN ORB port and provides an 8.5mm barb outlet, with the flow direction laser etched on the hex.

Inside is a spring-loaded stainless steel plunger with an aerodynamic shape for smooth, laminar flow, sealed with FKM and housed in a lightweight anodised aluminium body. The threaded section is extended 3.4mm compared with a standard 6AN ORB fitting to give the internal valve clearance. Suitable for petrol, ethanol, methanol, diesel, water, coolant, oil and similar fluids.

Key Features

• One-Way Flow: Spring-loaded piston valve permits flow in one direction only
• Port Thread: 6AN ORB (9/16"-18) with FKM O-ring seal
• Barb Outlet: 8.5mm barb
• Flow Direction Marked: Direction of flow is laser etched on the hex
• Low Cracking Pressure: Opens at just 0.3 psi
• High Holding Pressure: 1000+ psi maximum operating and backflow holding pressure
• Laminar Flow Plunger: Aerodynamically shaped stainless steel plunger
• Fluid Compatibility: Petrol, ethanol, methanol, diesel, water, coolant and oil

What's Included

• Check valve, 6AN ORB to 8.5mm barb

Important Notes

• Flow is one direction only – check the etched arrow on the hex before installing
• The threaded section is 3.4mm longer than a standard 6AN ORB fitting to clear the internal valve
• Radium specifies the 20-1533 on several of its fuel hangers for pumps without an internal check valve (for example AEM 50-1230/50-1235 pumps in the FD RX-7 fuel hanger surge tank)

Vehicle Fitment

• Universal – see Application

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.

Installation

We always recommend professional fitment for guaranteed satisfaction. If you're wanting a hassle-free installation, feel free to contact our friendly team as we offer installation services in-store at our Melbourne workshop. For more details, contact us here.

Note

Upon receiving the item, please ensure that the part is indeed the correct item you have ordered. This can be achieved by checking labels on the packaging. Please also ensure a proper test fit of the item is conducted prior to paint and/or installation. Returns/Warranty claims will be voided if the item has been tampered with, or is no longer in resalable/new condition.
