Radium Engineering 20-1103 Remote Mount Swing Valve Filler - 1.5in Elbow

Radium Engineering 20-1103 Remote Mount Swing Valve Filler - 1.5in Elbow

Application: Universal – remote-mount fuel filler for fuel cells and surge tanks
Part Type: Remote mount fuel filler – swing valve, 1.5in 24AN elbow
Part Number: 20-1103

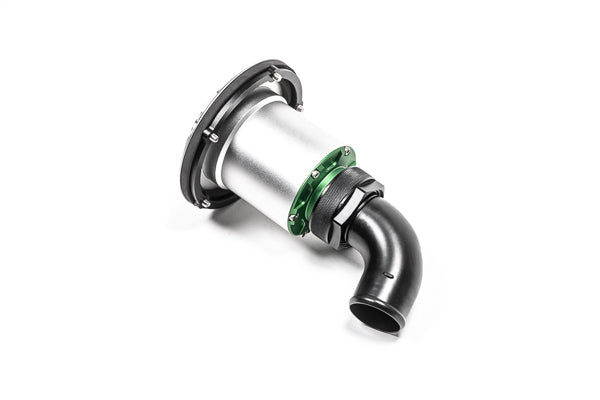

A remote mount fuel filler sits away from the fuel cell or tank – usually on a body panel – and connects to the fill neck via filler hose. The Radium Engineering 20-1103 uses an OEM-style capless swing valve, so there is no cap to unscrew when refuelling, with a 75° 24AN elbow outlet for 1.5in filler hose.

The 30mm filler opening is large enough for both petrol and diesel nozzles, the swing valve seals with an FKM O-ring, and a press-fit dust cap is tethered to the flange. The filler can later be upgraded to a dry break with the Radium 20-0549-V.

Key Features

• Capless Swing Valve: OEM-style design – no unscrewing required to refuel
• 30mm Opening: Large enough for petrol and diesel nozzles
• 24AN Elbow Outlet: 1.5in, 75° 24AN elbow for 1.5in filler hose
• Tethered Dust Cap: Press-fit dust cap tethered to the flange

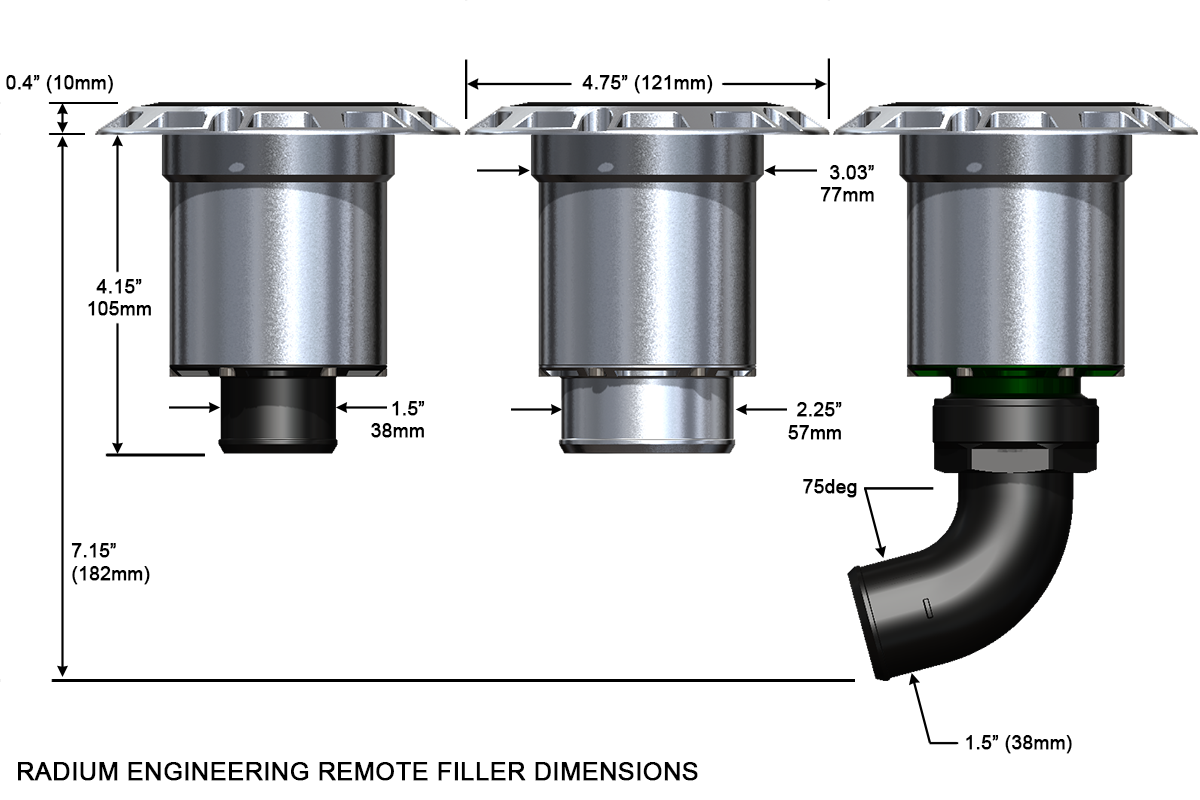

• Flush Remote Mount: 120.7mm (4.75in) flange with five M5 bolts on a 108mm (4.25in) PCD; requires a 77mm (3.03in) mounting hole
• Interchangeable Caps: All Radium remote filler cap styles share the same threads and are interchangeable
• Swappable Outlet: The outlet adapter can be changed by removing six screws (adapters sold separately)
• Fuel Compatibility: Leaded/unleaded petrol, diesel, AV gas, methanol, ethanol, E15 and E85

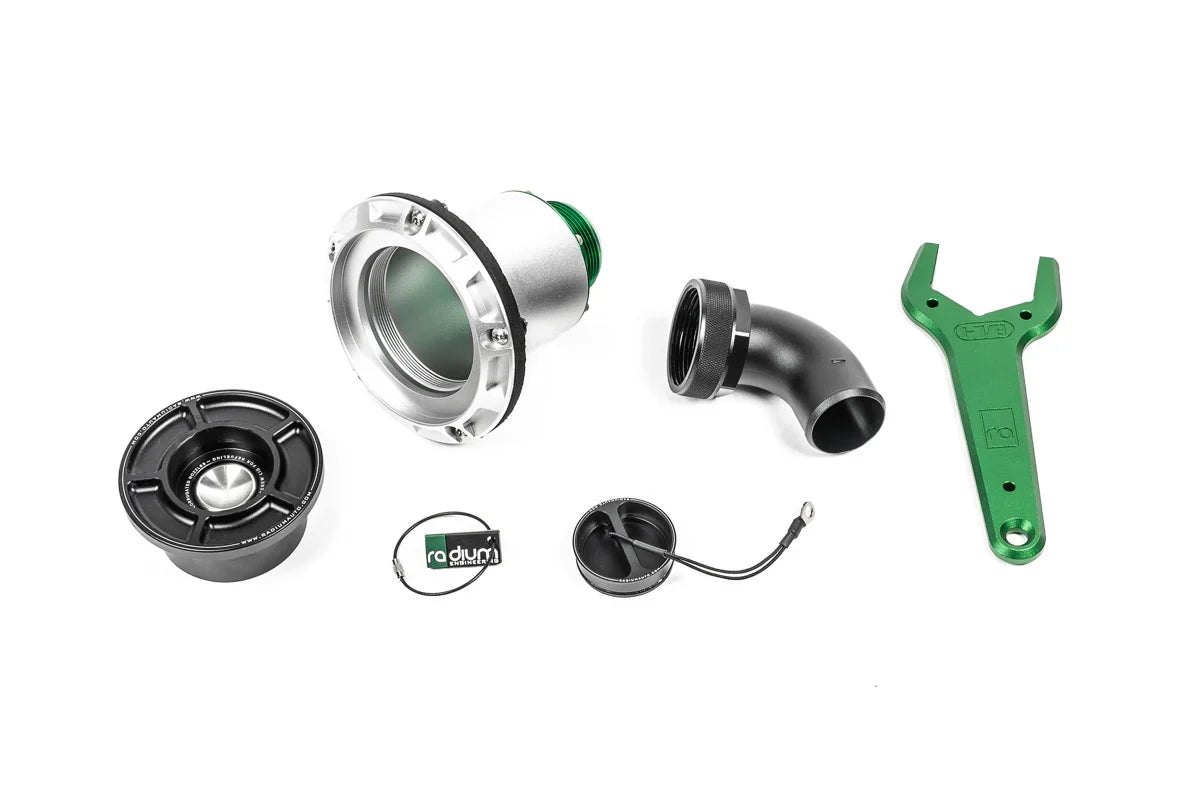

What's Included

• Swing valve cap
• Flanged fill neck
• Ozone/flame-resistant gasket (FKM compatible)
• Anodised aluminium nut ring
• Stainless steel M5 bolts
• Tether components
• 24AN B-nut
• 24AN elbow
• 1-7/8in aluminium wrench

Optional Parts

• Radium Remote Mount, SVF, Swing Valve Filler, Cap (20-1548) – replacement swing valve cap
• Radium Dry Break, 1.5In, Female, Vented (20-0549-V) – upgrades the filler to a 1.5in dry break
• Radium Engineering FCST-X 3-Bolt Remote Mount Fill Neck - 24AN Elbow with 1.5" Barb (20-1047) – tank-side fill neck for FCST-X surge tanks
• Radium Engineering FCST-X 3-Bolt Remote Mount Fill Neck - Straight with 1.5" Barb (20-1027) – straight tank-side fill neck for FCST-X surge tanks
• Radium Fuel Fill Neck Hose Kit - 1.5" ID (20-0597) – black reinforced 1.5in filler hose
• Radium Fuel Fill Neck Hose Kit, 1.5in, Clear (20-0602) – clear unreinforced 1.5in filler hose

Important Notes

• Tank-side components (fill neck and filler hose) are not included
• Radium 20-1027 and 20-1047 fill necks suit FCST-X surge tanks only; older 6-bolt FCST units use the 20-0527 fill neck
• Black 20-0597 filler hose is reinforced; clear 20-0602 hose is unreinforced, kinks easily when bent and can cloud with some fuels – inspect and replace as needed
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Universal – see Application
