Radium Electrical Bulkhead Stud Kit, 6 Pack
Tax included. Shipping calculated at checkout
Description
Radium Electrical Bulkhead Stud Kit, 6 Pack
Application: Universal – legacy Radium fuel pump hangers and surge tanks without anti-rotation studs, and custom installations
Part Type: Electrical bulkhead stud kit, 6 pack
Part Number: 17-0048
The Radium 17-0048 kit contains six hermetically sealed electrical bulkhead studs for passing high current through a wall or panel – only a drilled hole is required. Each conductive stud is CNC machined from 304 stainless steel, and an insulating sleeve prevents panel conduction and galvanic corrosion.

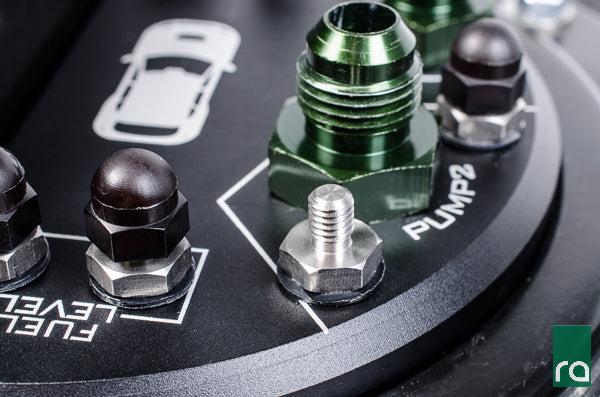

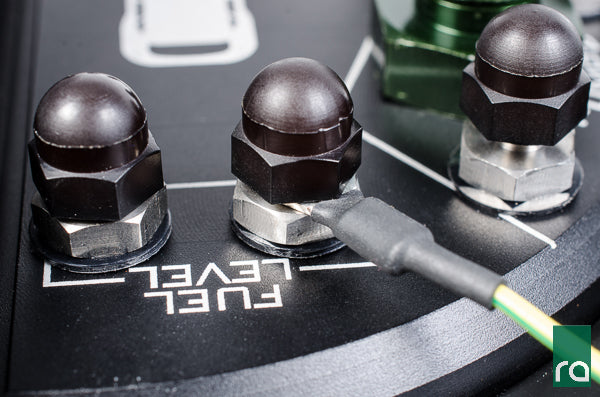

The anodised aluminium acorn nut and heat shrink insulate exposed areas against accidental shorts. The studs suit legacy Radium fuel pump hangers and surge tanks that don't have the latest anti-rotation studs, and can be used in custom installations.
Key Features
- Hermetically Sealed: Passes high current through a panel with only a drilled hole required
- 304 Stainless Steel: CNC-machined conductive studs
- Insulating Sleeve: Prevents panel conduction and galvanic corrosion
- 30A Rating: Rated to 30A per stud
- Short Protection: Anodised aluminium acorn nut and heat shrink insulate exposed areas
- All Fuels: Compatible with petrol, diesel, ethanol, methanol, E85 and other fuel types

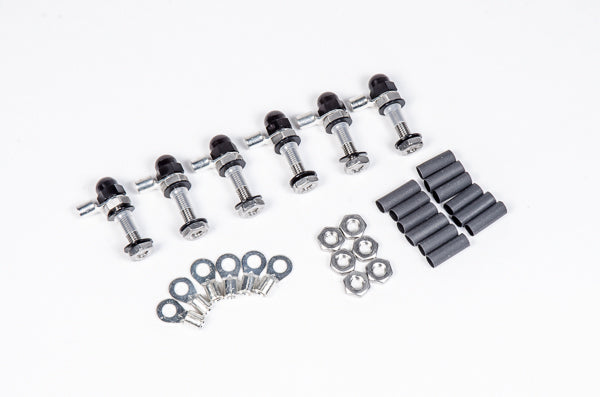

What's Included
- 6x electrical studs
- 12x locking hex nuts
- 6x anodised aluminium acorn nuts
- 6x upper insulators
- 6x lower insulating washers
- 12x ring terminals (10–12 AWG)
- 6x black heat shrink sleeves
Important Notes
- Drilled hole diameter must be 5.59–5.94mm (0.220–0.234in) – use a 15/64" drill bit
- Material thickness must be 6.65–8.18mm (0.262–0.322in)
- Each stud uses two top locking nuts
Vehicle Fitment
- Legacy Radium fuel pump hangers and surge tanks without the latest anti-rotation studs
- Universal – custom fuel cell, tank and panel installations
Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
