Application: 1990-1993 Acura Integra; 1988-1991 Honda Civic and CR-X
Part Type: Dual fuel pump add-on kit (Walbro F90000267/274/285)
Part Number: 20-1797

The Radium 20-1797 dual pump add-on installs a second Walbro F90000267/274/285 brushed pump in the Radium 20-1792 fuel pump hanger for the 1990-1993 Acura Integra / 1988-1991 Honda Civic and CR-X. The 20-1792 hanger is required to use this add-on.

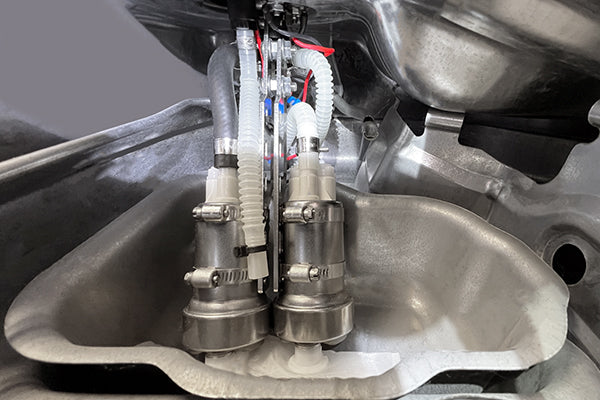

An electrical plug and an SAE quick connector remove the need for tedious assembly before the pumps go into the tank, and both pumps merge into the single 8AN ORB outlet of the fuel hat. The tank opening is small, so the two pumps cannot pass through at the same time.

Key Features

• Second Pump: Adds a second brushed pump to the 20-1792 hanger
• Plug-In Connections: Electrical plug and SAE quick connector for easier installation
• Single Outlet: Both pumps merge into the hanger's single 8AN ORB outlet
• Staging: Pump staging is permitted with pumps that have integrated check valves

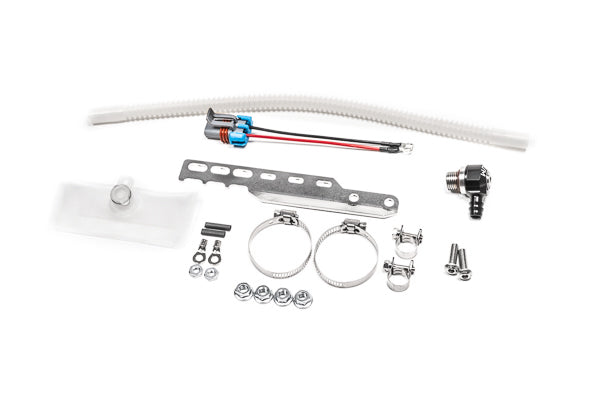

What's Included

• Stainless steel second pump (PUMP2) bracket and screws
• PUMP2 wire connector with red and black leads
• SAE quick connect fitting, convoluted tubing, EFI clamp and cable ties

Optional Parts

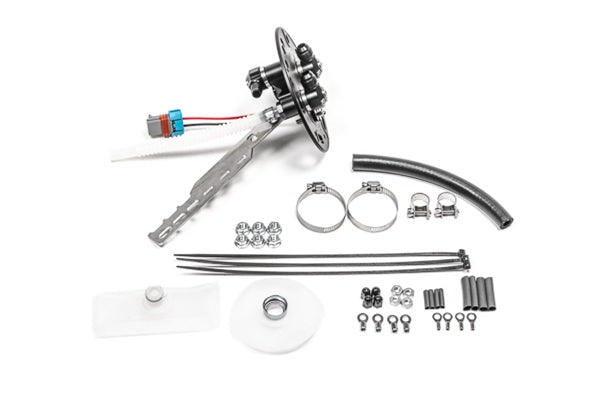

• Radium Fuel Pump Hanger, Acura Integra (1990-1993) / Honda Civic CR-X (1988-1991) - Walbro F900 (20-1792) – required base hanger
• Radium DIY Fuel Pump Hard Wiring Kit (17-0031) – one per aftermarket pump, with an independent relay and fuse, so each pump gets full current

Important Notes

• Requires the 20-1792 fuel pump hanger

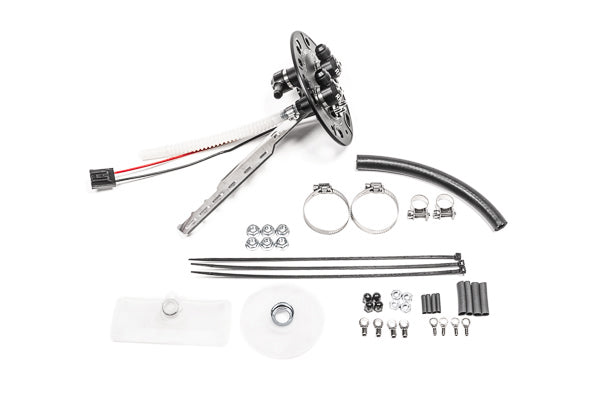

• Radium's 20-1797 text says it needs the 20-1790 hanger, but its 20-1792 section lists 20-1797 as that hanger's add-on and the compatible pumps match 20-1792 – confirm with Coore before ordering
• Compatible pumps: Walbro F90000267, F90000274, F90000285 and F90000295
• Not compatible with brushless pumps – a brushless pump limits the hanger to one pump
• Walbro F90000295 has no integrated check valve
• Dual pump installation is awkward in this tank because of the angle of insertion, the tall collector bowl and the shallow tank
• Dual pump installations must use an independent relay and fuse – pump(s) are not included
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Acura Integra 1990-1993 – all models and trims, LHD and RHD
• Honda Civic 1988-1991 – all models and trims, LHD and RHD
• Honda CR-X 1988-1991 – all models and trims, LHD and RHD

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
