Radium Engineering Dual Fuel Pump Hanger Add-On for Honda Civic EG / EK / Integra DC2

Radium Dual Fuel Pump Hanger Add-On, Honda Civic EG / EK / Integra DC2

Application: Honda Civic (1992–2000) and Integra (1994–2001) with Radium 20-0790-00 / 20-0792-00 hanger
Part Type: Dual fuel pump add-on
Part Number: 20-0796-00, 20-0797-00

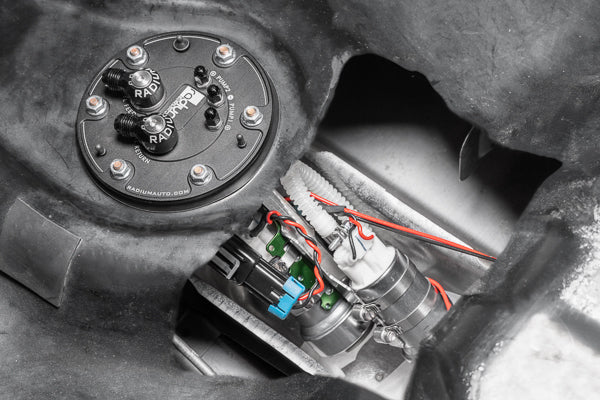

The Radium Dual Pump Add-On adds a second fuel pump to the Radium Civic/Integra fuel pump hanger. Two Walbro 39/50 DCSS pumps can't sit side by side in the Honda tank's collector bowl, so the add-on installs the pumps inline: the rear pump goes in first, held back by the supplied tool while the front pump is inserted.

An electrical plug and SAE quick connect make assembly in the tank straightforward, both pumps merge into the hanger's single 8AN ORB outlet, and integrated check valves allow the pumps to be staged.

Key Features

• Inline Dual Pump: Overcomes the Honda tank and collector bowl constraints
• Installation Tool: Holds the rear pump back while the front pump is inserted
• Quick Assembly: Electrical plug and SAE quick connect
• Merged Outlet: Both pumps feed the hanger's single 8AN ORB outlet
• Pump Staging: Integrated check valves permit staging

Available Configurations

• 20-0796-00: For 20-0790-00 hanger – AEM 50-1000, AEM 50-1200 or Walbro GSS342
• 20-0797-00: For 20-0792-00 hanger – Walbro F90000267, F90000274 or F90000285

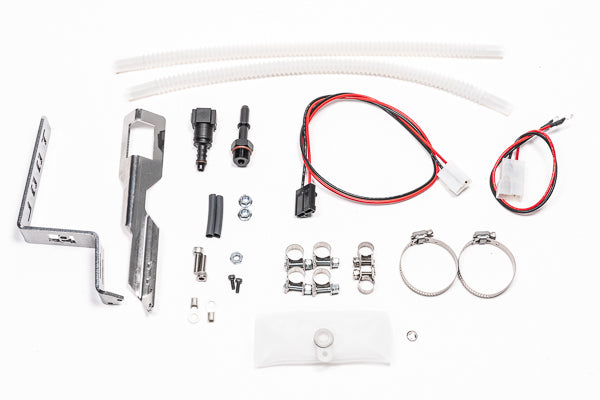

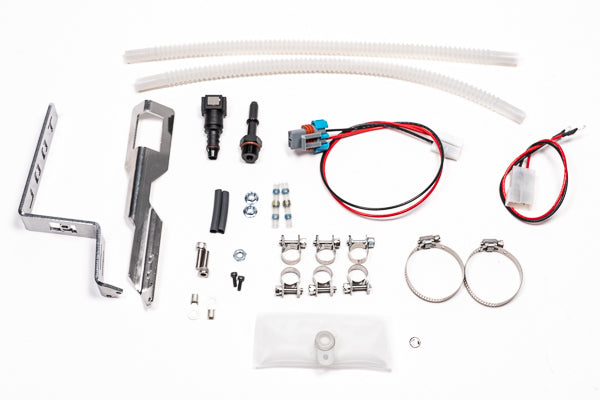

What's Included

• Everything needed to add a second pump to the Radium hanger
• Rear pump installation tool
• Electrical plug
• SAE quick connect

Optional Parts

• Radium Fuel Pump Hanger, Honda Civic EG / EK / Integra DC2 (1992-2001) (20-0790-00 / 20-0792-00) – required fuel pump hanger
• Radium Adjustable Pressure Switch (20-0236) – optional pressure switch for staging the second pump

Important Notes

• Fuel pumps not included
• Requires the Radium 20-0790-00 (for 20-0796-00) or 20-0792-00 (for 20-0797-00) fuel pump hanger
• Pumps without a check valve (AEM 50-1230 / 50-1235, Walbro F90000295) are not listed by Radium for the add-on – the external check valves can't be used on the second pump
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Honda Civic (1992–2000) (with Radium 20-0790-00 / 20-0792-00 hanger) – all models and trims, LHD and RHD
• Honda / Acura Integra (1994–2001) (with Radium 20-0790-00 / 20-0792-00 hanger) – all models and trims, LHD and RHD
