Radium Engineering Dual Fluid Lock Catch Can Kit for Mitsubishi Evo X

Radium Dual Fluid Lock Catch Can Kit, Mitsubishi Evo X

Application: Mitsubishi Lancer Evolution X (2008-2016)
Part Type: Dual Fluid Lock oil catch can kit (PCV + CCV)
Part Number: 20-1107-FL

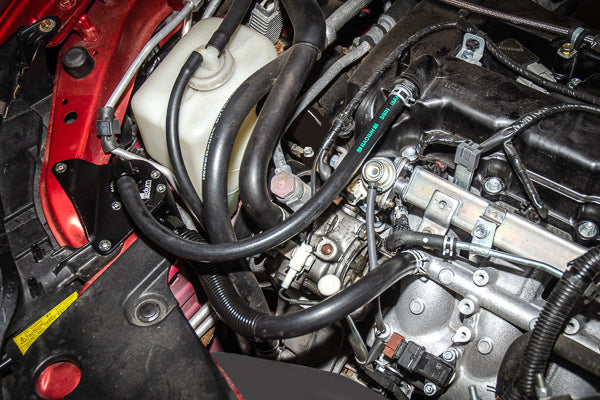

The Radium Dual Catch Can Kit combines the Evo X PCV kit (20-0105-FL) and CCV kit (20-1106-FL). The PCV can mounts behind the RH headlight in-line with the PCV hose, while the CCV can mounts behind the LH headlight in-line with the hose from the valve cover port to the turbo intake pipe. A Radium catch can removes oil and water condensation from crankcase gases before they reach the intake, preventing oil build-up in the intake, intercooler, throttle body and intake manifold. Cleaner inlet air can raise effective octane and improve performance while lowering hydrocarbon emissions, and the closed system keeps oil vapour out of the cabin.

Radium redesigned its 7 fl oz catch can in 2022 with the patented Fluid Lock system, which stops the reservoir from overfilling and traps collected fluid until the can is emptied.

Key Features

• PCV and CCV Coverage: Catch cans for both crankcase ventilation circuits
• Patented Fluid Lock: Prevents overfilling and holds collected fluid until emptied
• Direct Fit: No drilling required
• 10AN ORB Ports: Inlet and outlet
• 4AN ORB Drain Port: Optional petcock drain kit available where space allows
• Two-Step Baffling: Two-stage oil separation
• O-ring Sealed Dipstick: Check the fluid level easily
• Capacity: 207 ml (7 fl oz)

What's Included

• PCV catch can kit (20-0105-FL): billet catch can with integrated condenser and dipstick, laser-cut powder-coated RH bracket
• CCV catch can kit (20-1106-FL): billet catch can with integrated condenser and dipstick, laser-cut powder-coated LH bracket
• 6AN and 8AN aluminium hose ends and adapter fittings
• 3/8in and 1/2in PCV hose for custom runs
• Stainless steel mounting hardware

Optional Parts

• Radium Alternate Mount For Crankcase Catch Can Kit - Mitsubishi Evo X (20-0300) – Only needed if the CCV can interferes with other parts such as an aftermarket intake

Important Notes

• The PCV kit is a closed system that requires a vacuum signal from the intake to open the PCV valve
• The PCV can is pressure-sealed and may connect to the intake manifold on boosted applications without a check valve
• Some European models with headlamp washer reservoirs have interference with the PCV can
• CCV kit is compatible with all Evo X models and years, including metal and plastic valve cover variants
• Emptying interval varies by vehicle – check the dipstick from 3-4 weeks and adjust from there; PCV cans typically collect more than CCV cans
• Excessive oil collection can indicate an engine issue such as excessive blow-by, overfilled oil, poor breather port placement or baffling, or a PCV valve sticking open under load
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Mitsubishi Lancer Evolution X (2008-2016)

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.
