Radium Dual Fluid Lock Catch Can Kit, Chevrolet Corvette C7 LT1 Dry Sump (2017-2019)

Radium Dual Fluid Lock Catch Can Kit, Chevrolet Corvette C7 LT1 Dry Sump (2017-2019)

Application: Chevrolet Corvette C7 (2017-2019) – LT1 dry sump only
Part Type: Dual (PCV + CCV) Fluid Lock oil catch can kit
Part Number: 20-1286-FL

The Radium 20-1286-FL Dual Catch Can Kit is designed specifically for the 2017-2019 Corvette C7 with the LT1 dry sump engine. It includes a PCV catch can and a CCV catch can for the ultimate in engine protection.

Both cans mount in a single bracket – the PCV can at the rear and the CCV can at the front – on a grounding block. The kit replaces the OEM PCV line and the CCV tubing from the dry sump tank to the intake, while the front valve cover crankcase tubing is left unaltered. A catch can separates oil and water condensation from the crankcase gases before they reach the intake, helping to keep oil out of the intake tract, intercooler, throttle body and intake manifold. Cleaner inlet air can improve performance and lower hydrocarbon emissions, and the closed system keeps oil vapour out of the cabin.

Each can uses Radium's Fluid Lock design, introduced in 2022: a patented mechanism stops the reservoir from overfilling and traps the collected fluid until it is emptied, so contaminants can't be drawn back into the intake if servicing is missed.

Key Features

• Dry Sump Specific: Designed for the 2017-2019 LT1 dry sump layout
• PCV + CCV: One PCV can and one CCV can in a single bracket
• Fluid Lock: Patented Fluid Lock system stops the reservoir overfilling and traps collected fluid until the can is emptied
• Large Ports: 10AN ORB inlet and outlet ports
• Drain Port: 4AN ORB drain port
• 2-Step Baffling: Two-step oil separation baffling
• Dipstick: O-ring sealed dipstick to check the fluid level
• Capacity: 207ml (7 fl oz) reservoir
• Direct Fitment: Vehicle-specific bracket, no drilling required

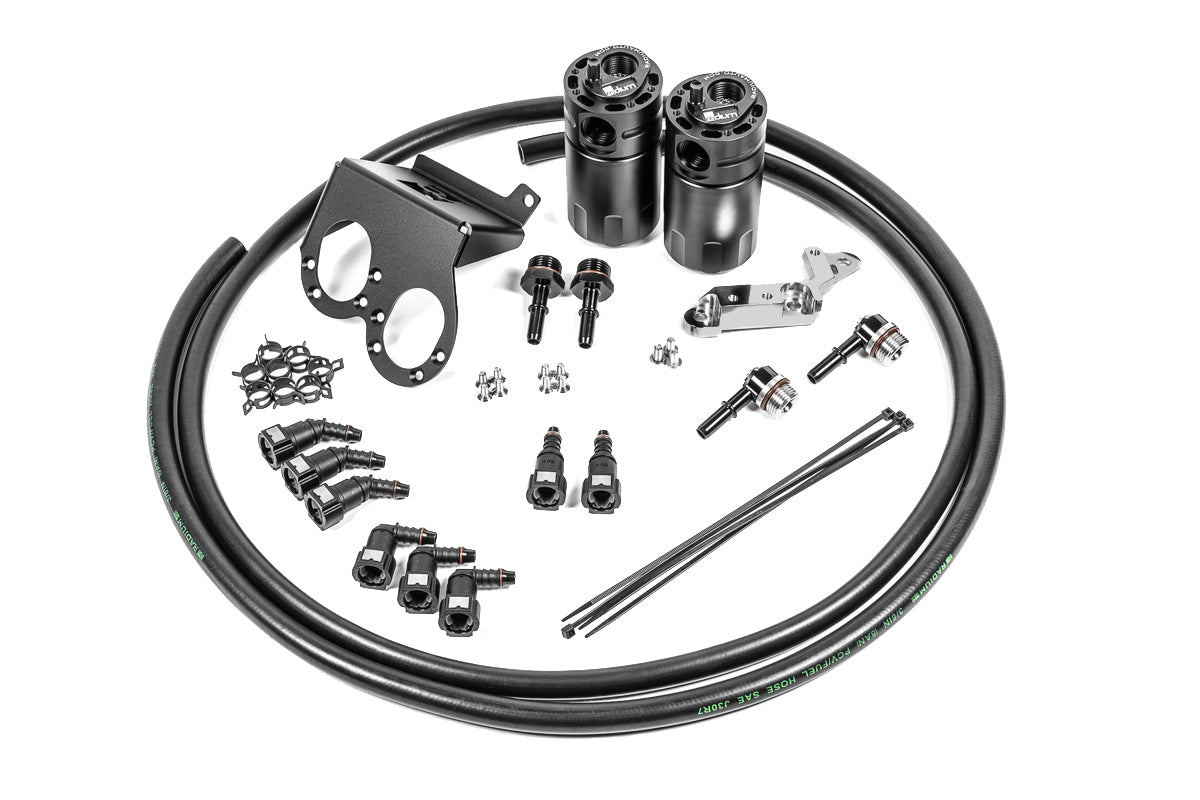

What's Included

• Baffled oil catch cans with integrated condenser and dipstick (x2)
• Anodised aluminium mounting bracket
• Polished billet aluminium ground plate
• SAE quick connect fittings
• Stainless steel mounting hardware
• 3/8in PCV rubber hose
• Spring clamps

Optional Parts

• Radium Catch Can Petcock Drain Kit (20-0024) – drain the can without removing the lower reservoir, where there is space under the can

Important Notes

• 2017-2019 LT1 dry sump only – wet sump cars and 2014-2016 dry sump cars use the 20-0985-FL / 20-0986-FL / 20-0987-FL kits
• Cars with Magnetic Ride Control need a wiring harness stay pried up/removed during installation
• There is no fixed emptying interval – start checking the integrated dipstick after 3–4 weeks of driving and adjust from there; PCV cans generally collect more than CCV cans
• Empty by unscrewing the lower reservoir, or fit the optional petcock drain kit where there is space under the can
• Excessive collection can point to an engine issue such as blow-by from engine damage, crankcase windage from an overfilled oil level, poor breather port placement or baffling, or a PCV valve leaking under heavy load
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Chevrolet Corvette C7 (2017-2019) – LT1 dry sump

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
