Radium Engineering Dual Fluid Lock Catch Can Kit for Cadillac CTS-V 2009-2015

Radium Dual Fluid Lock Catch Can Kit, Cadillac CTS-V (2009-2015)

Application: Cadillac CTS-V (2009-2015) – LSA supercharged V8
Part Type: Dual (PCV + CCV) Fluid Lock oil catch can kit
Part Number: 20-1564-FL

The Radium 20-1564-FL Dual Catch Can Kit is Radium's recommended option for the ultimate in engine protection on the 2009-2015 Cadillac CTS-V. It combines the 20-1562-FL PCV kit and the 20-0563-FL CCV kit in a single part number, so both sides of the LSA crankcase ventilation system are covered.

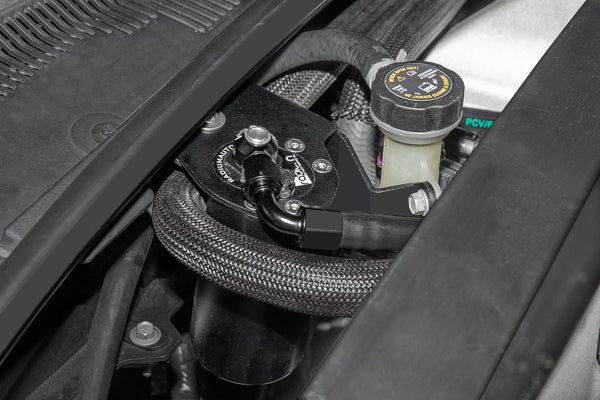

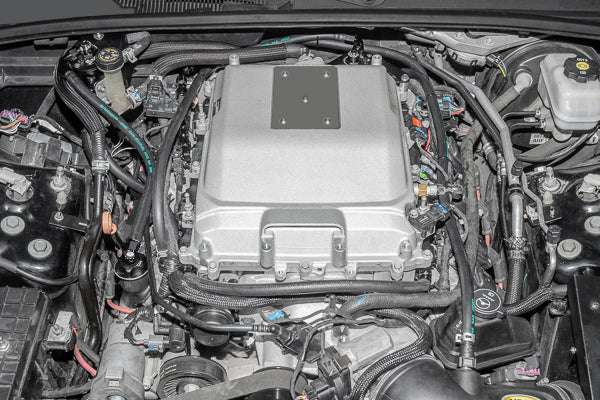

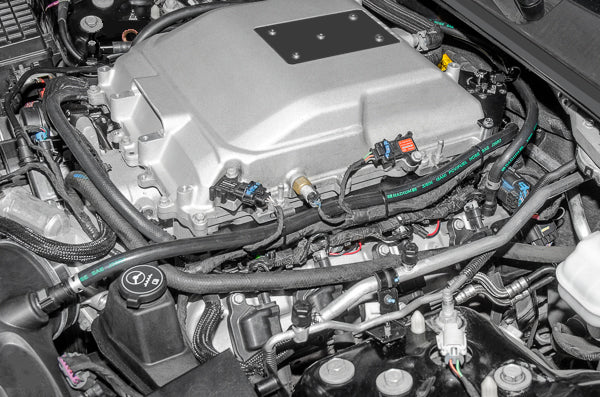

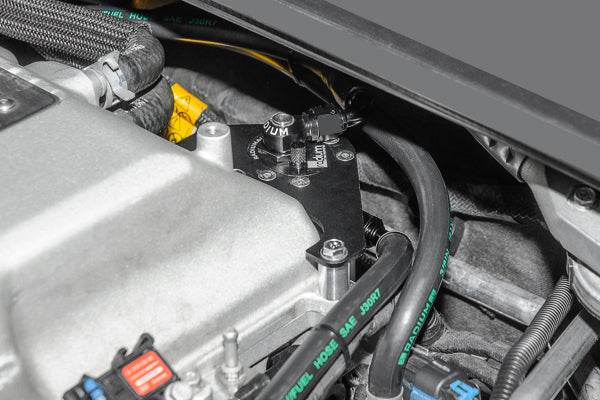

The PCV can mounts inline between the PCV valve and the intake manifold on a bracket that replaces the OEM intercooler coolant filler bracket, and a baffled oil cap is supplied to replace the restrictive 2.5mm OEM fixed orifice. The CCV can mounts to three OEM threaded bosses at the rear of the supercharger housing, inline between the CCV ports and the intake pipe, catching the oil carried out of the crankcase at high load. A catch can separates oil and water condensation from the crankcase gases before they reach the intake, helping to keep oil out of the intake tract, intercooler, throttle body and intake manifold. Cleaner inlet air can improve performance and lower hydrocarbon emissions, and the closed system keeps oil vapour out of the cabin.

Each can uses Radium's Fluid Lock design, introduced in 2022: a patented mechanism stops the reservoir from overfilling and traps the collected fluid until it is emptied, so contaminants can't be drawn back into the intake if servicing is missed.

Key Features

• Complete Coverage: PCV and CCV catch cans in one kit
• Fluid Lock: Patented Fluid Lock system stops the reservoir overfilling and traps collected fluid until the can is emptied
• Large Ports: 10AN ORB inlet and outlet ports
• Drain Port: 4AN ORB drain port
• 2-Step Baffling: Two-step oil separation baffling
• Dipstick: O-ring sealed dipstick to check the fluid level
• Capacity: 207ml (7 fl oz) reservoir
• Direct Fitment: Vehicle-specific bracket, no drilling required
• Pressure Sealed: No additional inline check valve required

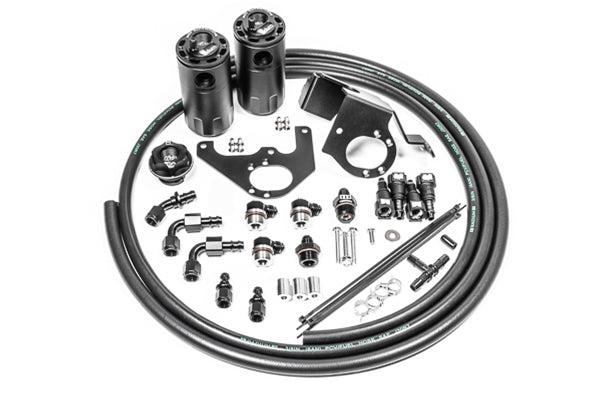

What's Included

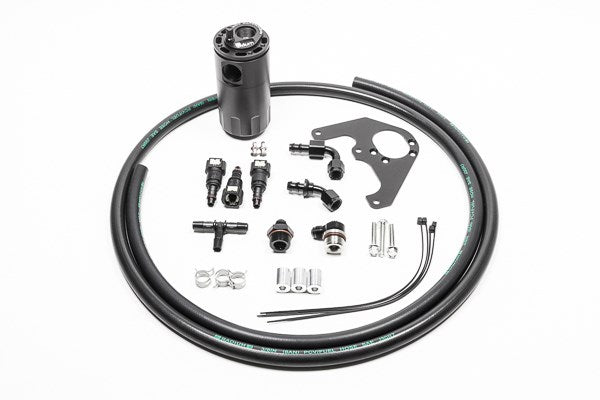

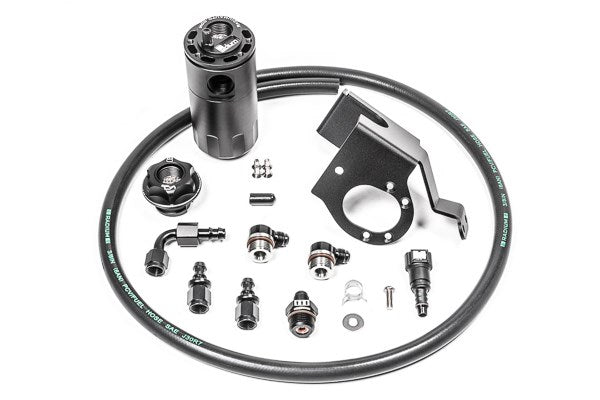

• Everything from the 20-1562-FL PCV kit and the 20-0563-FL CCV kit
• Baffled Fluid Lock catch cans with integrated dipstick (x2)
• Baffled oil cap and O-ring sealed aluminium PCV valve
• CTS-V mounting brackets (PCV bracket replaces the intercooler coolant filler bracket)
• AN adapter fittings and hose ends
• Radium PCV hose
• Stainless steel hardware

Optional Parts

• Radium Catch Can Petcock Drain Kit (20-0024) – drain the can without removing the lower reservoir, where there is space under the can

Important Notes

• Also available separately as the 20-1562-FL PCV kit and 20-0563-FL CCV kit
• The CCV kit alone does not address blow-by from the PCV side – this dual kit covers both
• There is no fixed emptying interval – start checking the integrated dipstick after 3–4 weeks of driving and adjust from there; PCV cans generally collect more than CCV cans
• Empty by unscrewing the lower reservoir, or fit the optional petcock drain kit where there is space under the can
• Excessive collection can point to an engine issue such as blow-by from engine damage, crankcase windage from an overfilled oil level, poor breather port placement or baffling, or a PCV valve leaking under heavy load
• Installation instructions are available in the Instructions tab

Vehicle Fitment

• Cadillac CTS-V (2009-2015) – LSA supercharged V8

If you're unsure whether this will fit your vehicle, contact our team of experts via email at hello@iilumolab.com and send through a few photos of the car for us to verify fitment.
