Radium DIY Universal PTFE Hose Kits

Radium DIY Universal PTFE Hose Kits

Application: Universal – fuel, oil, transmission fluid, power steering fluid, coolant and more
Part Type: DIY braided PTFE hose kit (hose + swivelling hose ends)
Part Number: 20-1206, 20-1208, 20-1210

PTFE is the gold standard for chemically inert hose material. Radium DIY PTFE hose kits use a carbon-lined PTFE core that is conductive and anti-static, dissipating the static charge that can build up in high-flow fuel systems, and PTFE has virtually zero permeation – it will not emit fuel vapours the way rubber hose can.

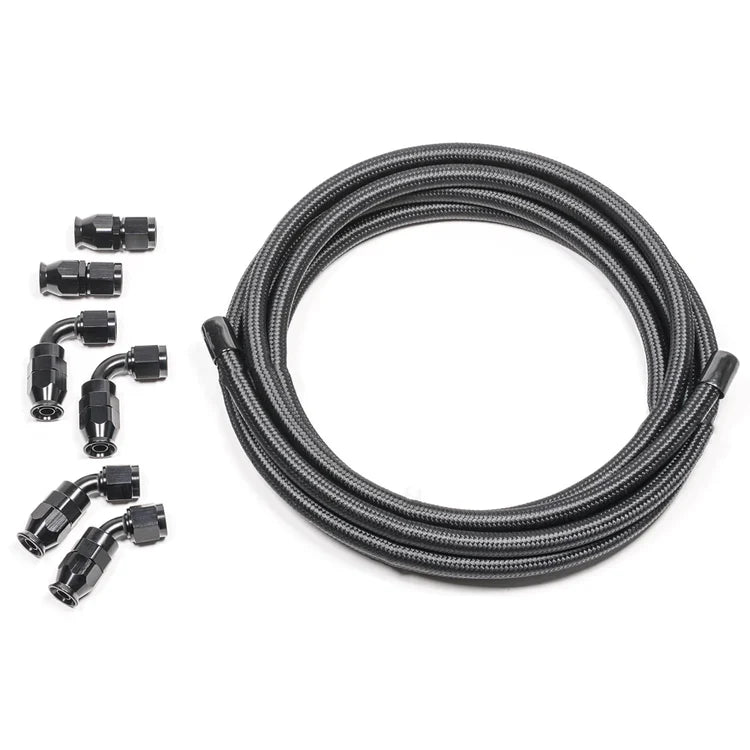

Each kit includes 4.5m (14.75ft) of black braided PTFE hose and six black anodised swivelling aluminium hose ends – two straight, two 45° and two 90° – to build your own custom lines for fuel, oil, transmission, power steering, coolant and more.

Key Features

• Carbon-Lined Core: Conductive, anti-static core dissipates static charge
• Pressure Rating: Pressure tested to 1200 psi in-house; generally rated to over 2500 psi
• Temperature Rating: -70°C to 249°C (-94°F to 480°F)

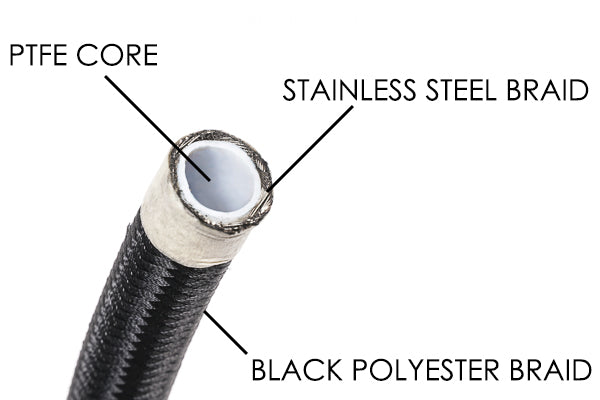

• Construction: Seamless extruded PTFE core, stainless steel wire braid and PET braided outer jacket

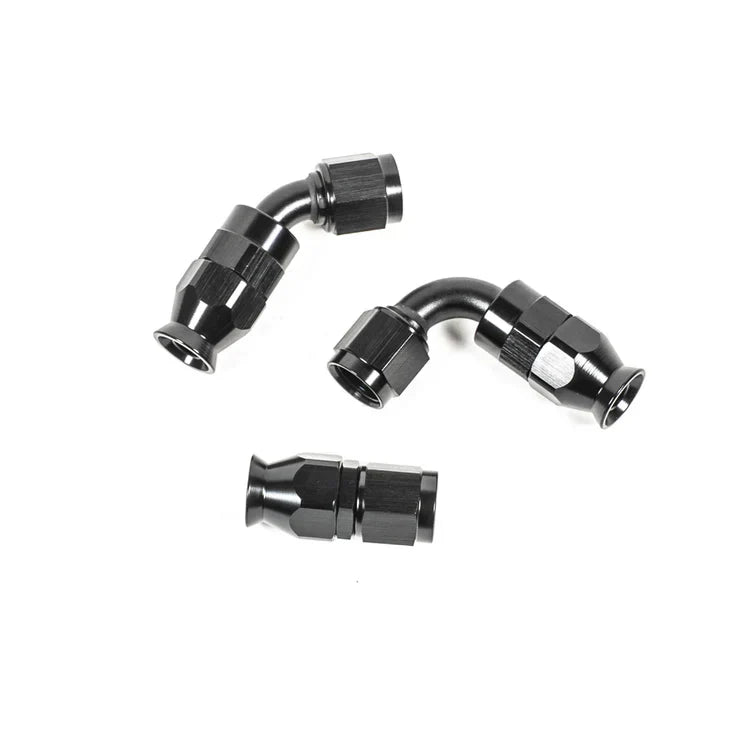

• Hose Ends: Type-II black anodised aluminium swivelling hose ends
• Low Permeation: PTFE has virtually zero permeation – no fuel vapour smell

Available Configurations

• 20-1206: 6AN – 8.4mm (0.33in) ID, 12.7mm (0.50in) OD
• 20-1208: 8AN – 10.7mm (0.42in) ID, 15.2mm (0.60in) OD
• 20-1210: 10AN – 13.0mm (0.51in) ID, 17.8mm (0.70in) OD

What's Included

• Black braided PTFE hose, 4.5m (14.75ft)
• Black PTFE hose end, straight (x2)
• Black PTFE hose end, 45° (x2)
• Black PTFE hose end, 90° (x2)

Important Notes

• Radium strongly recommends assembly by experienced installers, and that every assembly is pressure tested before use
• PTFE hose ends are specific to PTFE hose and cannot be used with rubber hose
• Radium does not offer other PTFE hose end sizes or angles – other PTFE-specific hose ends can be used
• Assembly tools are not included

Vehicle Fitment

• Universal – see Application

Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
