Radium Denso Fuel Level Sending Adapter
Tax included. Shipping calculated at checkout
Description
Radium Denso Fuel Level Sending Adapter
Application: Mitsubishi Evo X, Subaru BRZ, Scion FR-S, Toyota GT86 / GR86, Subaru WRX 2015-2021
Part Type: Denso fuel level sender adapter
Part Number: 20-0350

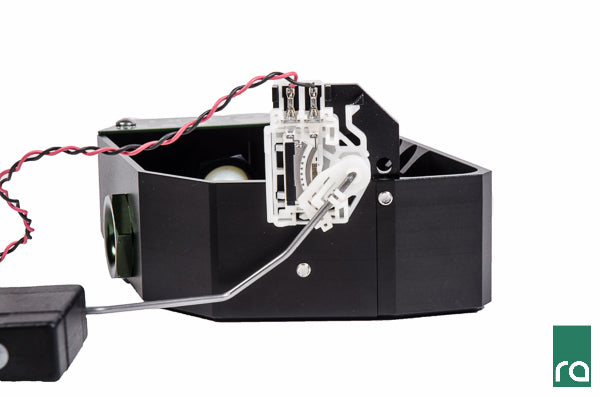

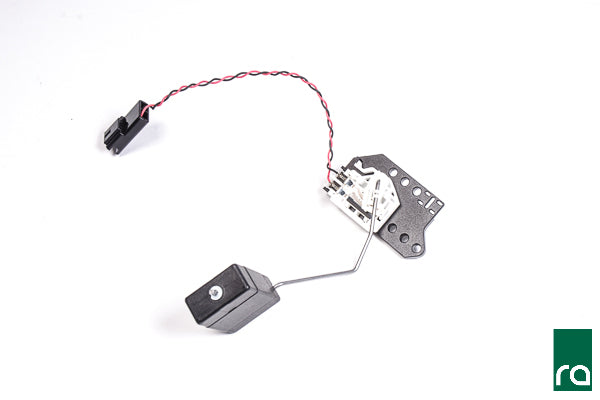

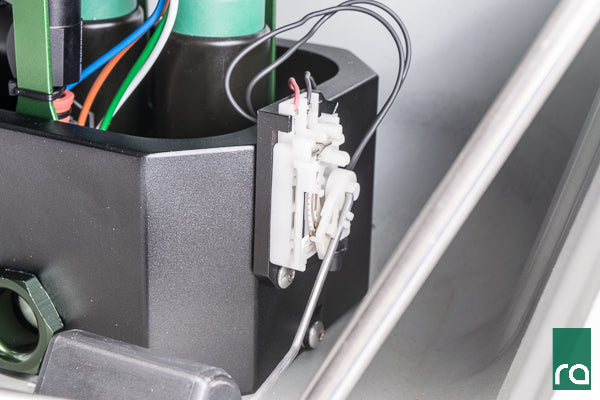

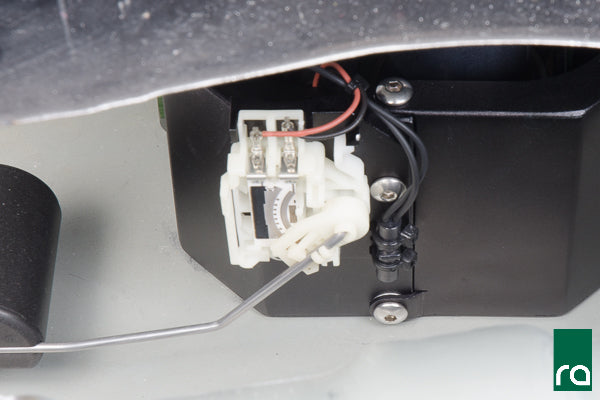

The Radium Denso Fuel Level Sender Adapter mounts a specific Denso fuel level sender (not included) to a flat surface, such as a Radium fuel pump hanger or surge tank, retaining OEM fuel gauge function. The sender simply slides down onto the adapter until a tab locks it in place.
Multiple integrated holes allow different float heights, and there is provision for securing the OEM fuel temperature sensor. The adapter is machined from 6061 aluminium and black anodised. It may also suit other vehicles – check your physical fuel level sender first.
Key Features
- Tab-Lock Installation: Sender slides on and locks into place
- Adjustable Float Height: Multiple integrated mounting holes
- Temperature Sensor Provision: Mounting for the OEM fuel temperature sensor
- Aluminium Construction: 6061 aluminium, black anodised
- Stainless Hardware: Two M5 stainless steel bolts included
What's Included

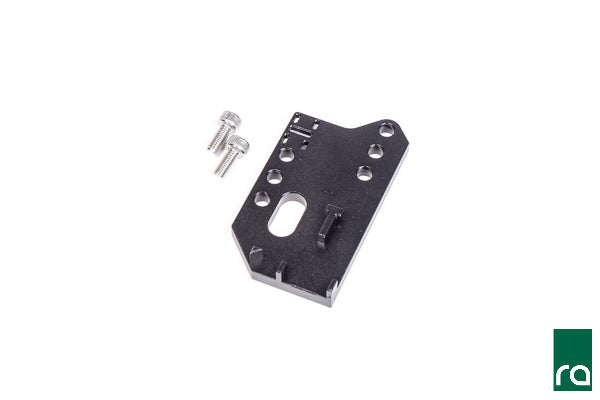

- Anodised aluminium adapter
- M5x0.8x12mm stainless steel bolts (x2)
Optional Parts
- Radium Fuel Level Sensor Adaptor, Subaru WRX VA / Forester XT SJ (20-0850) – Radium recommends this alternate part for 2015-2021 WRX pump hangers as it includes additional necessary components
Important Notes
- Denso fuel level sender is not included
- May suit other vehicles – verify your physical fuel level sender before ordering
- For 2015-2021 Subaru WRX pump hangers, Radium recommends the alternate 20-0850
Vehicle Fitment
- Mitsubishi Lancer Evolution X
- Scion FR-S
- Subaru BRZ
- Toyota GT86
- Toyota GR86
- Subaru WRX (2015-2021) – see Important Notes
Not sure if this suits your vehicle? Email sales@coore.com.au and our team will confirm fitment.
